category:
Rigging & Lifting Products
country_of_origin:
USA
manufacturer:
Block Division
mpn:
03078-5/16-2
subcategory:
Pulleys
type:
Swivel Hook Pulleys
weight:
2.25
Product Description

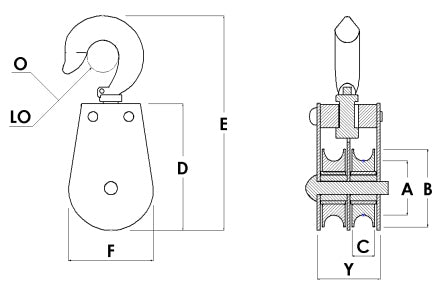

Block Division - 03078-5/16-2 3″ Swivel Hook pulley block with center removable pin/snatch, industrial quality, forged hook, double, 7/16 wide machined sheave; oil impregnated bushing grooved for 5/16″ wire rope. Clear zinc finish; safe work load of 800 lbs; weight 2.25 lbs.Options include: change the center rivet to be a removable pin/snatch; add a steel latch; change the fastener located in the center of the pulley from a rivet to a bolt (F1); change the 2 fasteners located at the top from rivets to bolts (F2); change all 3 fasteners from rivets to bolts (F3).Dimensions in inches are approximate.
| Max Cable | 5/16" |
| Working Load | 800 LBS |
| A | 2-1/2" |
| B | 3" |
| C | 7/16" |
| D | 4-1/16" |
| E | 6-1/4" |
| F | 3-1/8" |
| LO | 1/2" |
| O | 5/8" |
| Y | 1-7/32" |
| Weight Each | 2.25 LBS |
