category:
Rigging & Lifting Products
country_of_origin:
USA
manufacturer:
Block Division
mpn:
03568-2-DM
subcategory:
Pulleys
type:
Fixed Eye Pulleys
weight:
5.05
Product Description

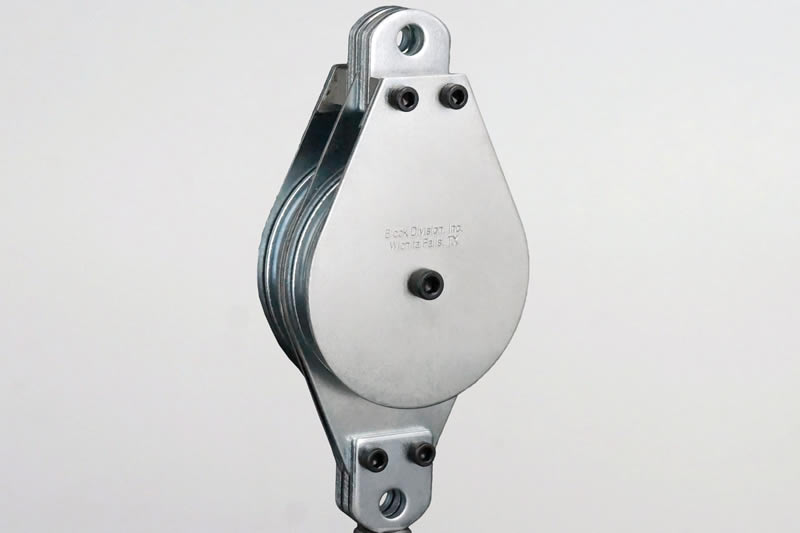

Block Division - 03568-2-DM 3-1/2″ Fixed eye pulley block with deadman eye, industrial quality, 2 (double) 5/8 inch wide machined sheaves with oil impregnated bushing grooved for 5/16 inch wire rope. Clear zinc finish; safe work load of 1550 lbs; weight 5.05 lbs.Dimensions in inches are approximate.

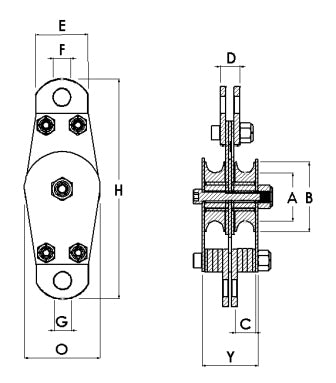

| Max Cable | 5/16" |
| Working Load | 1550 LBS |
| A | 3" |
| B | 3-1/2" |
| C | 5/8" |
| D | 3/4" |
| E | 1-1/2" |
| F | 9/16" |
| G | 9/16" |
| H | 9-1/4" |
| O | 3-3/14" |
| Y | 1-13/16" |
| Weight Each | 5.05 LBS |
