category:
Rigging & Lifting Products
country_of_origin:
USA
manufacturer:
Block Division
mpn:
04068-2-SN
subcategory:
Pulleys
type:
Fixed Eye Pulleys
weight:
6.10
Product Description
Block Division - 04068-2-SN 4″ Fixed Eye pulley block with removable snatch pin, 1700 lbs working load capacity, two 5/8″ wide machined sheaves with oil impregnated bushing, grooved for 3/8″ maximum cable or wire rope diameter; 9/16″ inch interior forged eye diameter; zinc electroplated finish; heavy duty, industrial quality; weight 6.1 lbs.

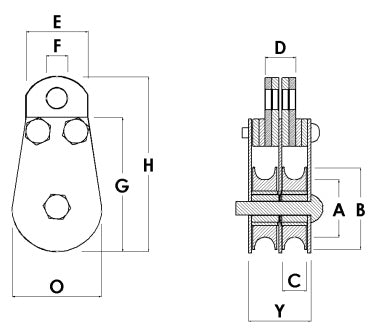

| Max Cable | 3/8" |
| Working Load | 1700 LBS |
| A | 3-1/4" |
| B | 4" |
| C | 5/8" |
| D | 5/16" |
| E | 1-1/2" |
| F | 9/16" |
| G | 6" |
| H | 7-1/4" |
| O | 4-1/4" |
| Y | 1-13/16" |
| Weight Each | 6.10 LBS |
