category:
Rigging & Lifting Products
country_of_origin:
USA
manufacturer:
Block Division
mpn:
05058-SS
subcategory:
Pulleys
type:
Flat Mount Pulleys
weight:
4.60
Product Description
Block Division - 05058-SS 5″ Flat mount pulley block, industrial quality, 5/8 inch machined sheave; oil impregnated bushing grooved for 3/8″ wire rope. Stainless steel finish; safe work load of 1850 lbs; weight 4.60 lbs. The mounting hole size is 3/16″. Options include: change the center rivet to be a removable pin/snatch; change the fastener located in the center of the pulley from a rivet to a bolt (F1).Dimensions in inches are approximate.

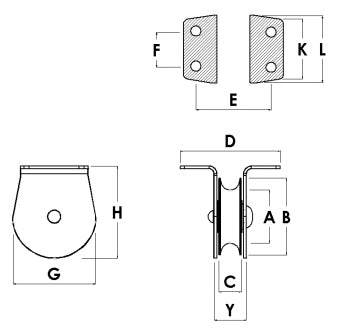

| Max Cable | 3/8" |
| Working Load | 1850 LBS |
| A | 4-1/4" |
| B | 5" |
| C | 5/8" |
| D | 3-9/16" |
| E | 2-5/8" |
| F | 1" |
| G | 5-1/4" |
| H | 5-15/16" |
| K | 1-1/2" |
| L | 2-3/4" |
| Weight Each | 4.60 LBS |
