category:
Rigging & Lifting Products
country_of_origin:
USA
manufacturer:
Block Division
mpn:
05068-3
subcategory:
Pulleys
type:
Fixed Eye Pulleys
weight:
9.05
Product Description
Block Division - 05068-3 5″ Fixed eye pulley block, industrial quality, forged eye, triple 5/8 inch machined sheave; oil impregnated bushing grooved for 3/8″ wire ropes; locking nuts and bolts; clear galvenized zinc finish; safe work load of 1850 lbs; weight 13.05 lbs.Dimensions in inches are approximate.

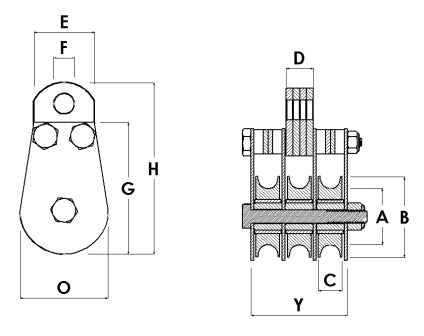

| Max Cable | 3/8" |
| Working Load | 1850 LBS |
| A | 4-1/4" |
| B | 5" |
| C | 5/8" |
| D | 5/16" |
| E | 1-1/2" |
| F | 9/16" |
| G | 7" |
| H | 8-1/4" |
| O | 5-1/4" |
| Y | 2-2/3" |
| Weight Each | 9.05 LBS |
