category:
Rigging & Lifting Products
country_of_origin:
USA
manufacturer:
Block Division
mpn:
05078-2
subcategory:
Pulleys
type:
Swivel Hook Pulleys
weight:
9.20
Product Description

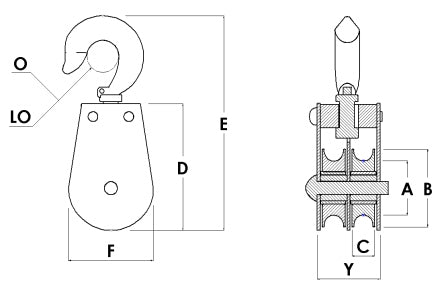

Block Division - 05078-2 5″ Swivel Hook pulley block, industrial quality, forged hook, double 5/8 inch machined sheave; oil impregnated bushing grooved for 3/8″ wire ropes. Clear zinc finish; safe work load of 1850 lbs; weight 9.2 lbs.Options include: change the center rivet to be a removable pin/snatch; add a steel latch; change the fastener located in the center of the pulley from a rivet to a bolt (F1); change the 2 fasteners located at the top from rivets to bolts (F2); change all 3 fasteners from rivets to bolts (F3).Dimensions in inches are approximate.
| Max Cable | 3/8" |
| Working Load | 1850 LBS |
| A | 4-1/4" |
| B | 5" |
| C | 5/8" |
| D | 7" |
| E | 10" |
| F | 5-1/4" |
| LO | 13/16" |
| O | 15/16" |
| Y | 1-13/16" |
| Weight Each | 9.20 LBS |
