category:
Rigging & Lifting Products
country_of_origin:
USA
manufacturer:
Block Division
mpn:
05078-3
subcategory:
Pulleys
type:
Swivel Hook Pulleys
weight:
13.10
Product Description

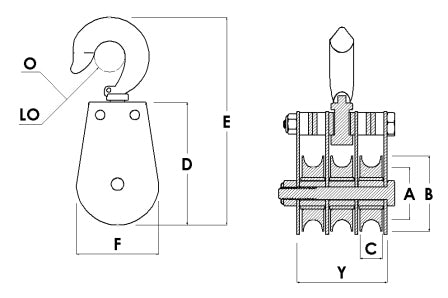

Block Division - 05078-3 5″ Swivel Hook pulley block, industrial quality, forged hook, triple 5/8 inch machined sheave; oil impregnated bushing grooved for 3/8″ wire ropes; locking nuts and bolts; Clear zinc finish; safe work load of 1850 lbs; weight 13.10 lbs. Optional steel latch available.Dimensions in inches are approximate.
| Max Cable | 3/8" |
| Working Load | 1850 LBS |
| A | 4-1/4" |
| B | 5" |
| C | 5/8" |
| D | 7" |
| E | 10" |
| F | 5-1/4" |
| LO | 15/16" |
| O | 13/16" |
| Y | 2-2/3" |
| Weight Each | 13.10 LBS |
