category:
Rigging & Lifting Products
country_of_origin:
USA
manufacturer:
Block Division
mpn:
1548
subcategory:
Pulleys
type:
Swivel Eye Pulleys
weight:
0.50
Product Description

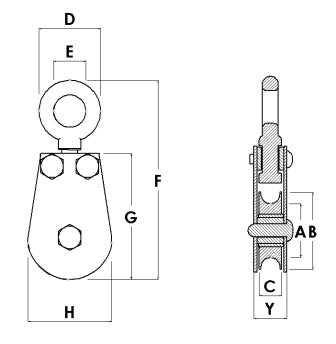

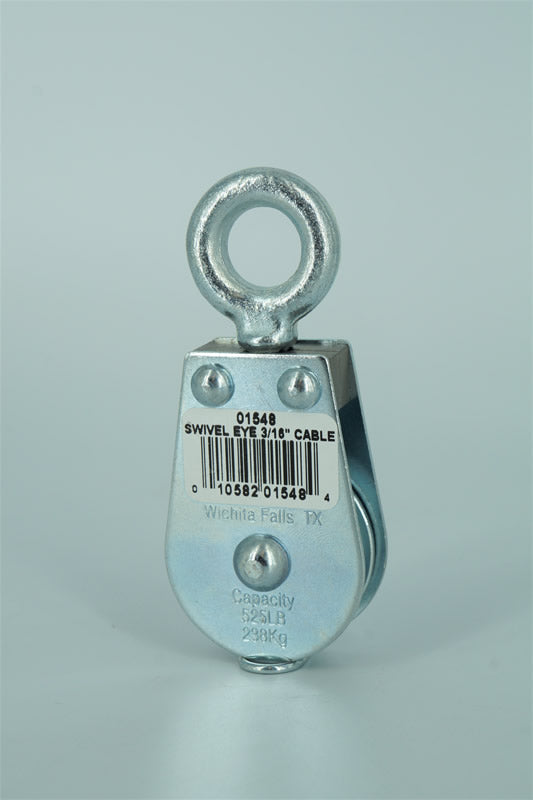

Block Division - 1548 Swivel eye pulley block, 525 lbs working load capacity, 1-1/2” sheave outside diameter, 7/16 wide machined sheave with oil impregnated bushing grooved for 3/16 inch maximum cable or wire rope diameter; 5/8 inch interior eye diameter; the swivel eye pulley block is zinc electroplated finish; heavy duty, industrial quality; weight 0.50 lb. Options include:Change the fastener located in the center of the pulley from a rivet to a bolt (F1); Change the 2 fasteners located at the top from rivets to bolts (F2); Change all 3 fasteners from rivets to bolts (F3).Dimensions in inches are approximate.
| Max Cable | 3/16" |
| Working Load | 525 LBS |
| A | 1" |
| B | 1-1/2" |
| C | 7/16" |
| D | 1-1/4" |
| E | 5/8" |
| F | 3-13/16" |
| G | 2-7/16" |
| H | 1-5/8" |
| Y | 5/8" |
| Weight Each | .50 LBS |
