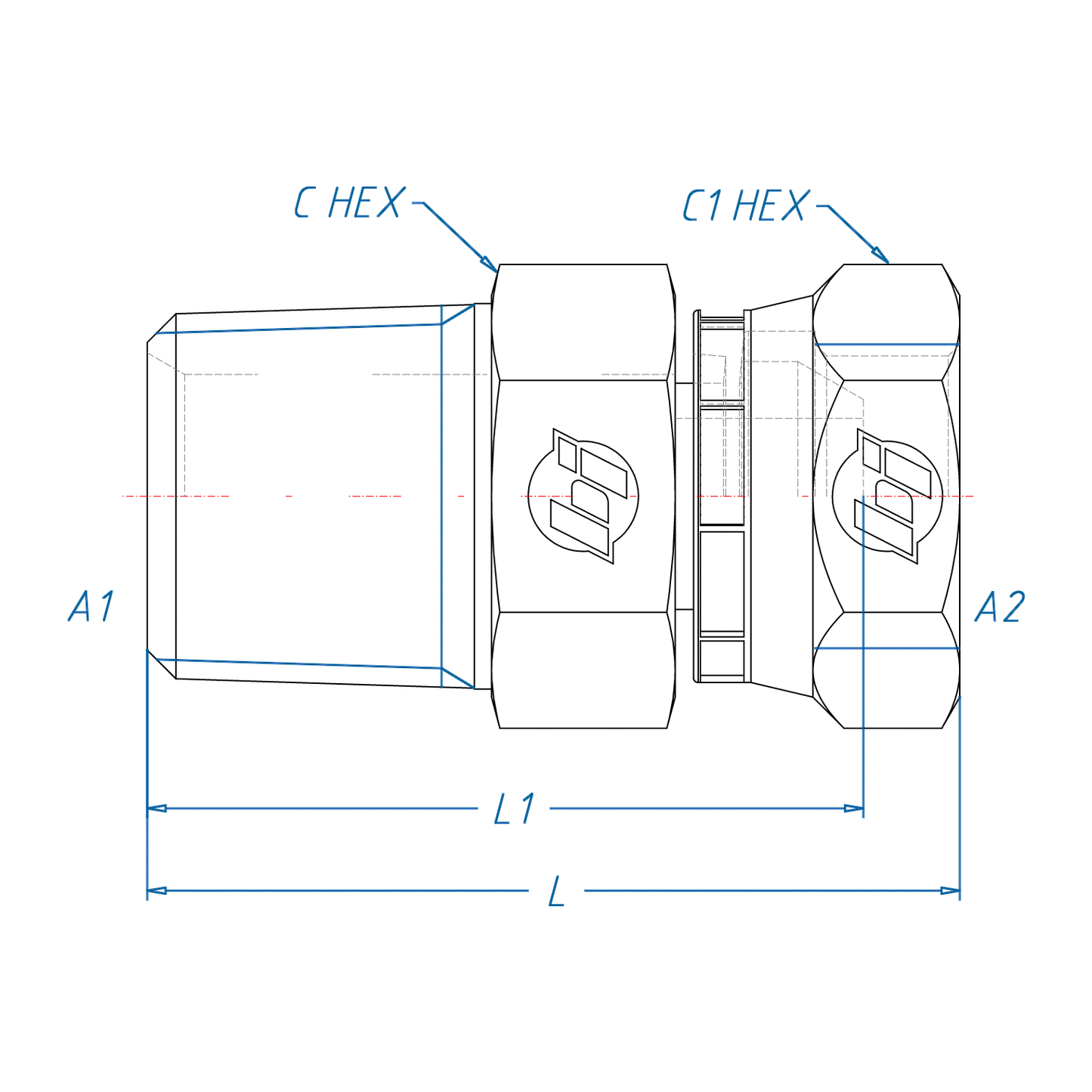

Brennan - 1404-02-04-SS MP-FPS STRAIGHT
Additional Information
THREAD B1 TYPEMALE NPTF
THREAD B1 SIZE1/8-27
THREAD B1 DRILL IN0.188
THREAD B1 SPECIFICATIONSAE J476
THREAD B2 TYPEFEMALE NPSM SWIVEL
THREAD B2 SIZE1/4-18
THREAD B2 DRILL IN0.21
THREAD B2 SPECIFICATIONSAE J514
BODY HEX IN0.688
C HEX 1 IN0.688
OVERALL LENGTH L IN1.240
OVERALL LENGTH L2 IN1.050
SHAPESTRAIGHT
BODY MATERIALSTAINLESS STEEL
RAW MATERIAL TYPESTRAIGHT STAINLESS STEEL
WEIGHT LBS0.1125
MAXIMUM DYNAMIC PRESSURE PSI6,000
CALIFORNIA RESIDENTSPROP-65 WARNING
CUBIC INCH SPACE L X W X H0.587
ConnectionsNPT
ShapeStraight
CategoryHydraulics & Pneumatics & Plumbing
Country of originChina and Other Countries
ManufacturerBrennan
Mpn1404-02-04-SS
SubcategoryFittings/Hoses/Adapters
TypeTube Fittings and Adapters
