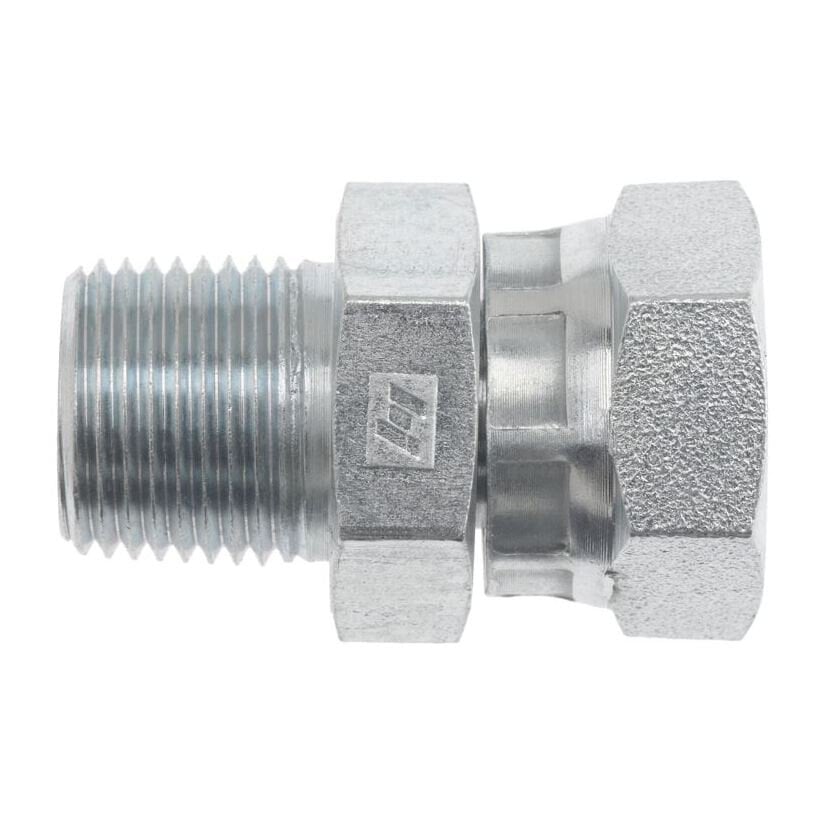

Brennan - 1404-24-24-SS MP-FPS STRAIGHT
Additional Information
THREAD B1 TYPEMALE NPTF
THREAD B1 SIZE1-1/2-11-1/2
THREAD B1 DRILL IN1.500
THREAD B1 SPECIFICATIONSAE J476
THREAD B2 TYPEFEMALE NPSM SWIVEL
THREAD B2 SIZE1-1/2-11-1/2
THREAD B2 DRILL IN1.25
THREAD B2 SPECIFICATIONSAE J514

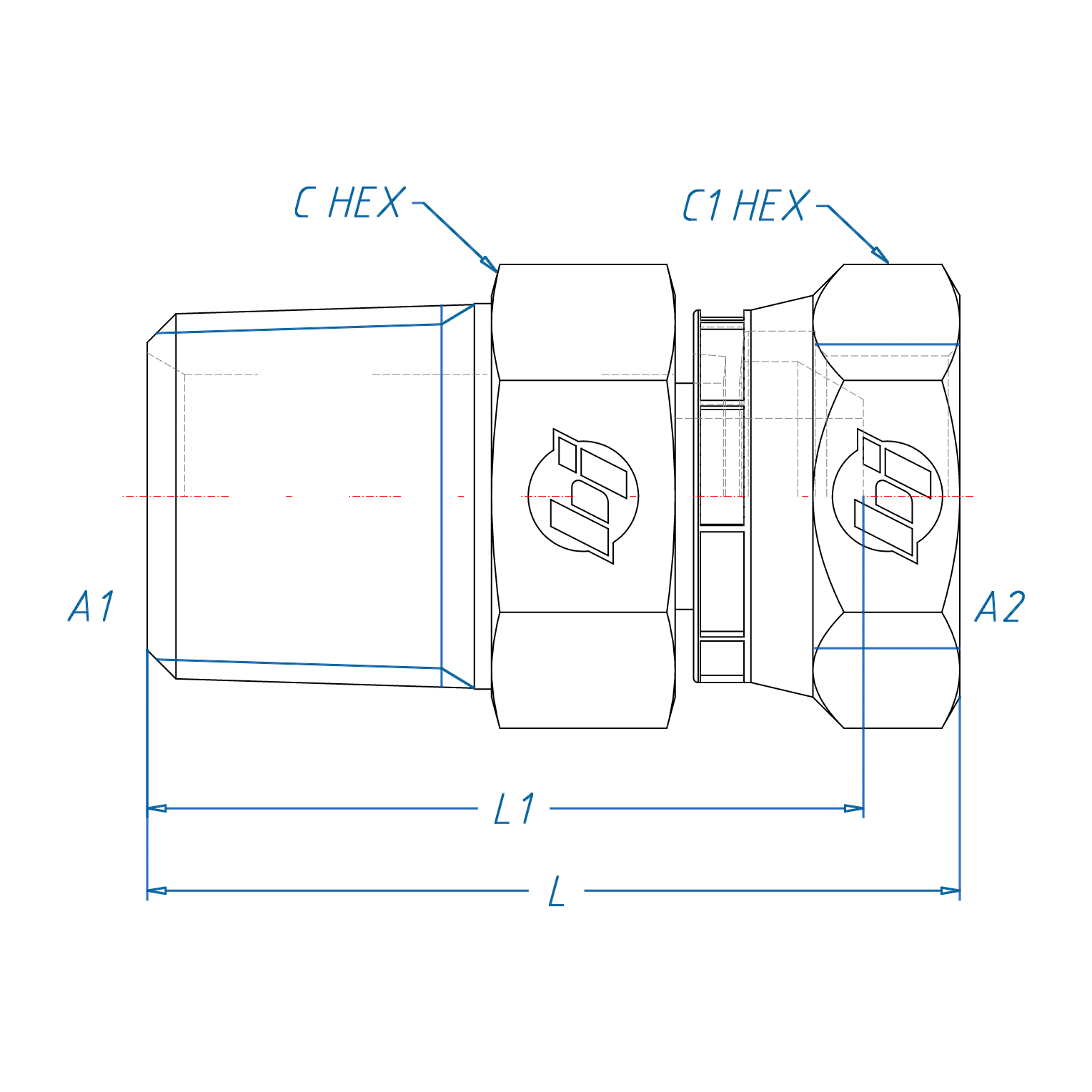

BODY HEX IN2.125
C HEX 1 IN2.125
OVERALL LENGTH L IN2.690
OVERALL LENGTH L2 IN2.270
SHAPESTRAIGHT
BODY MATERIALSTAINLESS STEEL
RAW MATERIAL TYPESTRAIGHT STAINLESS STEEL
WEIGHT LBS1.2687
MAXIMUM DYNAMIC PRESSURE PSI2,000
CALIFORNIA RESIDENTSPROP-65 WARNING
CUBIC INCH SPACE L X W X H12.147
ConnectionsNPT
ShapeStraight
CategoryHydraulics & Pneumatics & Plumbing
Country of originChina and Other Countries
ManufacturerBrennan
Mpn1404-24-24-SS
SubcategoryFittings/Hoses/Adapters
TypeTube Fittings and Adapters
