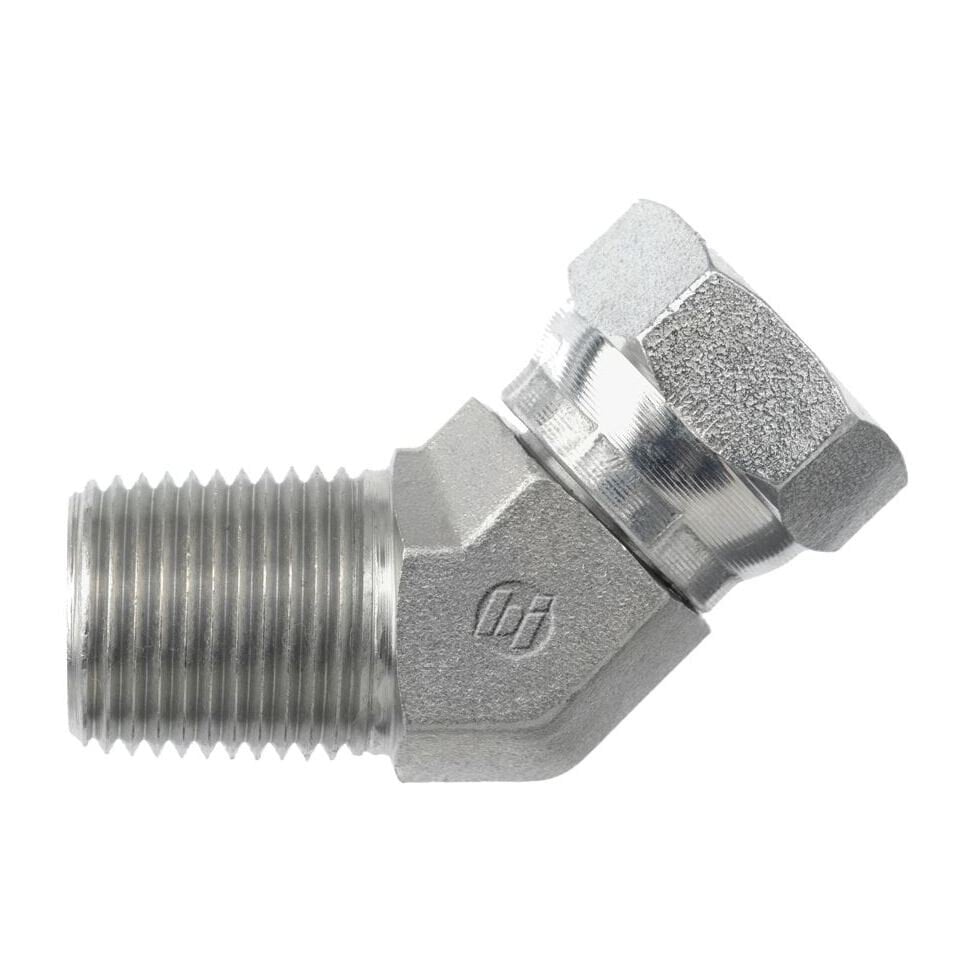

Brennan - 1503-08-06-FG MP-FPS 45 EBLOW
Additional Information
THREAD B1 TYPEMALE NPTF
THREAD B1 SIZE1/2-14
THREAD B1 DRILL IN0.531
THREAD B1 SPECIFICATIONSAE J476
THREAD B2 TYPEFEMALE NPSM SWIVEL
THREAD B2 SIZE3/8-18
THREAD B2 DRILL IN0.340
THREAD B2 SPECIFICATIONSAE J514
BODY HEX IN0.875
C HEX 1 IN0.875
OVERALL LENGTH L IN1.170
CENTERLINE LENGTH M IN1.020
CENTERLINE LENGTH M2 IN0.810
SHAPE45 DEGREE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.225
MAXIMUM DYNAMIC PRESSURE PSI6,000
CALIFORNIA RESIDENTSPROP-65 WARNING
CUBIC INCH SPACE L X W X H2.793
ConnectionsNPT
ShapeElbow
CategoryHydraulics & Pneumatics & Plumbing
Country of originChina and Other Countries
ManufacturerBrennan
Mpn1503-08-06-FG
SubcategoryFittings/Hoses/Adapters
TypeTube Fittings and Adapters
