category:
Hydraulics & Pneumatics & Plumbing
country_of_origin:
China and Other Countries
manufacturer:
Brennan
mpn:
1603-24-24-24-FG
subcategory:
Fittings/Hoses/Adapters
type:
Tube Fittings and Adapters
Product Description

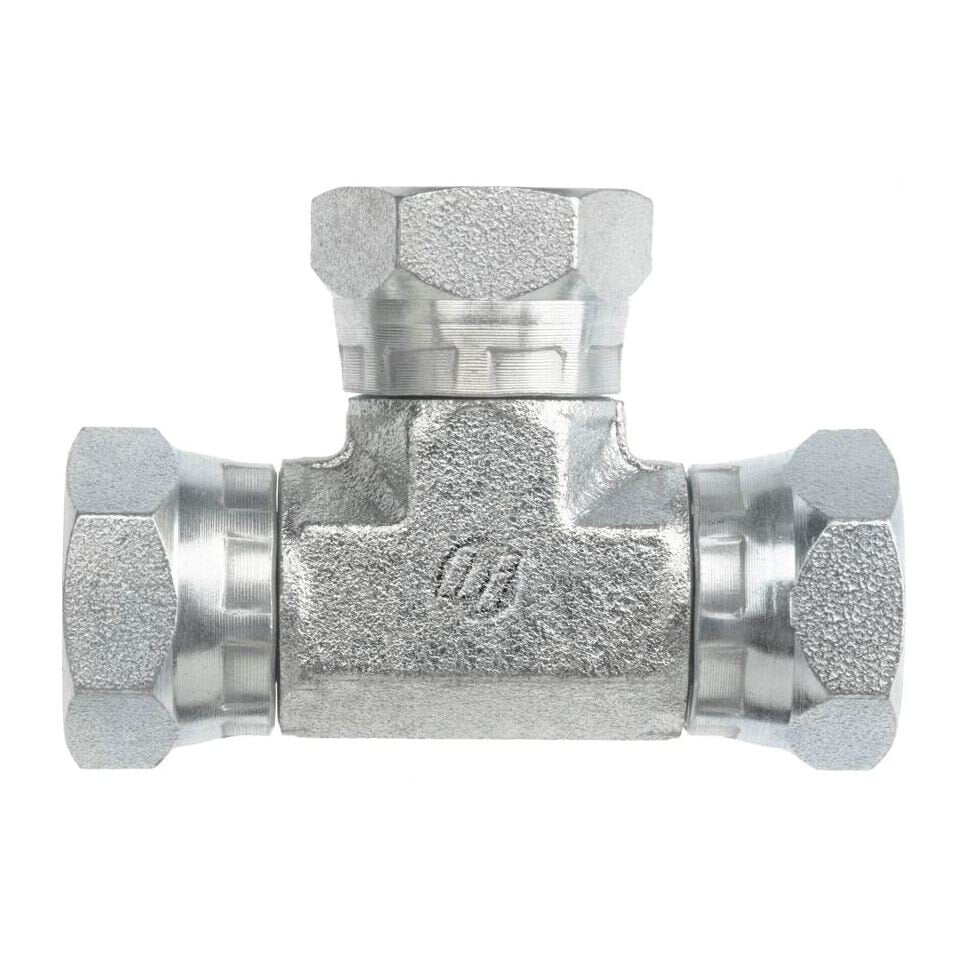

Brennan - 1603-24-24-24-FG FP-FPS-FPS Tee
Additional Information
THREAD B1 TYPEFEMALE NPSM SWIVEL
THREAD B1 SIZE1 1/2-11 1/2
THREAD B1 DRILL IN1.250
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEFEMALE NPSM SWIVEL
THREAD B2 SIZE1 1/2-11 1/2
THREAD B2 DRILL IN1.250
THREAD B2 SPECIFICATIONSAE J514
THREAD 3 TYPEFEMALE NPSM SWIVEL
THREAD 3 SIZE1 1/2-11 1/2
THREAD 3 DRILL IN1.250
THREAD 3 SPECIFICATIONSAE J514
BODY HEX IN2.125
C HEX 1 IN2.125
C HEX 2 IN2.125
C HEX 3 IN2.125
OVERALL LENGTH L IN4.620
OVERALL LENGTH L2 IN2.310
CENTERLINE LENGTH M IN2.310
CENTERLINE LENGTH M2 IN1.890
SHAPETEE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS2.666
CALIFORNIA RESIDENTSPROP-65 WARNING
ConnectionsNPT
ShapeTee
