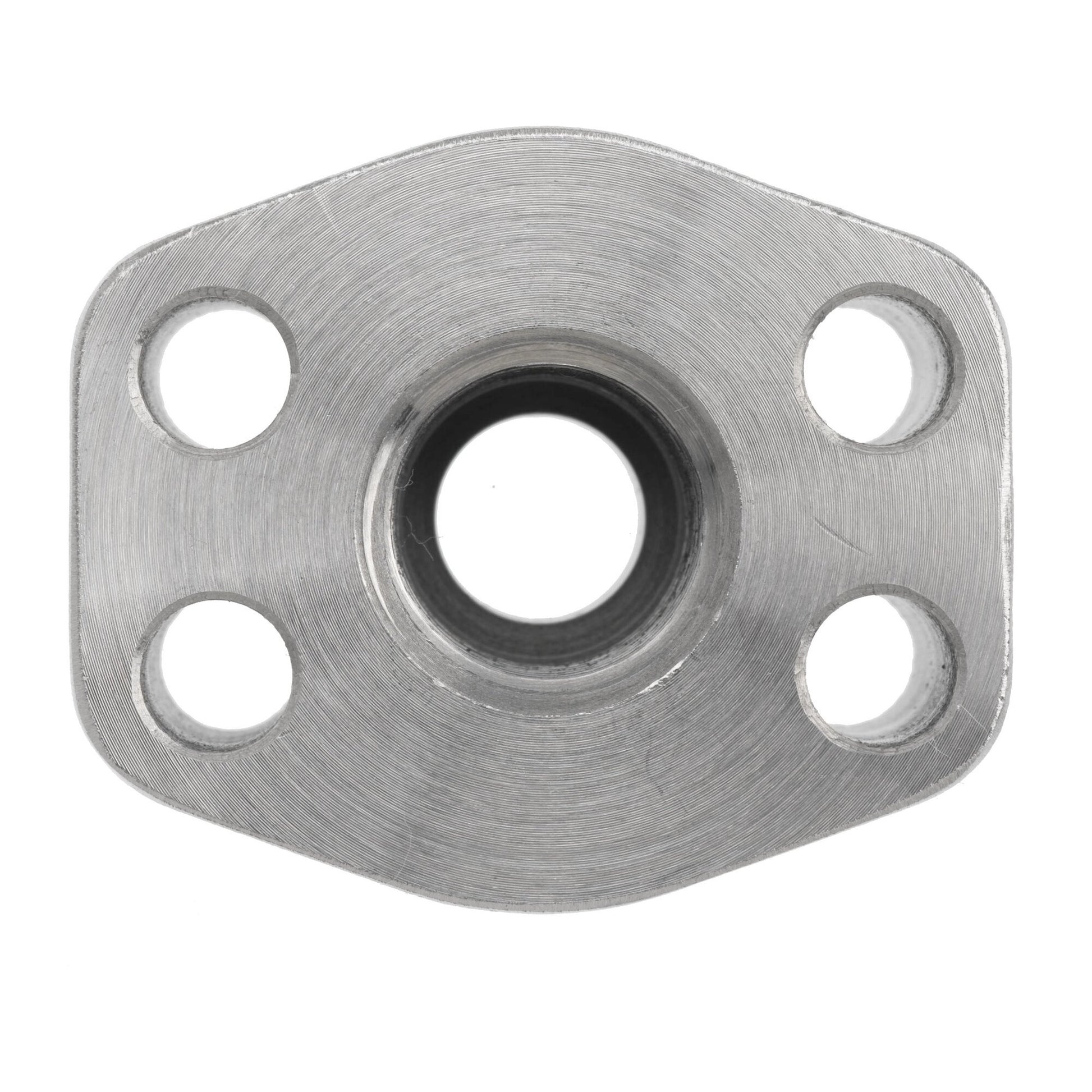

Brennan - 1927-61-08-08 NPTF Port Block – Code 61 (O-Ring Face)

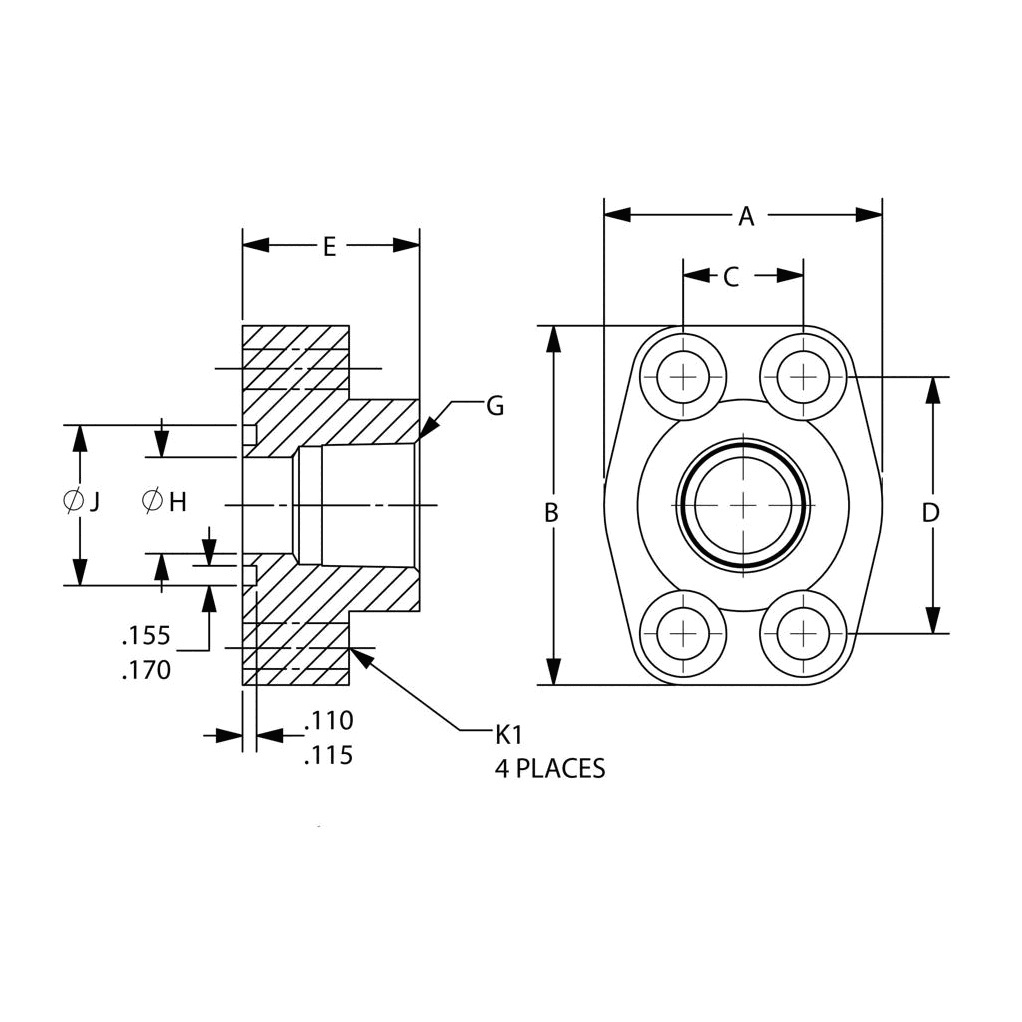

Additional Information
PIPE SIZE1/2
FLANGE SIZE1/2
A1.82
B2.17
C0.688
D1.500
E1.25
G NPTF1/2-14
H0.50
J MIN1.000
J MAX1.005
K1 DRILL0.344
K2 THD.5/16-18
MATERIALSTEEL
ConnectionsNPT, Flange
ShapeOther
CategoryHydraulics & Pneumatics & Plumbing
Country of originChina and Other Countries
ManufacturerBrennan
Mpn1927-61-08-08
SubcategoryFittings/Hoses/Adapters
TypeFlange Fittings
