category:
Hydraulics & Pneumatics & Plumbing
country_of_origin:
China and Other Countries
manufacturer:
Brennan
mpn:
1927-61-20-20
subcategory:
Fittings/Hoses/Adapters
type:
Flange Fittings
Product Description

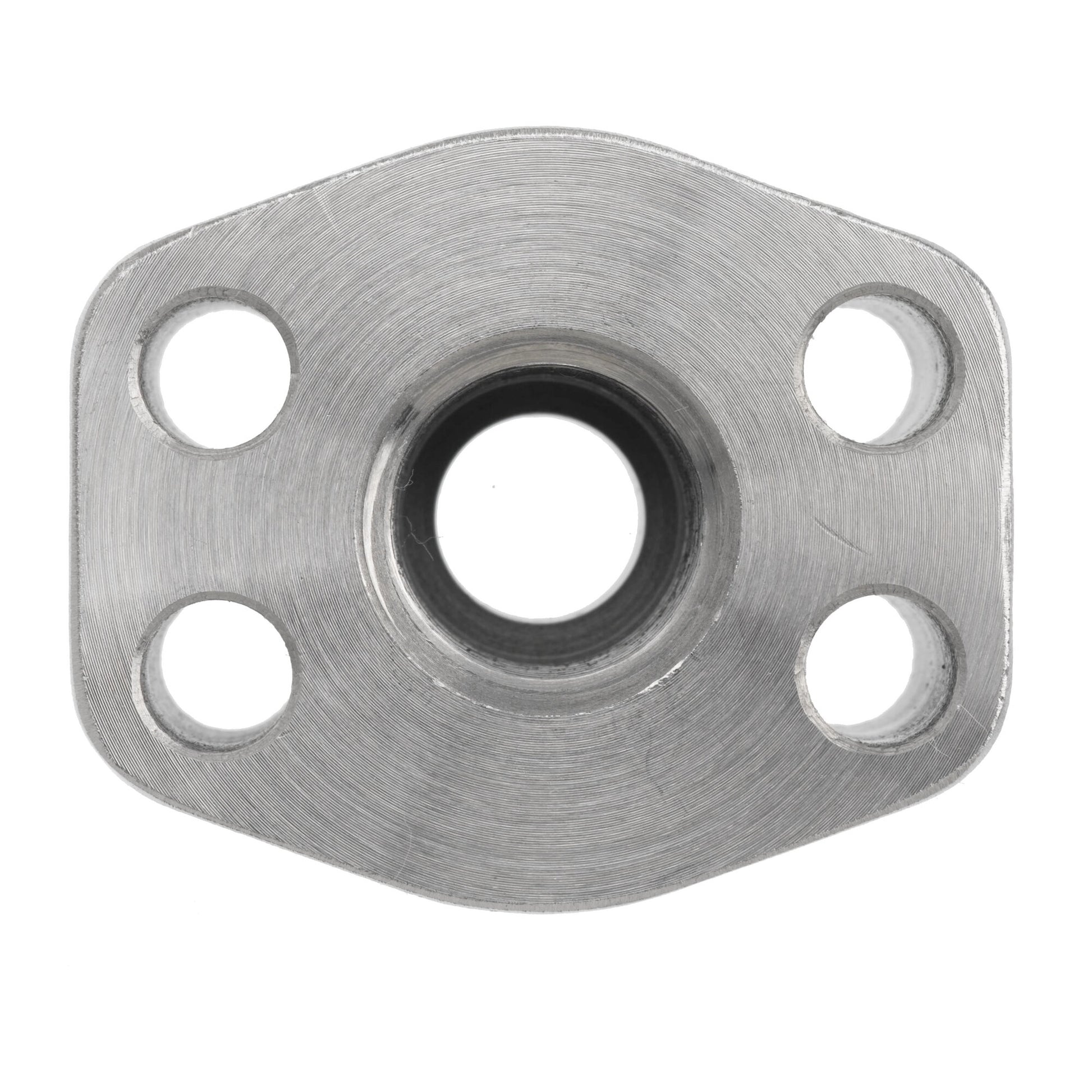

Brennan - 1927-61-20-20 NPTF Port Block – Code 61 (O-Ring Face)
Additional Information

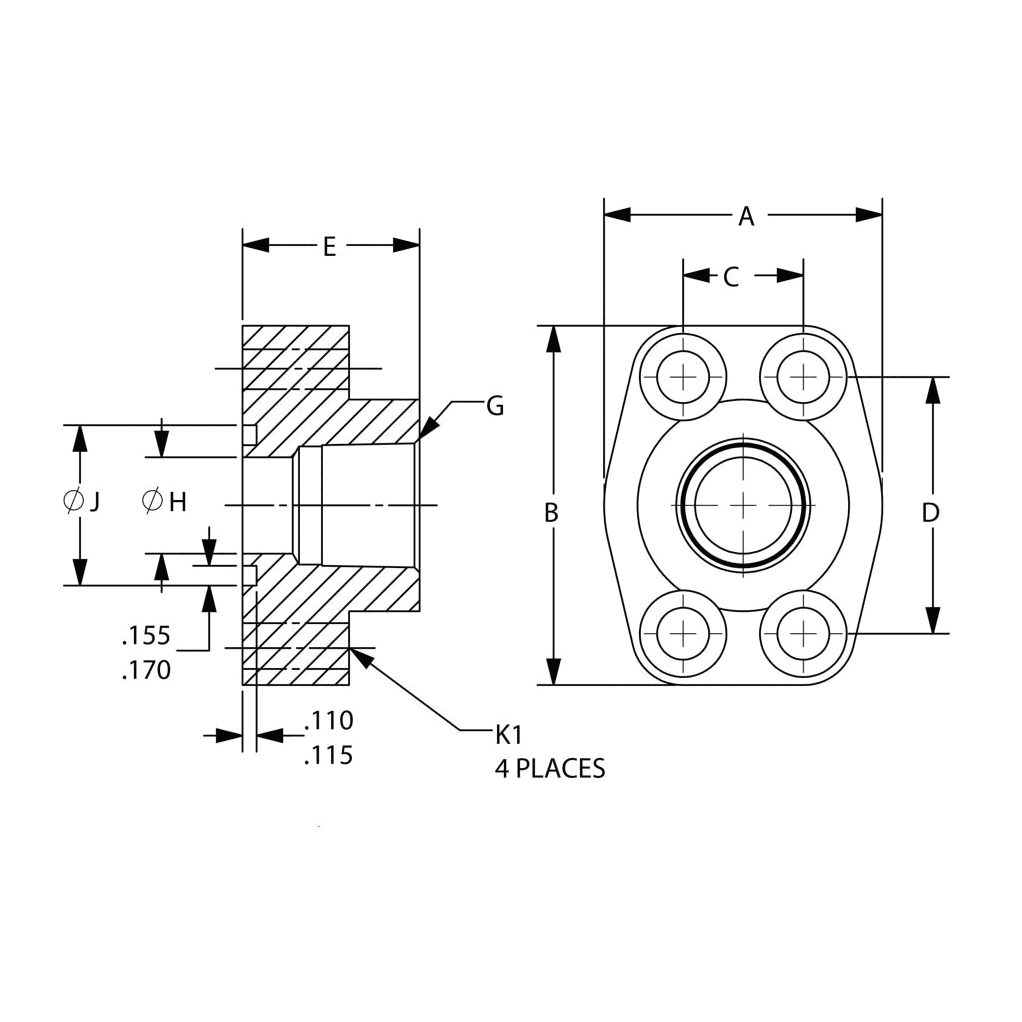

PIPE SIZE1 1/4
FLANGE SIZE1 1/4
A2.88
B3.25
C1.188
D2.312
E1.50
G NPTF1 1/4-11 1/2
H1.25
J MIN1.750
J MAX1.755
K1 DRILL0.469
K2 THD.7/16-14
MATERIALSTEEL
ConnectionsNPT, Flange
ShapeOther
