Product Description

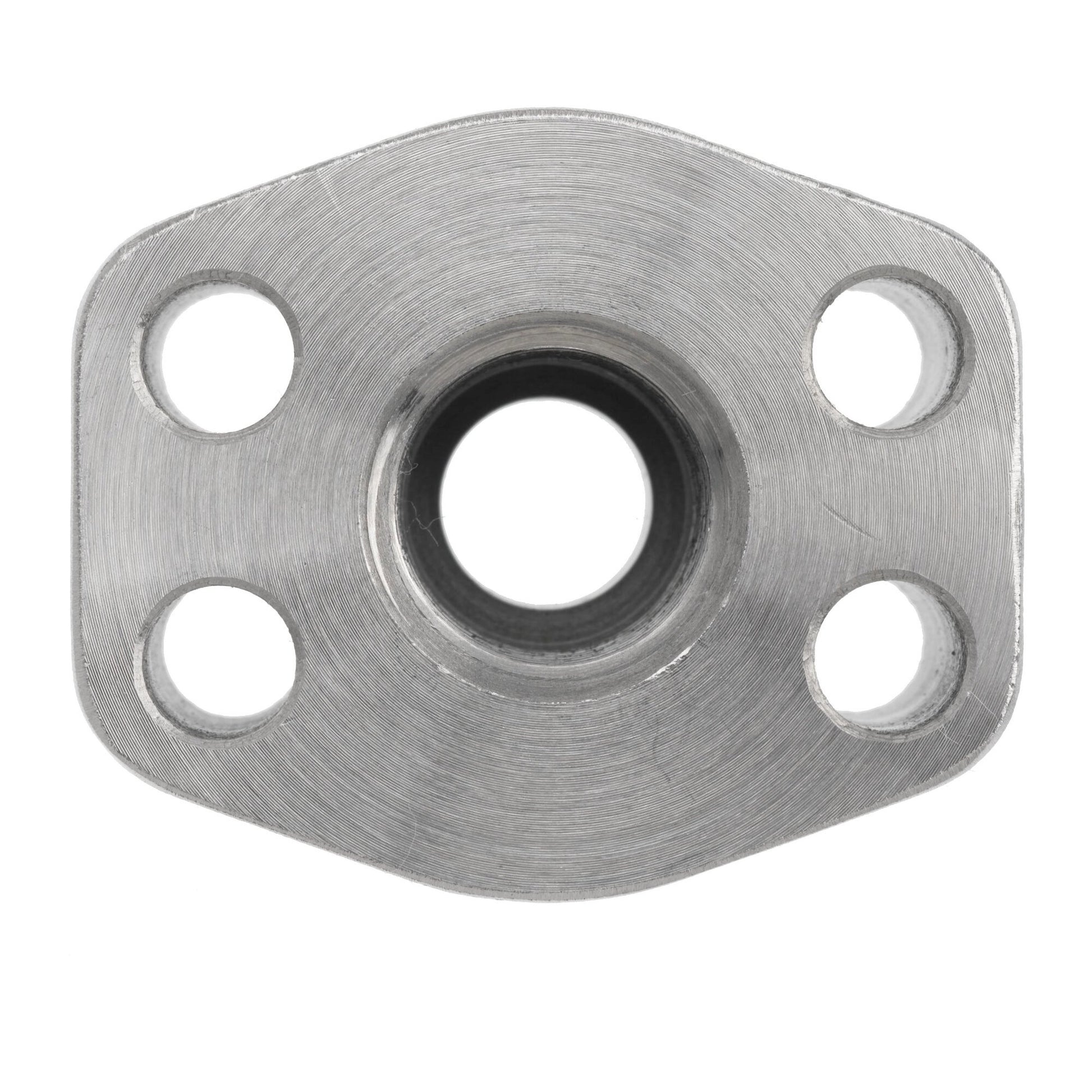

Brennan - 1927-62-08-08 NPTF Port Block – Code 62 (O-Ring Face)
Additional Information

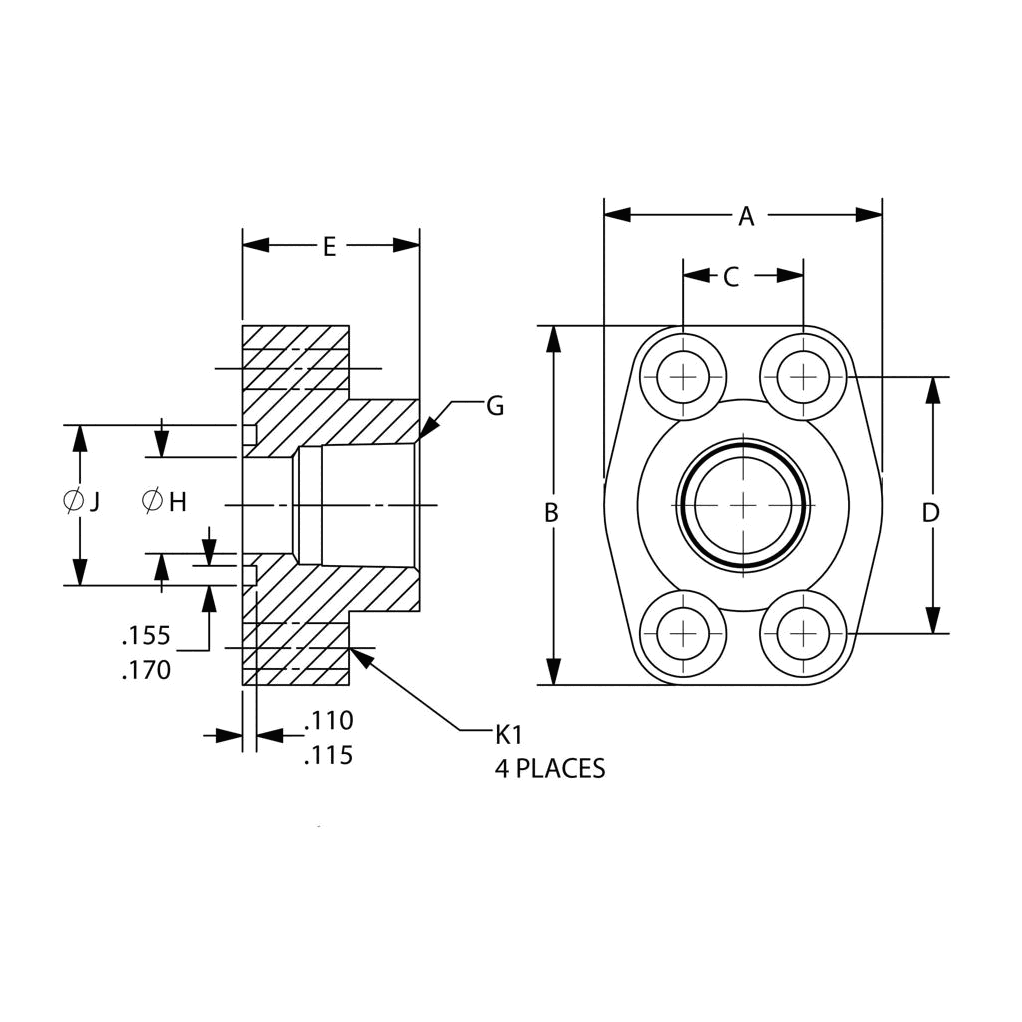

PIPE SIZE1/2
FLANGE SIZE1/2
A1.94
B2.30
C0.718
D1.594
E1.25
G NPTF1/2-14
H0.50
J MIN1.000
J MAX1.005
K1 DRILL0.344
K2 THD.5/16-18
MATERIALSTEEL
ConnectionsNPT, Flange
ShapeOther
