Brennan 1928-61-32-32 32Fp-32Cd61 Flat Face Flg (W/O O-Ring Grv)

Brennan 1928-61-32-32 32Fp-32Cd61 Flat Face Flg (W/O O-Ring Grv)

Dropship

Get it by Sat, Feb 07 - Thu, Feb 12

SKU kpi163-1928-61-32-32

$54.00 USD
$54.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Hydraulics & Pneumatics & Plumbing
country_of_origin: China and Other Countries
manufacturer: Brennan
mpn: 1928-61-32-32
subcategory: Fittings/Hoses/Adapters
type: Flange Fittings

Product Description

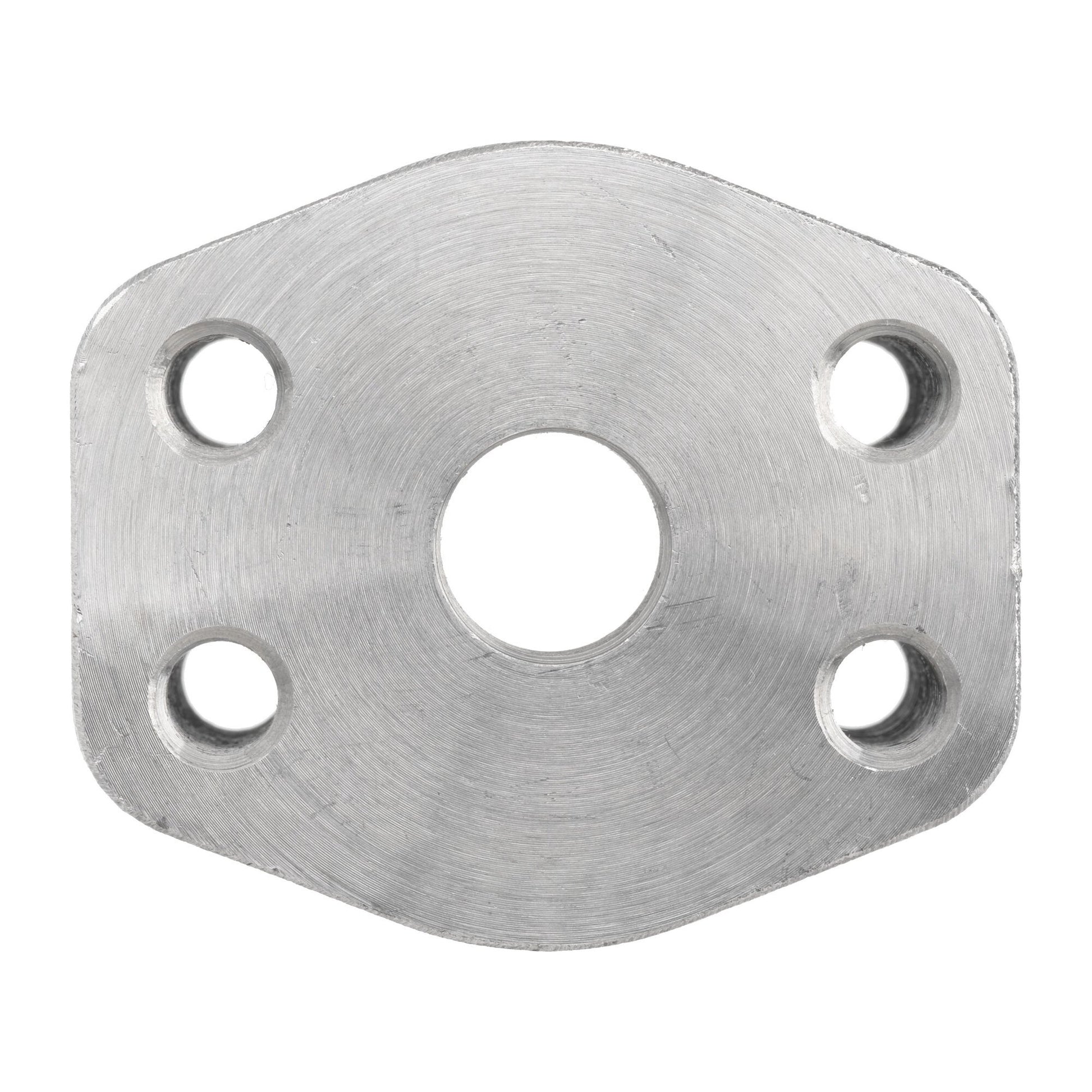

Brennan - 1928-61-32-32 NPTF Port Block – Code 61 (Flat Face)

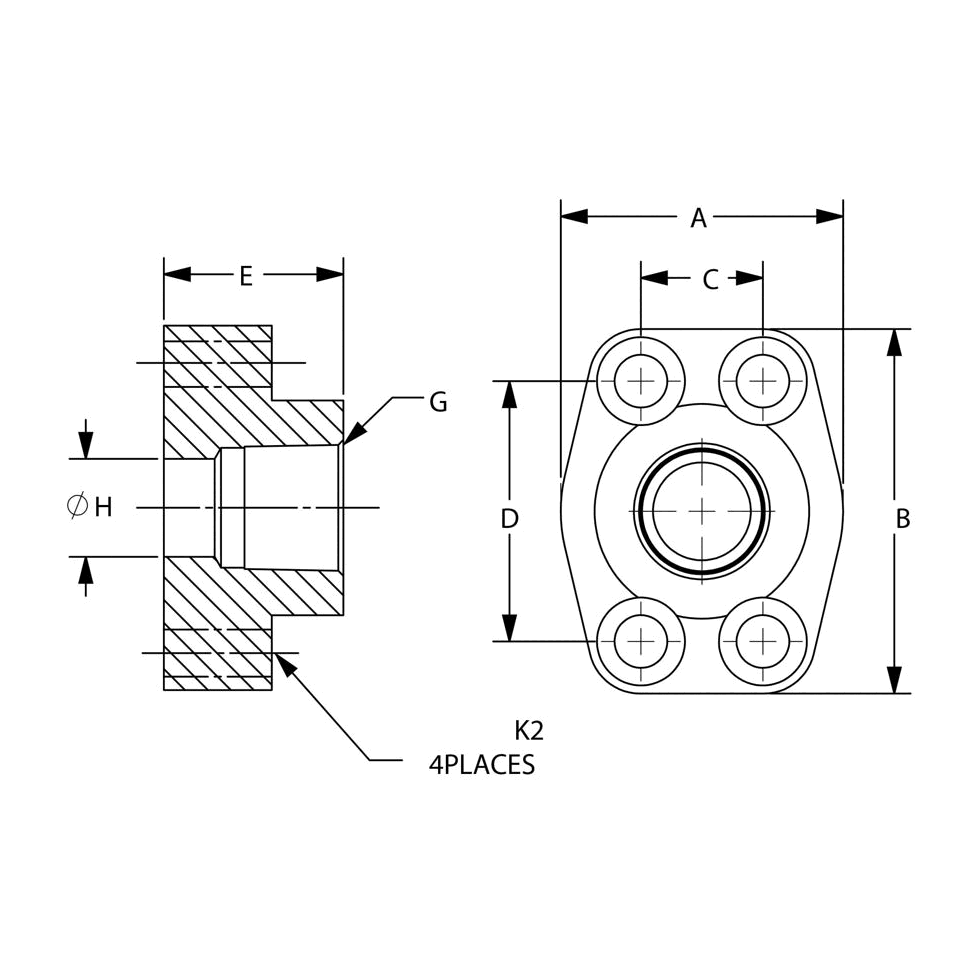

Additional Information

PIPE SIZE2
FLANGE SIZE2
A3.81
B4.13
C1.688
D3.062
E1.75
G NPTF2-11 1/2
H2.00
J MIN2.490
J MAX2.500
K1 DRILL0.531
K2 THD.1/2-13
MATERIALSTEEL
ConnectionsNPT, Flange
ShapeOther
