category:
Hydraulics & Pneumatics & Plumbing
country_of_origin:
China and Other Countries
manufacturer:
Brennan
mpn:
1929-61-12-12
subcategory:
Fittings/Hoses/Adapters
type:
Flange Fittings
Product Description

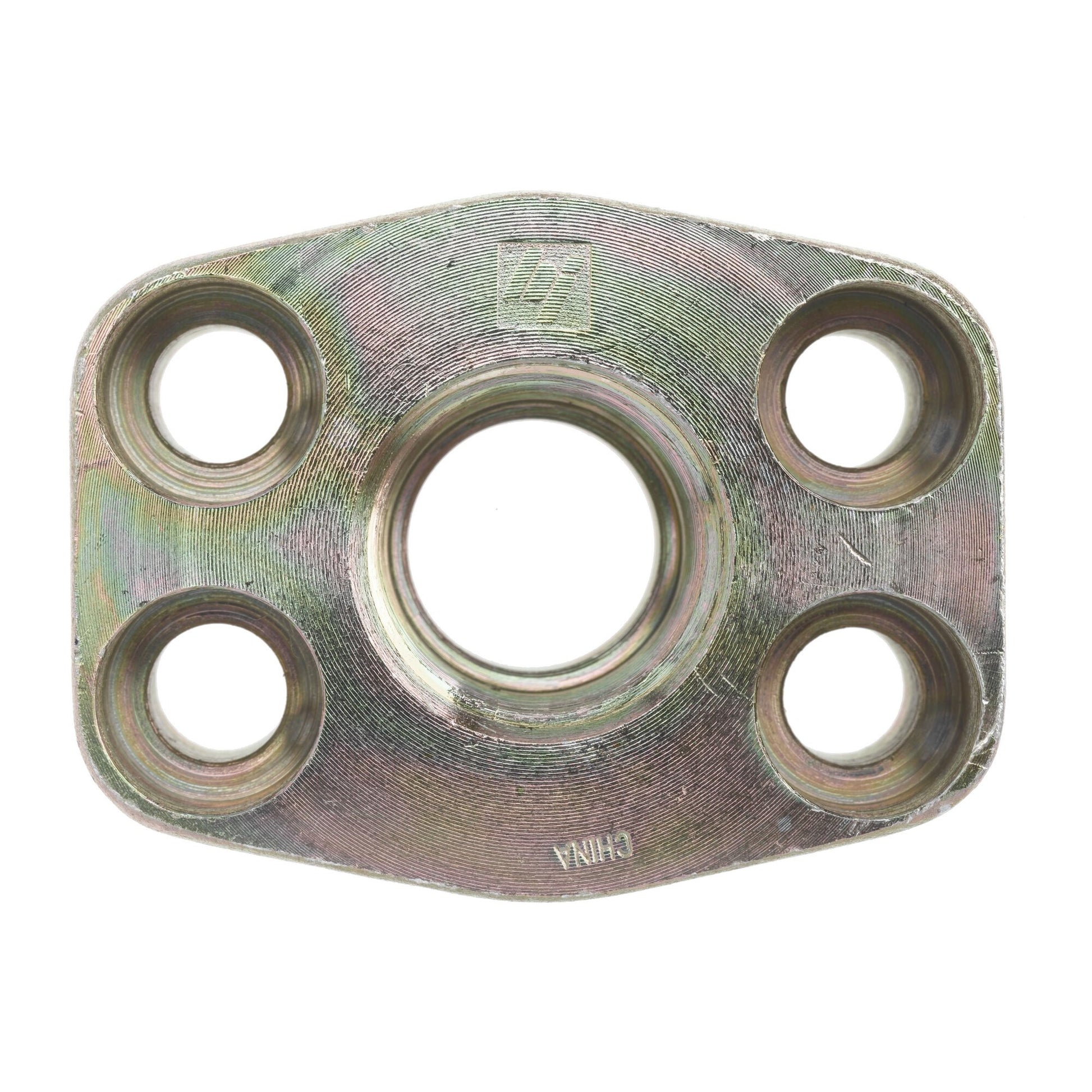

Brennan - 1929-61-12-12 SAE Port Block – Code 61 (O-Ring Face)

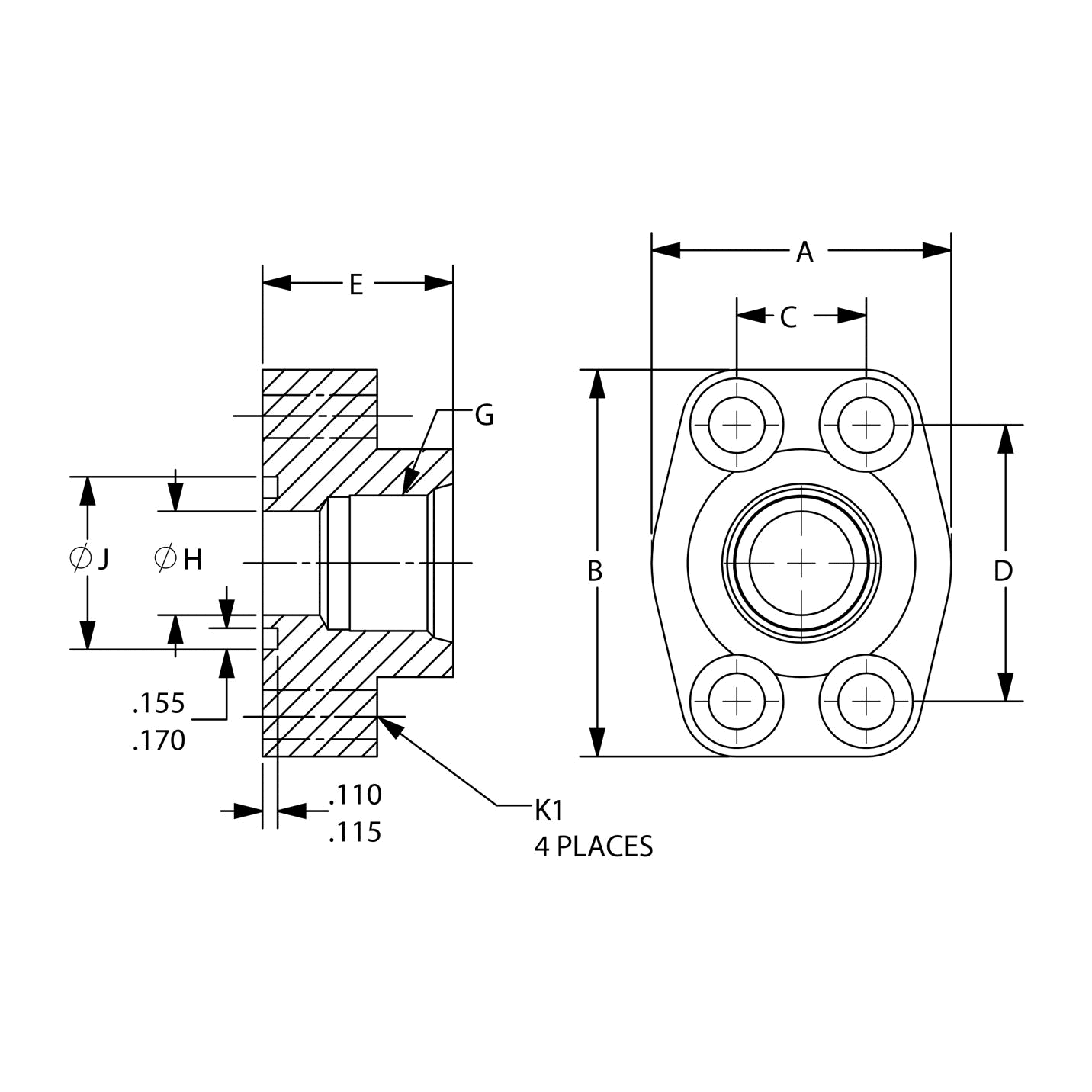

Additional Information
PIPE SIZE3/4
FLANGE SIZE3/4
A2.060
B2.69
C0.875
D1.875
E1.25
G THREAD1 1/16-12
H0.75
J MIN1.250
J MAX1.255
K1 DRILL0.406
K2 THD.3/8-16
MATERIALSTEEL
ConnectionsFlange
ShapeOther
