category:
Hydraulics & Pneumatics & Plumbing
country_of_origin:
China and Other Countries
manufacturer:
Brennan
mpn:
1929-61-20-20
subcategory:
Fittings/Hoses/Adapters
type:
Flange Fittings
Product Description

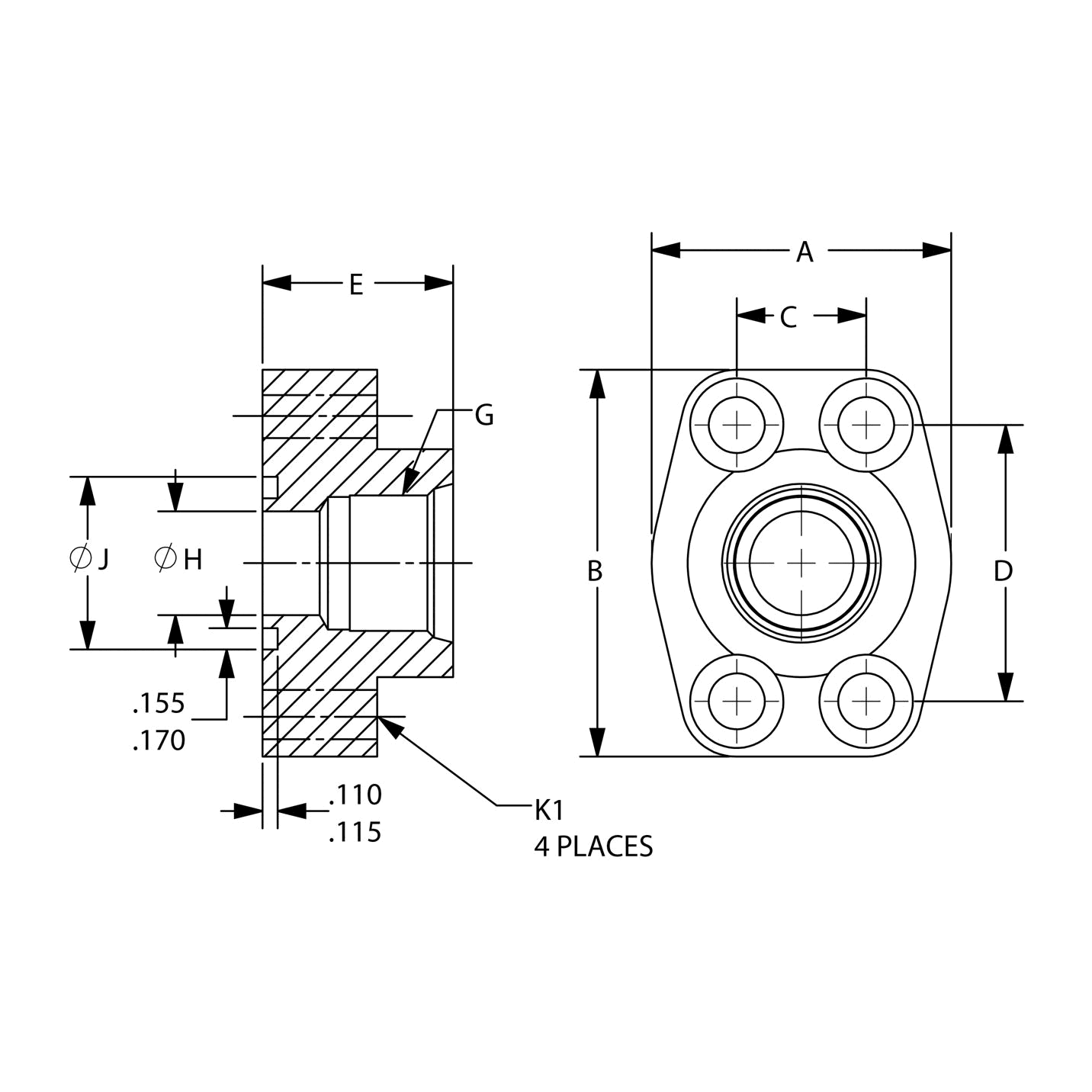

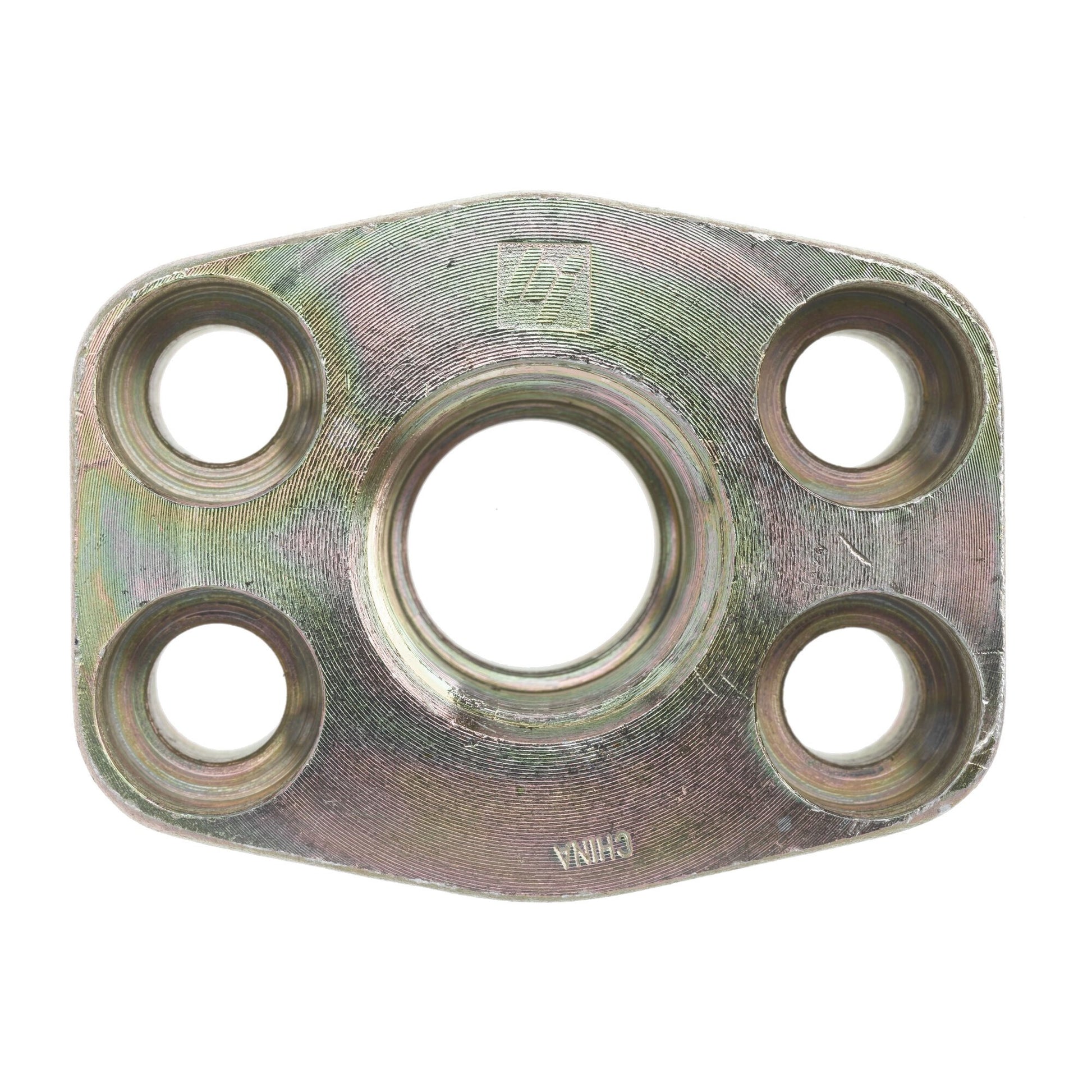

Brennan - 1929-61-20-20 SAE Port Block – Code 61 (O-Ring Face)
Additional Information
PIPE SIZE1 1/4
FLANGE SIZE1 1/4
A2.880
B3.25
C1.188
D2.312
E1.50
G THREAD1 5/8-12
H1.25
J MIN1.750
J MAX1.755
K1 DRILL0.469
K2 THD.7/16-14
MATERIALSTEEL
ConnectionsFlange
ShapeOther
