category:
Hydraulics & Pneumatics & Plumbing
country_of_origin:
China and Other Countries
manufacturer:
Brennan
mpn:
2502-04-02-FG
subcategory:
Fittings/Hoses/Adapters
type:
Tube Fittings and Adapters
Product Description

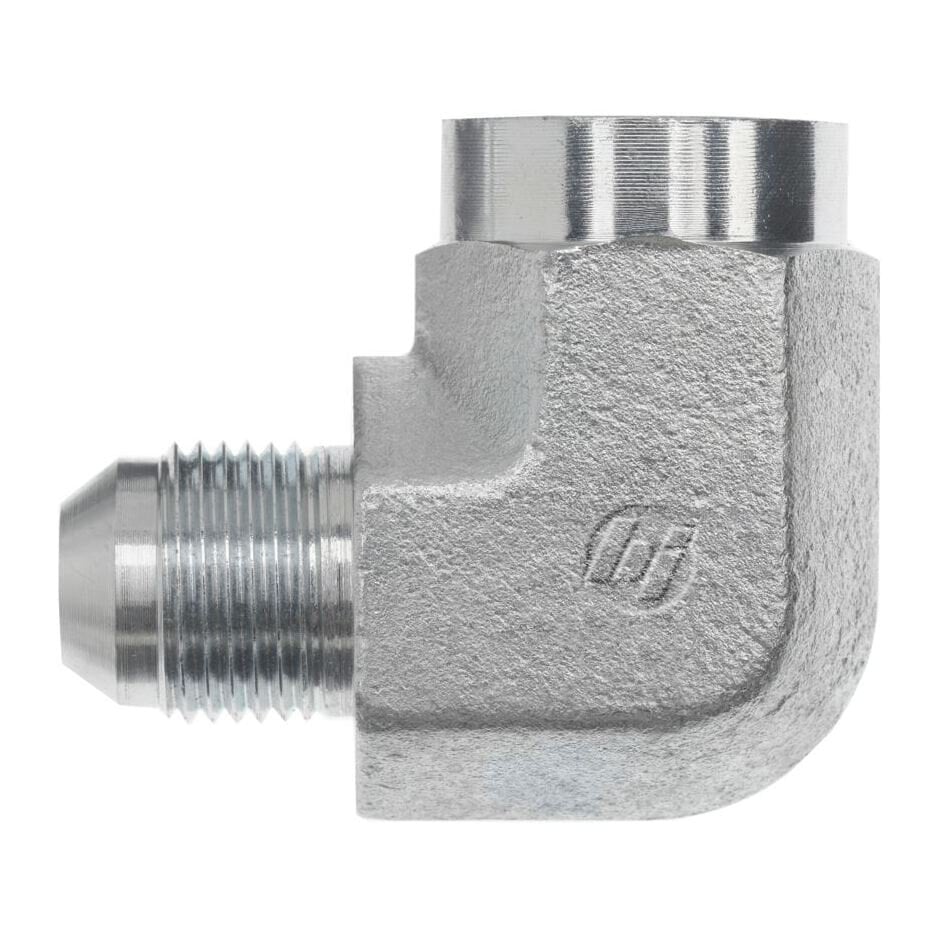

Brennan - 2502-04-02-FG MJ-FP 90 ELBOW
Additional Information
THREAD B1 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE7/16-20
THREAD B1 DRILL IN0.172
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEFEMALE NPTF
THREAD B2 SIZE1/8-27
THREAD B2 DRILL IN0.188
THREAD B2 SPECIFICATIONSAE J476
BODY HEX IN0.562
OVERALL LENGTH L IN0.660
CENTERLINE LENGTH M IN1.080
SHAPE90 DEGREE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.0812
MAXIMUM DYNAMIC PRESSURE PSI6,000
CALIFORNIA RESIDENTSPROP-65 WARNING
CUBIC INCH SPACE L X W X H0.72
ConnectionsNPT, JIC
ShapeElbow
