category:
Hydraulics & Pneumatics & Plumbing
country_of_origin:
China and Other Countries
manufacturer:
Brennan
mpn:
2505-08-08-FG
subcategory:
Fittings/Hoses/Adapters
type:
Tube Fittings and Adapters
Product Description

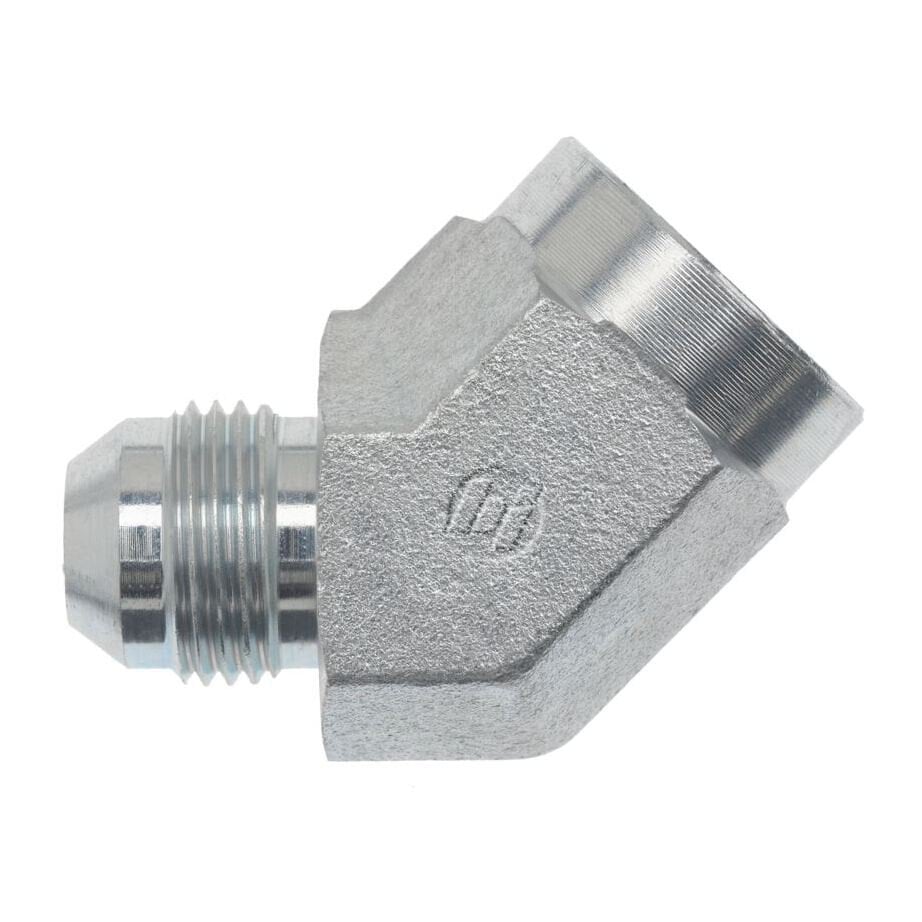

Brennan - 2505-08-08-FG MJ-FP 45 ELBOW
Additional Information
THREAD B1 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE3/4-16
THREAD B1 DRILL IN0.391
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEFEMALE NPTF
THREAD B2 SIZE1/2-14
THREAD B2 DRILL IN0.531
THREAD B2 SPECIFICATIONSAE J476
BODY HEX IN1.062
OVERALL LENGTH L IN0.940
CENTERLINE LENGTH M IN1.040
SHAPE45 DEGREE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.2687
MAXIMUM DYNAMIC PRESSURE PSI5,000
CALIFORNIA RESIDENTSPROP-65 WARNING
CUBIC INCH SPACE L X W X H2.454
ConnectionsNPT, JIC
ShapeElbow
