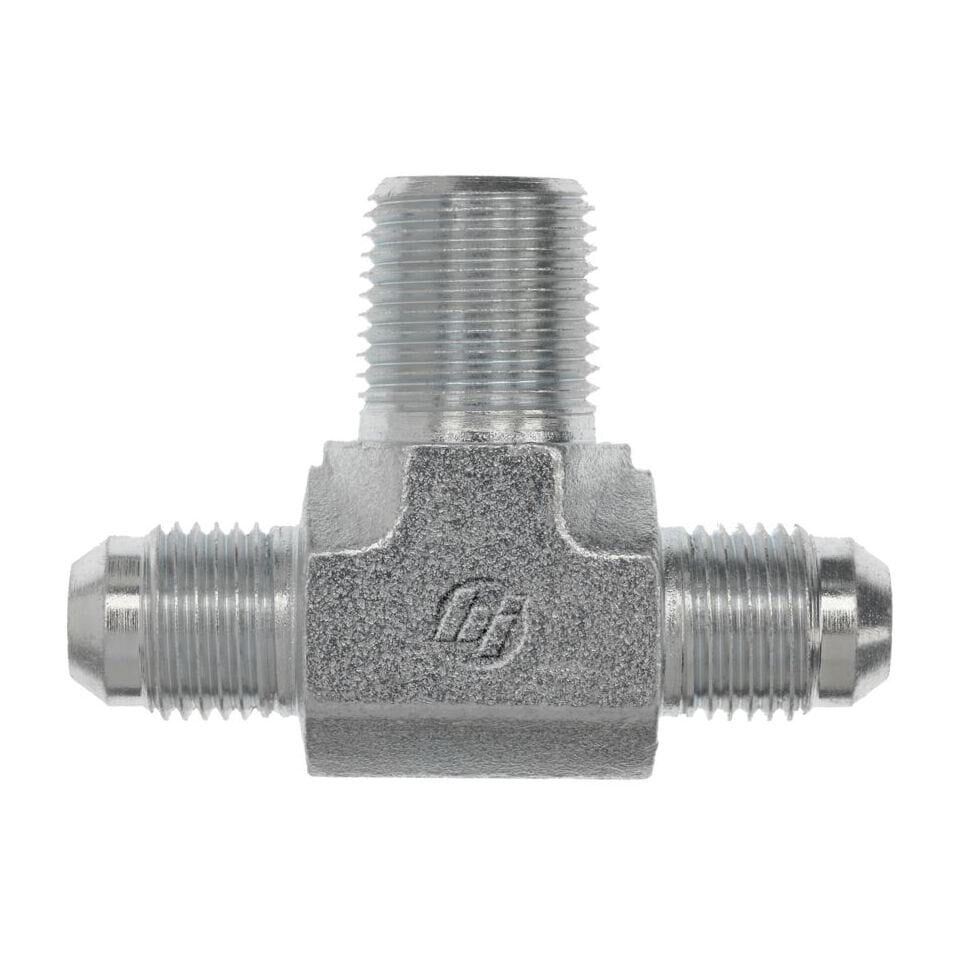

Brennan - 2601-20-20-20-SS MJ-MJ-MP TEE
Additional Information
THREAD B1 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE1-5/8-12
THREAD B1 DRILL IN1.078
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE1-5/8-12
THREAD B2 DRILL IN1.078
THREAD B2 SPECIFICATIONSAE J514
THREAD 3 TYPEMALE NPTF
THREAD 3 SIZE1-1/4-11-1/2
THREAD 3 DRILL IN1.250
THREAD 3 SPECIFICATIONSAE J476
BODY HEX IN1.625
OVERALL LENGTH L IN4.120
OVERALL LENGTH L2 IN2.380
CENTERLINE LENGTH M IN2.060
CENTERLINE LENGTH M2 IN2.060
SHAPETEE
BODY MATERIALSTAINLESS STEEL
RAW MATERIAL TYPESTRAIGHT STAINLESS STEEL
WEIGHT LBS1.5842
MAXIMUM DYNAMIC PRESSURE PSI3,000
CALIFORNIA RESIDENTSPROP-65 WARNING
CUBIC INCH SPACE L X W X H21.377
ConnectionsNPT, JIC
ShapeTee
CategoryHydraulics & Pneumatics & Plumbing
Country of originChina and Other Countries
ManufacturerBrennan
Mpn2601-20-20-20-SS
SubcategoryFittings/Hoses/Adapters
TypeTube Fittings and Adapters
