category:
Hydraulics & Pneumatics & Plumbing
country_of_origin:
China and Other Countries
manufacturer:
Brennan
mpn:
2602-24-24-24-FG
subcategory:
Fittings/Hoses/Adapters
type:
Tube Fittings and Adapters
Product Description

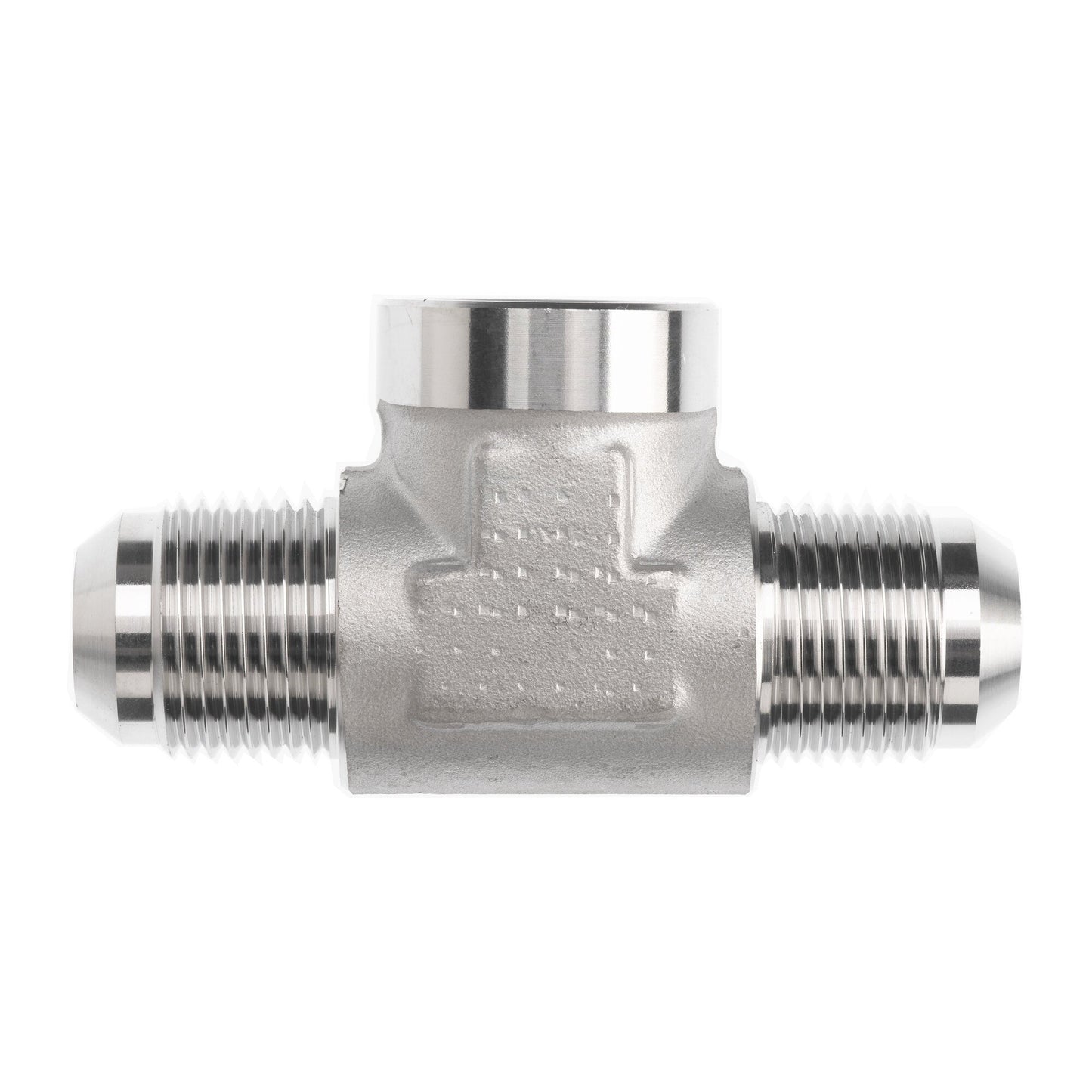

Brennan - 2602-24-24-24-FG MJ-MJ-FP TEE
Additional Information
THREAD B1 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE1-7/8-12
THREAD B1 DRILL IN1.312
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE1-7/8-12
THREAD B2 DRILL IN1.312
THREAD B2 SPECIFICATIONSAE J514
THREAD 3 TYPEFEMALE NPTF
THREAD 3 SIZE1-1/2-11-1/2
THREAD 3 DRILL IN1.500
THREAD 3 SPECIFICATIONSAE J476
BODY HEX IN2.562
OVERALL LENGTH L IN5.780
OVERALL LENGTH L2 IN2.080
CENTERLINE LENGTH M IN2.890
CENTERLINE LENGTH M2 IN2.890
SHAPETEE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS5.125
MAXIMUM DYNAMIC PRESSURE PSI2,000
CALIFORNIA RESIDENTSPROP-65 WARNING
CUBIC INCH SPACE L X W X H49.771
ConnectionsNPT, JIC
ShapeTee
