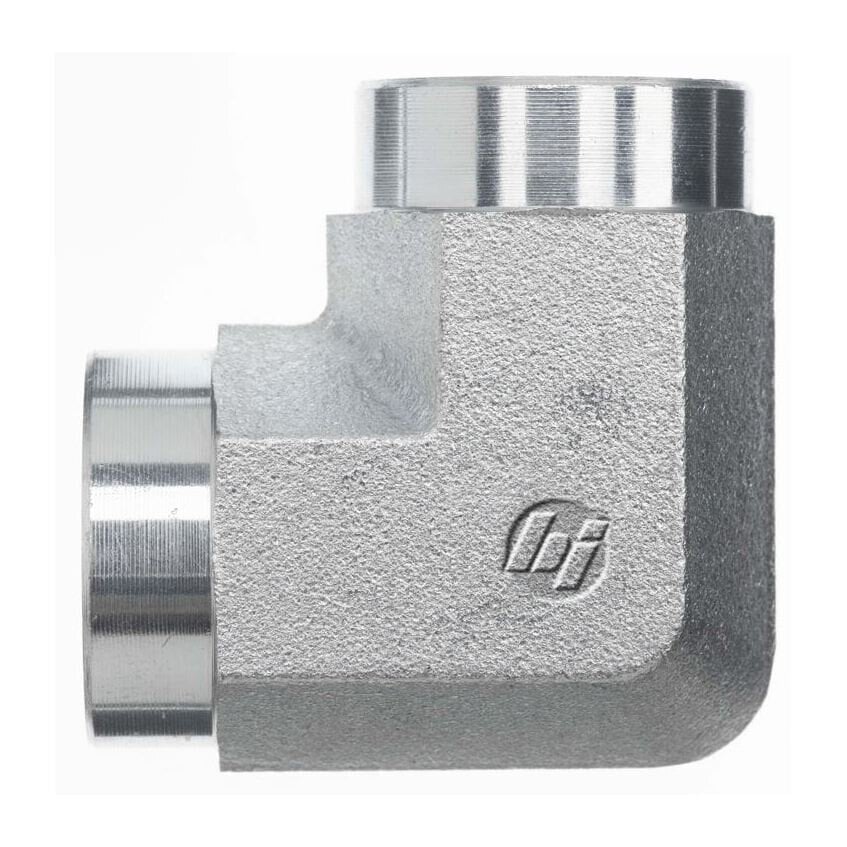

Brennan - 5504-08-08-FG FP-FP 90 ELBOW
Additional Information
THREAD B1 TYPEFEMALE NPTF
THREAD B1 SIZE1/2-14
THREAD B1 DRILL IN0.531
THREAD B1 SPECIFICATIONSAE J476
THREAD B2 TYPEFEMALE NPTF
THREAD B2 SIZE1/2-14
THREAD B2 DRILL IN0.531
THREAD B2 SPECIFICATIONSAE J476
BODY HEX IN1.062
OVERALL LENGTH L IN1.230
CENTERLINE LENGTH M IN1.230
SHAPE90 DEGREE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.4
MAXIMUM DYNAMIC PRESSURE PSI5,000
CALIFORNIA RESIDENTSPROP-65 WARNING
CUBIC INCH SPACE L X W X H3.293
ConnectionsNPT
ShapeElbow
CategoryHydraulics & Pneumatics & Plumbing
Country of originChina and Other Countries
ManufacturerBrennan
Mpn5504-08-08-FG
SubcategoryFittings/Hoses/Adapters
TypeTube Fittings and Adapters
