category:
Hydraulics & Pneumatics & Plumbing
country_of_origin:
China and Other Countries
manufacturer:
Brennan
mpn:
5652-04-04-04-04-FG
subcategory:
Fittings/Hoses/Adapters
type:
Tube Fittings and Adapters
Product Description

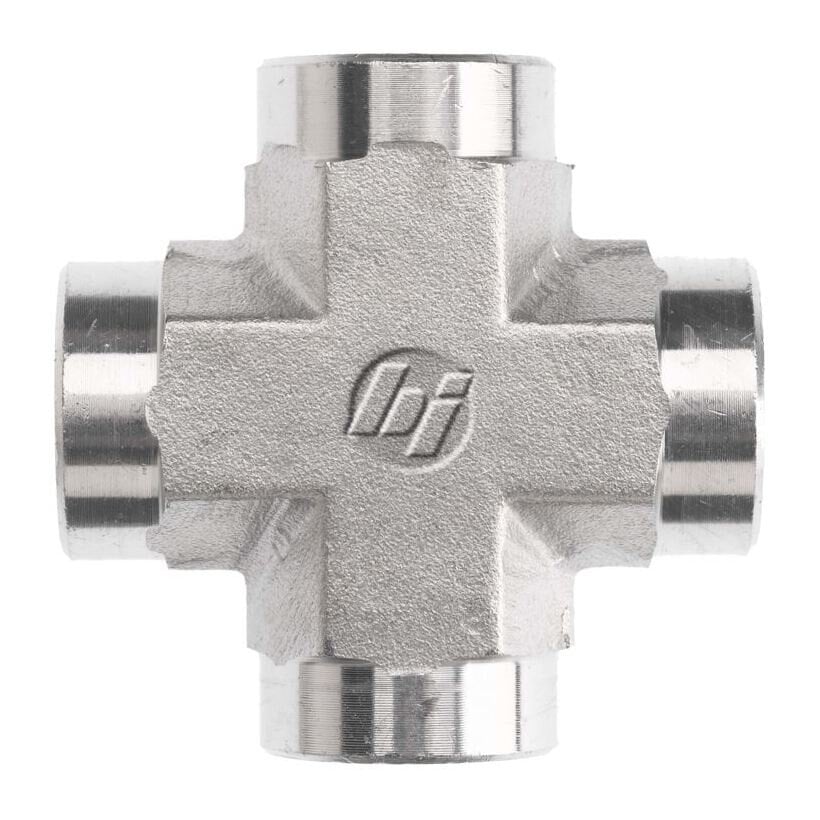

Brennan - 5652-04-04-04-04-FG FP-FP-FP-FP-Cross
Additional Information
THREAD B1 TYPEFEMALE NPTF
THREAD B1 SIZE1/4-18
THREAD B1 DRILL IN0.281
THREAD B1 SPECIFICATIONSAE J476
THREAD B2 TYPEFEMALE NPTF
THREAD B2 SIZE1/4-18
THREAD B2 DRILL IN0.281
THREAD B2 SPECIFICATIONSAE J476
THREAD 3 TYPEFEMALE NPTF
THREAD 3 SIZE1/4-18
THREAD 3 DRILL IN0.281
THREAD 3 SPECIFICATIONSAE J476
THREAD 4 TYPEFEMALE NPTF
THREAD 4 SIZE1/4-18
THREAD 4 DRILL IN0.281
THREAD 4 SPECIFICATIONSAE J476
BODY HEX IN0.750
OVERALL LENGTH L IN1.760
OVERALL LENGTH L2 IN1.760
CENTERLINE LENGTH M IN0.880
CENTERLINE LENGTH M2 IN0.880
CENTERLINE LENGTH M3 IN0.880
CENTERLINE LENGTH M4 IN0.880
SHAPECROSS
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.2375
CALIFORNIA RESIDENTSPROP-65 WARNING
ConnectionsNPT
ShapeCross
