category:
Hydraulics & Pneumatics & Plumbing
country_of_origin:
China and Other Countries
manufacturer:
Brennan
mpn:
5655-12-12-12-12-FG
subcategory:
Fittings/Hoses/Adapters
type:
Tube Fittings and Adapters
Product Description

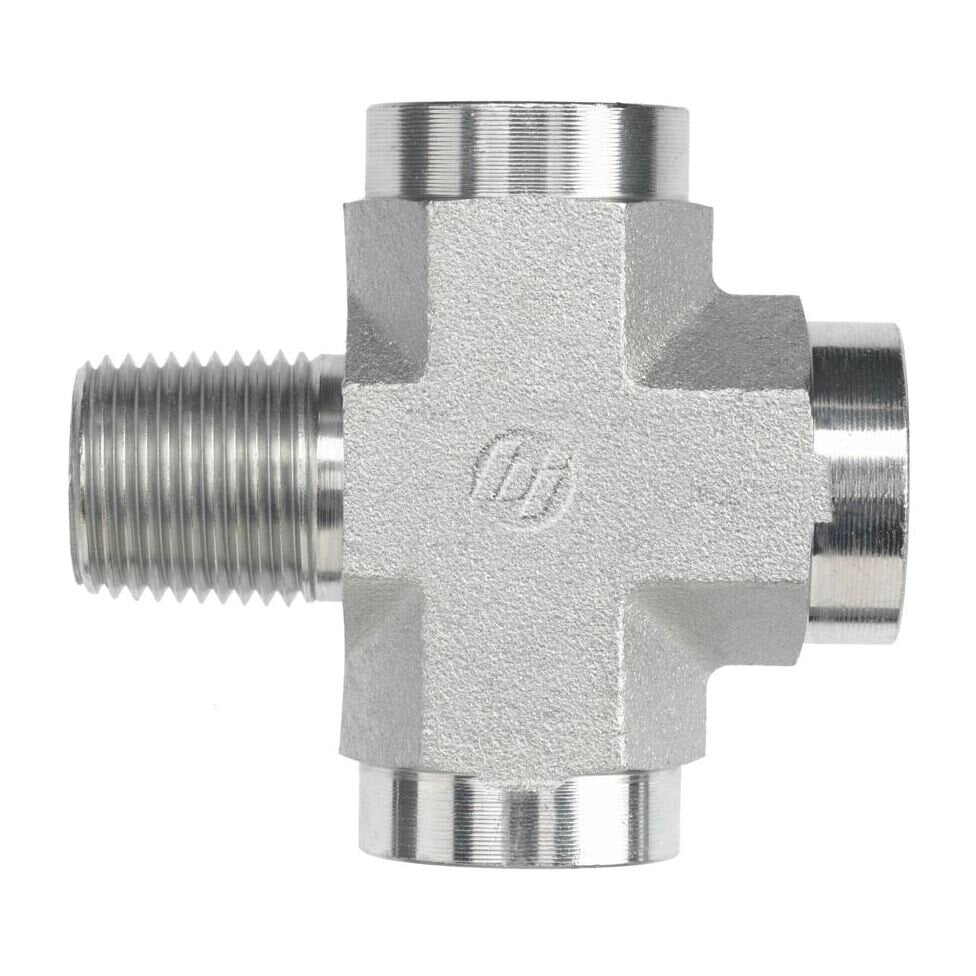

Brennan - 5655-12-12-12-12-FG MP-FP-FP-FP Cross
Additional Information
THREAD B1 TYPEMALE NPTF
THREAD B1 SIZE3/4-14
THREAD B1 DRILL IN0.719
THREAD B1 SPECIFICATIONSAE J476
THREAD B2 TYPEFEMALE NPTF
THREAD B2 SIZE3/4-14
THREAD B2 DRILL IN0.719
THREAD B2 SPECIFICATIONSAE J476
THREAD 3 TYPEFEMALE NPTF
THREAD 3 SIZE3/4-14
THREAD 3 DRILL IN0.719
THREAD 3 SPECIFICATIONSAE J476
THREAD 4 TYPEFEMALE NPTF
THREAD 4 SIZE3/4-14
THREAD 4 DRILL IN0.719
THREAD 4 SPECIFICATIONSAE J476
BODY HEX IN1.312
OVERALL LENGTH L IN2.950
OVERALL LENGTH L2 IN2.720
CENTERLINE LENGTH M IN1.590
CENTERLINE LENGTH M2 IN1.360
CENTERLINE LENGTH M3 IN1.360
CENTERLINE LENGTH M4 IN1.360
SHAPECROSS
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.8187
CALIFORNIA RESIDENTSPROP-65 WARNING
ConnectionsNPT
ShapeCross
