Product Description

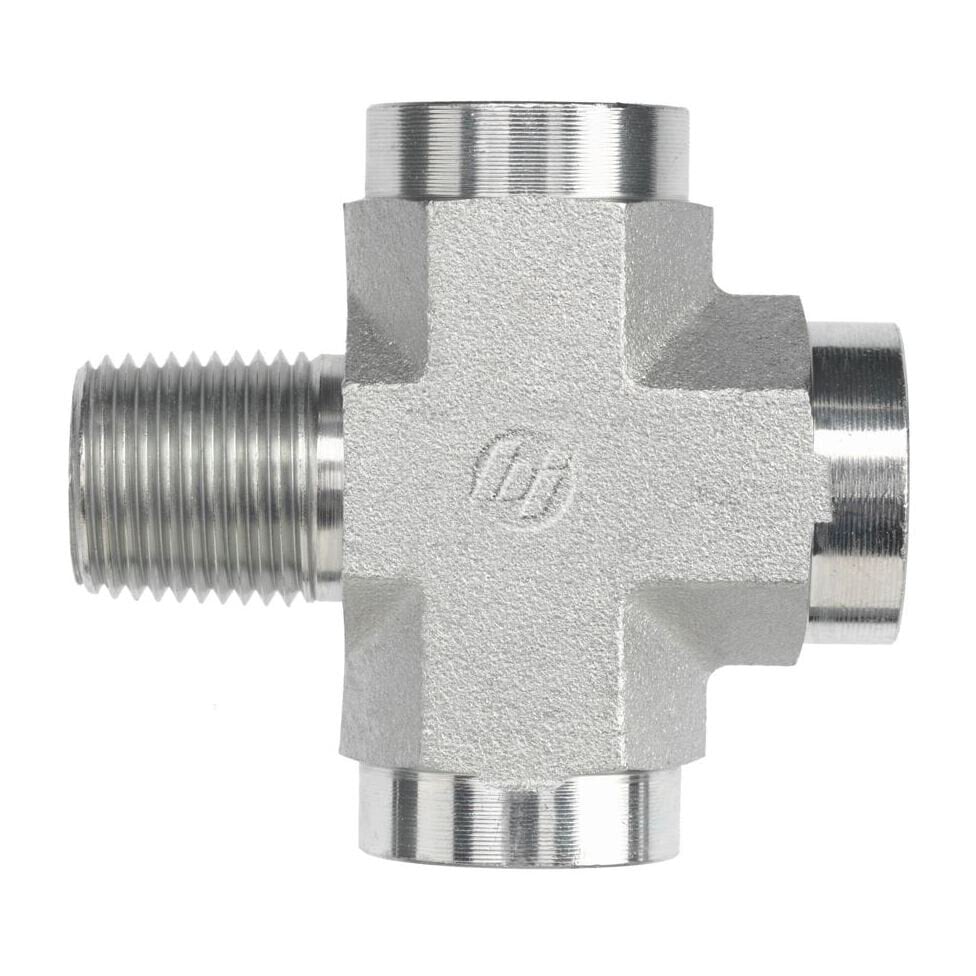

Brennan - 5655-20-16-08-08-FG MP-FP-FP-FP Cross
Additional Information
THREAD B1 TYPEMALE NPTF
THREAD B1 SIZE1-1/4-11-1/2
THREAD B1 DRILL IN1.250
THREAD B1 SPECIFICATIONSAE J476
THREAD B2 TYPEFEMALE NPTF
THREAD B2 SIZE1-11-1/2
THREAD B2 DRILL IN0.938
THREAD B2 SPECIFICATIONSAE J476
THREAD 3 TYPEFEMALE NPTF
THREAD 3 SIZE1/2-14
THREAD 3 DRILL IN0.531
THREAD 3 SPECIFICATIONSAE J476
THREAD 4 TYPEFEMALE NPTF
THREAD 4 SIZE1/2-14
THREAD 4 DRILL IN0.531
THREAD 4 SPECIFICATIONSAE J476
BODY HEX IN1.625
OVERALL LENGTH L IN4.000
OVERALL LENGTH L2 IN3.240
CENTERLINE LENGTH M IN2.380
CENTERLINE LENGTH M2 IN1.620
CENTERLINE LENGTH M3 IN1.620
CENTERLINE LENGTH M4 IN1.620
SHAPECROSS
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS2.4687
CALIFORNIA RESIDENTSPROP-65 WARNING
ConnectionsNPT
ShapeCross
