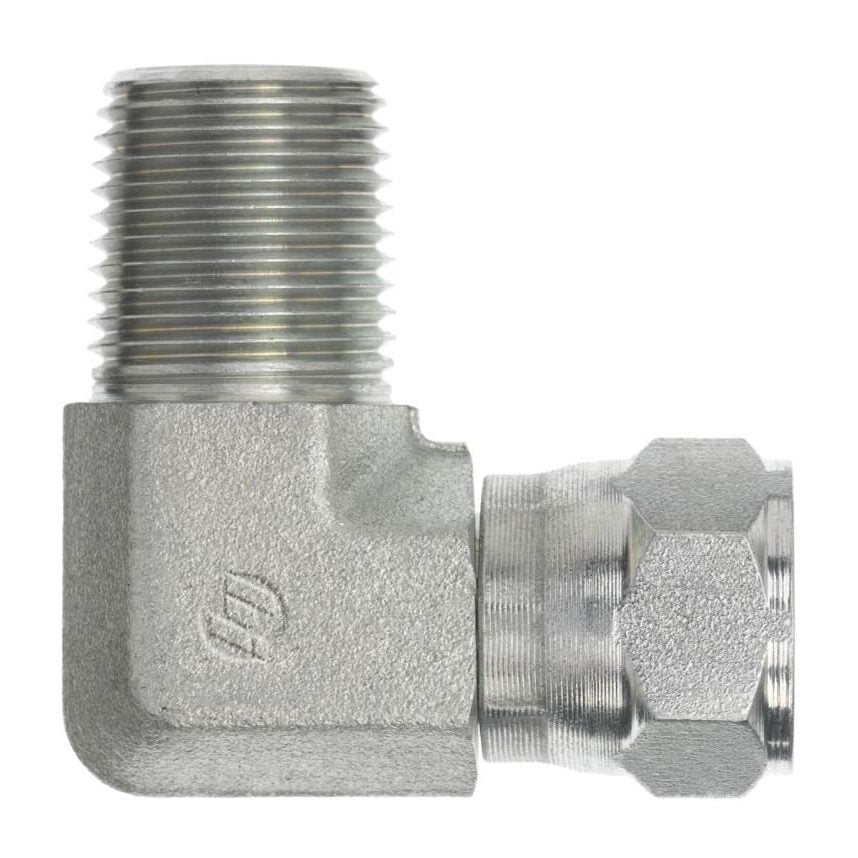

Brennan - 6501-08-06-SS MP-FJS 90 Elbow
Additional Information
THREAD B1 TYPEMALE NPTF
THREAD B1 SIZE1/2-14
THREAD B1 DRILL IN0.531
THREAD B1 SPECIFICATIONSAE J476
THREAD B2 TYPEFEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE9/16-18
THREAD B2 DRILL IN0.297
THREAD B2 SPECIFICATIONSAE J514

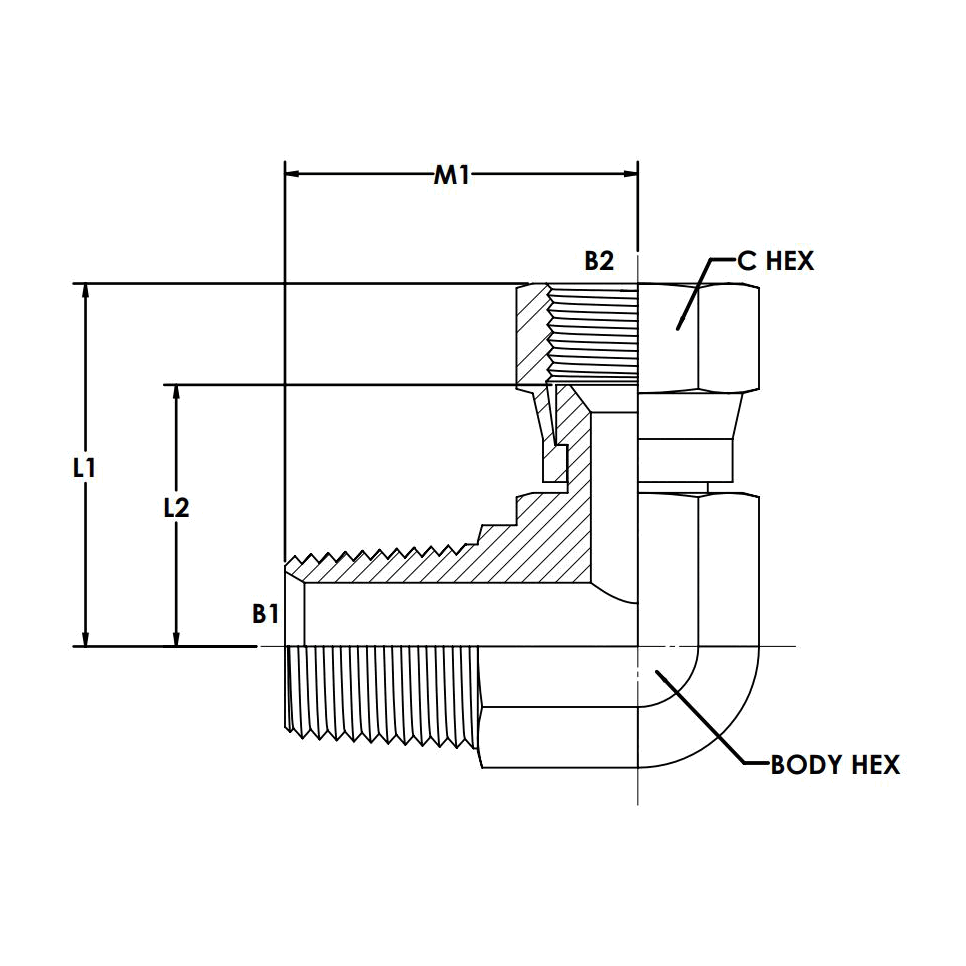

BODY HEX IN0.688
C HEX 1 IN0.875
OVERALL LENGTH L IN1.420
OVERALL LENGTH L2 IN1.045
CENTERLINE LENGTH M IN1.470
SHAPE90 DEGREE
BODY MATERIALSTAINLESS STEEL
RAW MATERIAL TYPESTRAIGHT STAINLESS STEEL
WEIGHT LBS0.5875
CALIFORNIA RESIDENTSPROP-65 WARNING
ConnectionsNPT, JIC
ShapeElbow
CategoryHydraulics & Pneumatics & Plumbing
Country of originChina and Other Countries
ManufacturerBrennan
Mpn6501-08-06-SS
SubcategoryFittings/Hoses/Adapters
TypeTube Fittings and Adapters
