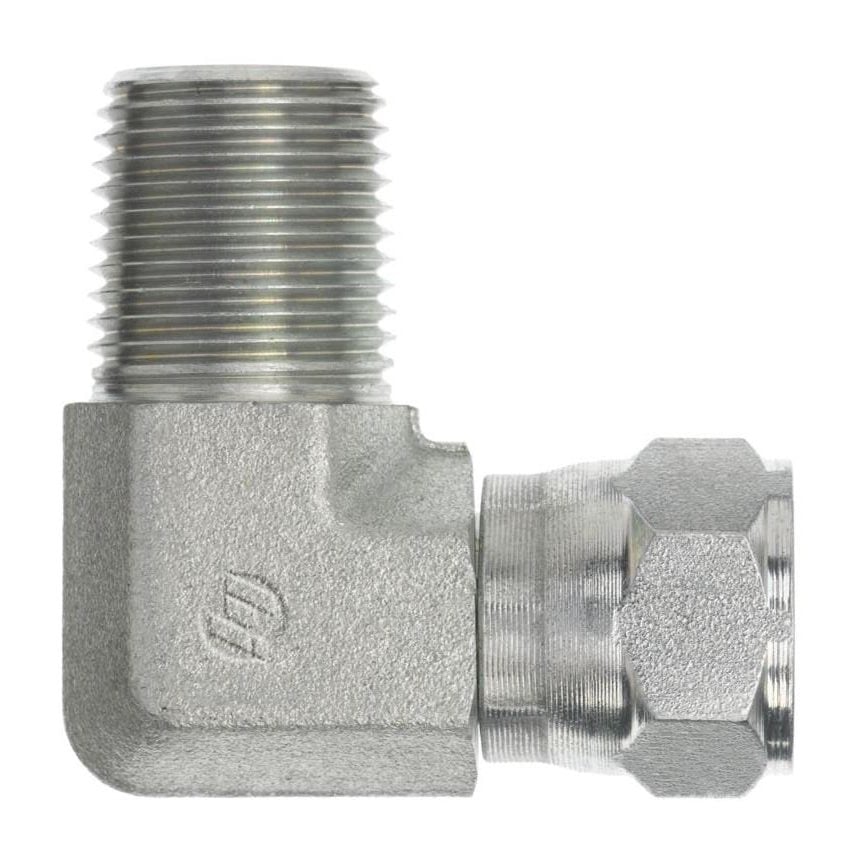

Brennan - 6501-20-20-FG MP-FJS 90 Elbow
Additional Information
THREAD B1 TYPEMALE NPTF
THREAD B1 SIZE1-1/4-11-1/2
THREAD B1 DRILL IN1.250
THREAD B1 SPECIFICATIONSAE J476
THREAD B2 TYPEFEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE1-5/8-12
THREAD B2 DRILL IN1.078
THREAD B2 SPECIFICATIONSAE J514

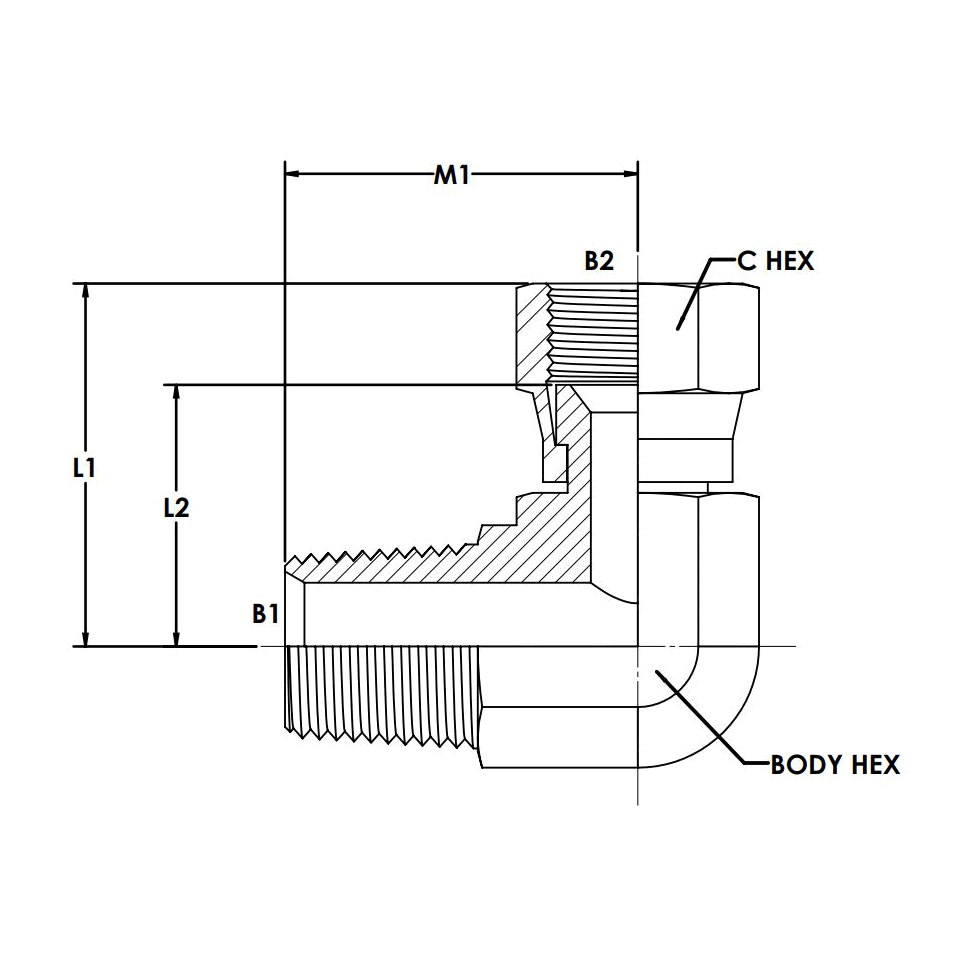

BODY HEX IN2.000
C HEX 1 IN1.625
OVERALL LENGTH L IN2.310
OVERALL LENGTH L2 IN1.670
CENTERLINE LENGTH M IN2.380
SHAPE90 DEGREE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS1.8571
CALIFORNIA RESIDENTSPROP-65 WARNING
ConnectionsNPT, JIC
ShapeElbow
CategoryHydraulics & Pneumatics & Plumbing
Country of originChina and Other Countries
ManufacturerBrennan
Mpn6501-20-20-FG
SubcategoryFittings/Hoses/Adapters
TypeTube Fittings and Adapters
