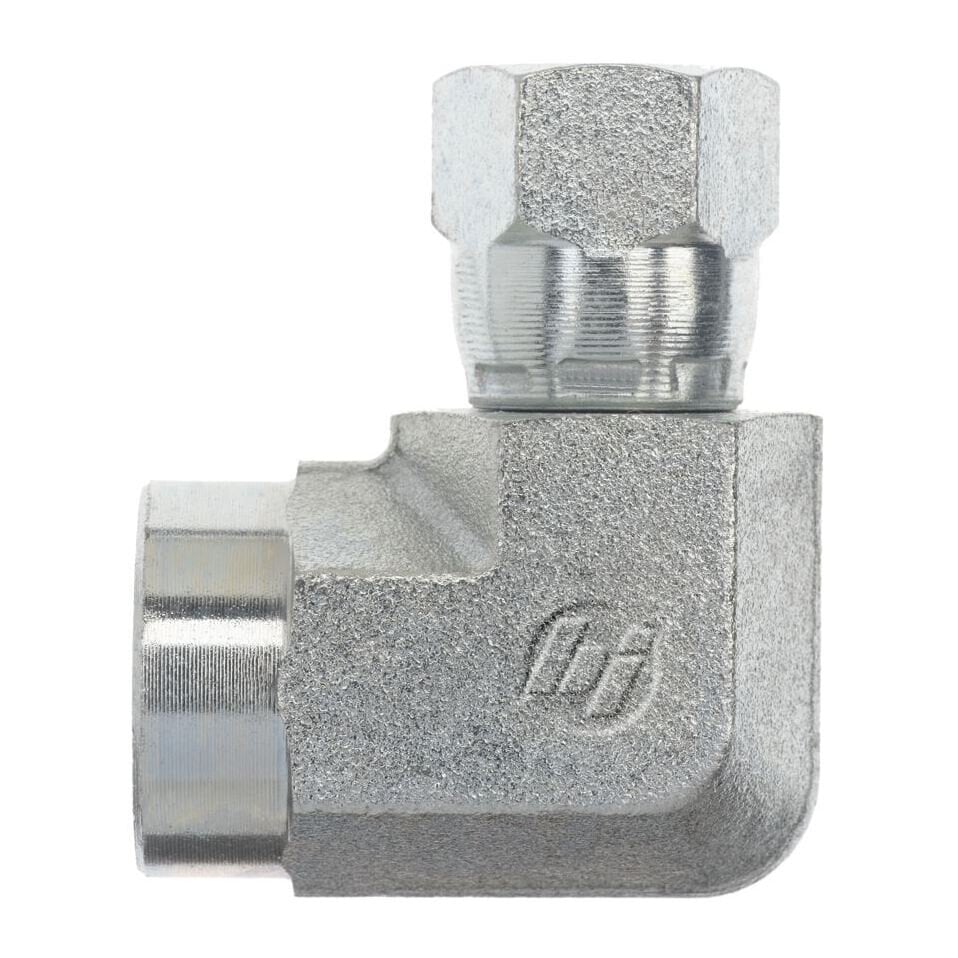

Brennan - 6503-02-04-FG FP-FJS 90 Elbow
Additional Information
THREAD B1 TYPEFEMALE NPTF
THREAD B1 SIZE1/8-27
THREAD B1 DRILL IN0.188
THREAD B1 SPECIFICATIONSAE J476
THREAD B2 TYPEFEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE7/16-20
THREAD B2 DRILL IN0.172
THREAD B2 SPECIFICATIONSAE J514
BODY HEX IN0.562
C HEX 1 IN0.562
OVERALL LENGTH L IN1.140
OVERALL LENGTH L2 IN0.800
CENTERLINE LENGTH M IN0.660
SHAPE90 DEGREE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.0937
CALIFORNIA RESIDENTSPROP-65 WARNING
ConnectionsNPT, JIC
ShapeElbow
CategoryHydraulics & Pneumatics & Plumbing
Country of originChina and Other Countries
ManufacturerBrennan
Mpn6503-02-04-FG
SubcategoryFittings/Hoses/Adapters
TypeTube Fittings and Adapters
