category:
Hydraulics & Pneumatics & Plumbing
country_of_origin:
China and Other Countries
manufacturer:
Brennan
mpn:
6603-08-08-08-FG
subcategory:
Fittings/Hoses/Adapters
type:
Tube Fittings and Adapters
Product Description

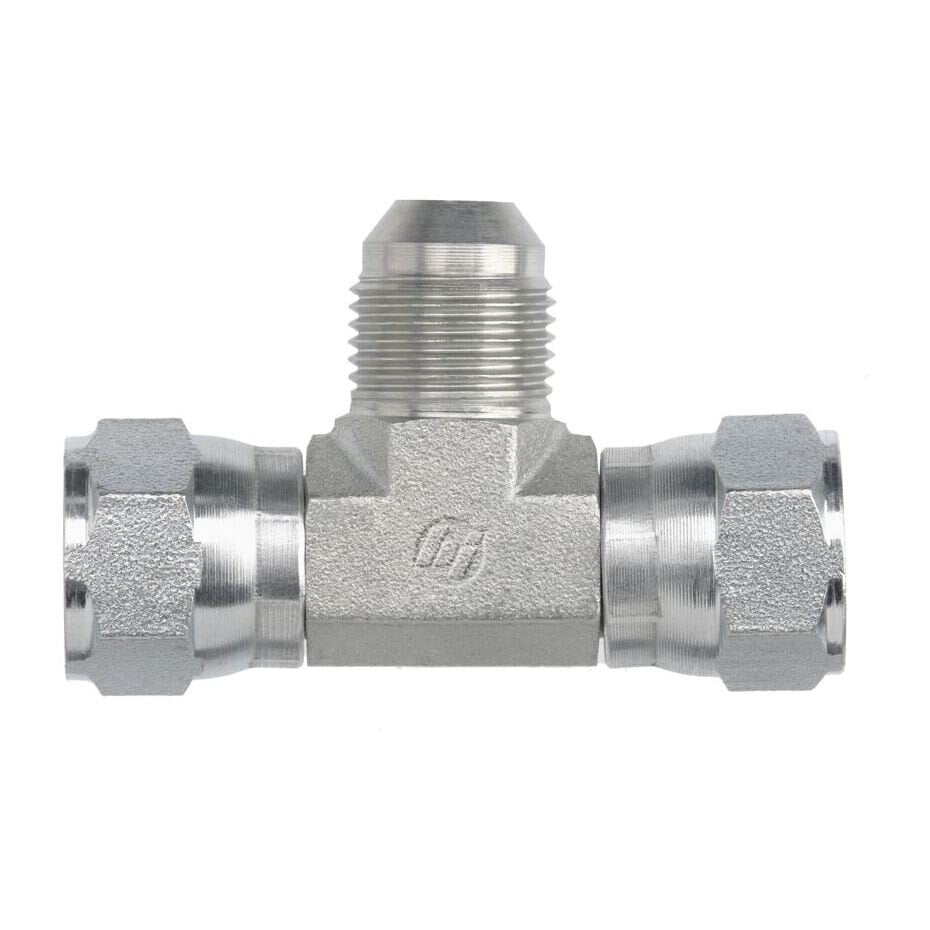

Brennan - 6603-08-08-08-FG FJS-FJS-MJ Tee
Additional Information
THREAD B1 TYPEFEMALE JIC SWIVEL 37 DEG FLARE
THREAD B1 SIZE3/4-16
THREAD B1 DRILL IN0.391
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEFEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE3/4-16
THREAD B2 DRILL IN0.391
THREAD B2 SPECIFICATIONSAE J514
THREAD 3 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE3/4-16
THREAD 3 DRILL IN0.391
THREAD 3 SPECIFICATIONSAE J514
BODY HEX IN0.750
C HEX 1 IN0.875
C HEX 2 IN0.875
OVERALL LENGTH L IN1.250
CENTERLINE LENGTH M IN1.380
CENTERLINE LENGTH M2 IN1.380
CENTERLINE LENGTH M3 IN0.958
SHAPETEE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.3
CALIFORNIA RESIDENTSPROP-65 WARNING
ConnectionsJIC
ShapeTee
