category:
Hydraulics & Pneumatics & Plumbing
country_of_origin:
China and Other Countries
manufacturer:
Brennan
mpn:
6603-12-12-12-FG
subcategory:
Fittings/Hoses/Adapters
type:
Tube Fittings and Adapters
Product Description

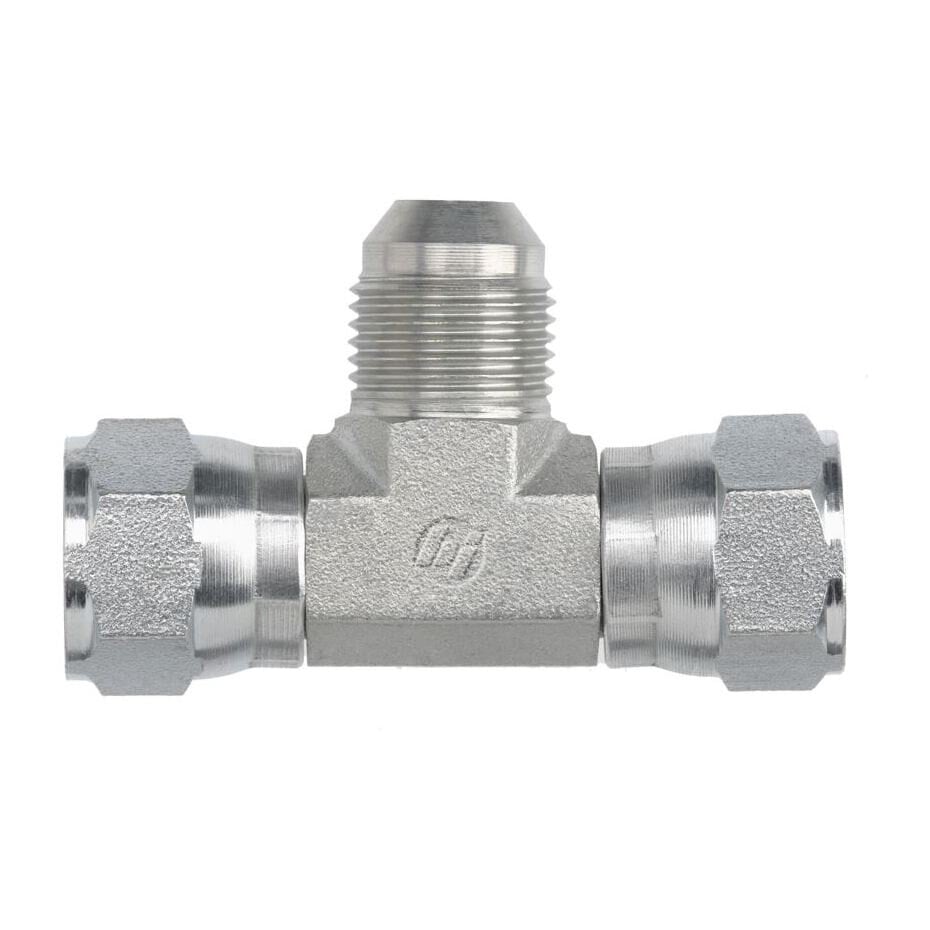

Brennan - 6603-12-12-12-FG FJS-FJS-MJ Tee
Additional Information
THREAD B1 TYPEFEMALE JIC SWIVEL 37 DEG FLARE
THREAD B1 SIZE1-1/16-12
THREAD B1 DRILL IN0.609
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEFEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE1-1/16-12
THREAD B2 DRILL IN0.609
THREAD B2 SPECIFICATIONSAE J514
THREAD 3 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE1-1/16-12
THREAD 3 DRILL IN0.609
THREAD 3 SPECIFICATIONSAE J514
BODY HEX IN1.062
C HEX 1 IN1.250
C HEX 2 IN1.250
OVERALL LENGTH L IN1.660
CENTERLINE LENGTH M IN1.750
CENTERLINE LENGTH M2 IN1.750
CENTERLINE LENGTH M3 IN1.188
SHAPETEE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.7437
CALIFORNIA RESIDENTSPROP-65 WARNING
ConnectionsJIC
ShapeTee
