category:
Hydraulics & Pneumatics & Plumbing
country_of_origin:
China and Other Countries
manufacturer:
Brennan
mpn:
6840-20-20-20-NWO-FG
subcategory:
Fittings/Hoses/Adapters
type:
Tube Fittings and Adapters
Product Description

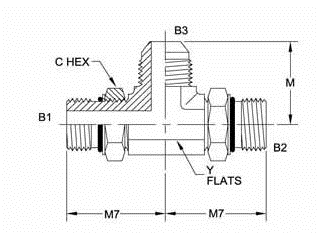

Brennan - 6840-20-20-20-NWO-FG MAORB-MAORB-MJ Tee
Additional Information
THREAD B1 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE1-5/8-12
THREAD B1 DRILL IN1.078
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE1-5/8-12
THREAD B2 DRILL IN1.078
THREAD B2 SPECIFICATIONSAE J514
THREAD 3 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE1-5/8-12
THREAD 3 DRILL IN1.078
THREAD 3 SPECIFICATIONSAE J514
BODY HEX IN1.875
C HEX 1 IN1.625
C HEX 2 IN1.625
OVERALL LENGTH L IN2.060
CENTERLINE LENGTH M IN2.250
CENTERLINE LENGTH M2 IN2.250
SHAPETEE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
O-RING / SEAL MATERIALNBR
WEIGHT LBS2.125
CALIFORNIA RESIDENTSPROP-65 WARNING
ConnectionsJIC, ORB
ShapeTee
