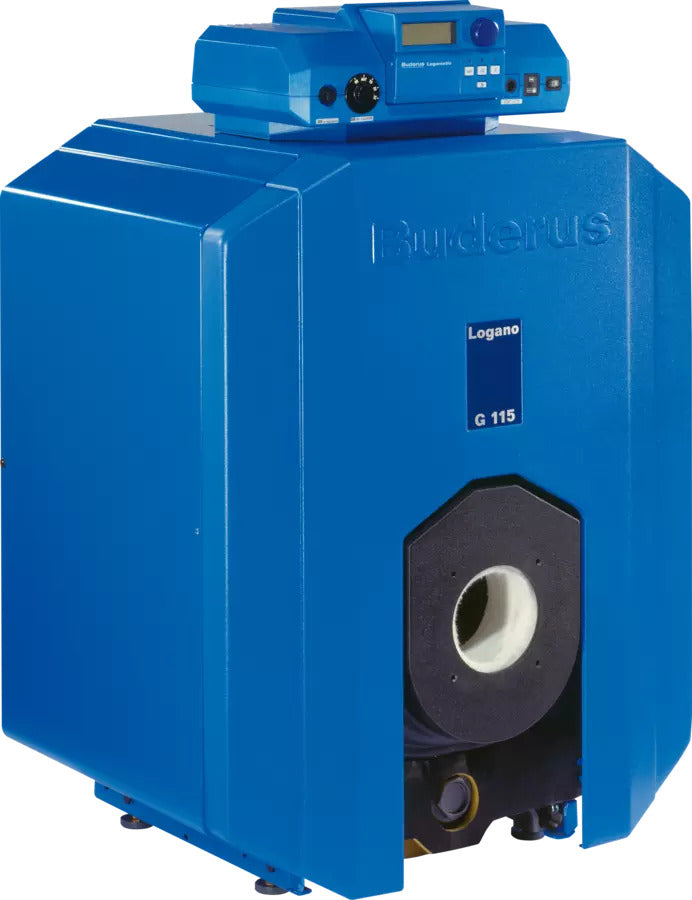

Buderus G115WS/3 Logano Oil-Fired Boiler, 74,000 BTU

Buderus G115WS/3 Logano Oil-Fired Boiler, 74,000 BTU

Dropship

Get it by Tue, Dec 24 - Sun, Dec 29

SKU SKU:kpi041-7-747-019-702

Regular price $2,880.42 USD
Regular price Sale price $2,880.42 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Residential Boilers
country_of_origin: PT
manufacturer: Bosch Water Heater
mpn: 7-747-019-702
subcategory: Oil-Fired Boiler

Product Description

Bosch Water Heater - 7-747-019-702 The Buderus G115WS boiler is based on the highly successful G115, the world™s best selling boiler. The G115WS has been redesigned and reengineered to extract and deliver more heat from every fuel dollar, and now has higher outputs at less cost per BTU. Acknowledged as the leader in high-efficiency, low emission hydronic heating, Buderus offers innovative design and quality manufacturing.

A G115WS cast iron oil boiler is ideal for new installations or as a replacement for virtually any make or model of boiler. They are compatible with most hot water tanks. Constructed with superior materials and designed by the industry™s leading engineers, the G115WS boiler is raising the standard for the industry. With two ETL approved venting options, either into a chimney or directly through the wall, the G115WS allows a wide range of installation possibilities.

Buderus G115WS/3 Logano-series model is Energy Star listed, floor-standing, 3-section, residential oil-fired boiler with 87% AFUE and 74,000 BTU (Net) rating. Includes B-Kit comprised of burner mounting bolts set, supply manifold (1-1/4" x 1-1/4" x 3/4" x 1/4"), 1-1/4" black 90 ° elbow, 3/4" black 90 ° elbow, 1-1/4" x 3" black pipe nipple (BST x NPT), boiler drain, 30 psi relief valve, T&P gauge and adjustable boiler feet.

Features:

  • Improved Efficiency - 87% AFUE
  • Engineered to extract and deliver more heat from every fuel dollar
  • Special compounds provide a gas-tight seal for safe and efficient operation
  • Optimized combustion with positive pressure-fired boilers and
  • tailored chamber geometry
  • Minimal stack losses with the modified three-pass flue design™s large
  • heat transfer areas
  • Low standby losses with a full 3" jacket of thermal insulation around the
  • entire block”even underneath the boiler

Additional Information

ModelG115WS/3
Gross Output (BTU/Hr)(Chimney Vent))85,000
Gross Output (BTU/Hr)(Direct Vent)74000
Net IBR (BTU/Hr)(Chimney Vent)74,000
Net IBR (BTU/Hr)(Direct Vent)64000
Firing Rate (GPH)(Chimney Vent)0.70
Firing Rate (GPH)(Direct Vent)0.6
AFUE (%)87
Number of Sections3
Vent Connection Size5
Supply, in1(1/4)
Return, in1
Overall Boiler Length, in235/8
Boiler Block Length, in211/8
Minimum Boiler Block Width, in18
Boiler Width, in231/2
Minimum Boiler Height, in331/2
Boiler Height, in341/2
Boiler Feet Spacing, in103/8
Fire Box Depth, in16
Fire Box Volume (cu. ft.)1.20
Dry Weight (lbs.)330
Approx. Water Content (gal.)8.7
Side, in15
Rear, in20
