category:
Balancing Valves
height:
2.5"
instruction_sheet:
https://www.caleffi.com/sites/default/files/media/external-file/H0001890_NA.pdf
length:
6"
manufacturer:
Caleffi
mpn:
116370A
subcategory:
Thermal
technical_brochure:
https://www.caleffi.com/sites/default/files/media/external-file/01325_NA.pdf
type:
ThermoSetter™
weight:
0.5 LB
width:
6.25"
Instruction Sheet Product Description

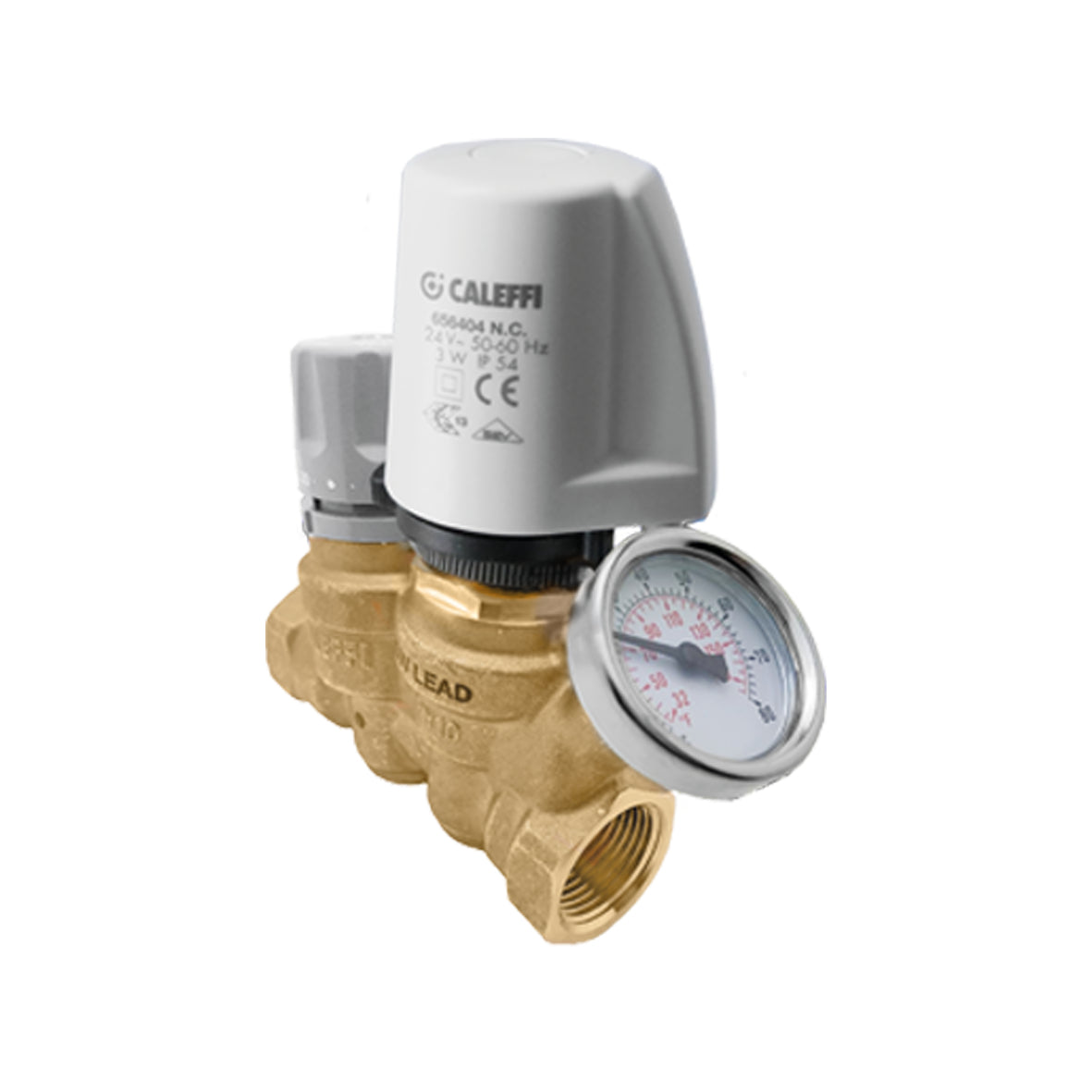

Caleffi - 116370A Thermal balancing valve (thermal disinfection using actuator) Adjustable thermal balancing valve for domestic hot water recirculation circuits. With by-pass valve for thermal disinfection. Purchase 656 actuator separately. Drywell includes temperature gauge. Optional outlet check valve.
Additional Information
Adjustment Temperature Range 95°F —150°F For The 1" And 1-1/4" Only The Smaller Ones Have A Top Range Of 140°F 1/2" And 3/4"
Cv Max 21;
Cv Min 023
Cv Disinfection 12;
Cv Design 052 1" And 1 1/4"
Cv Max 44;
Cv Min 10
Cv Disinfection 23;
