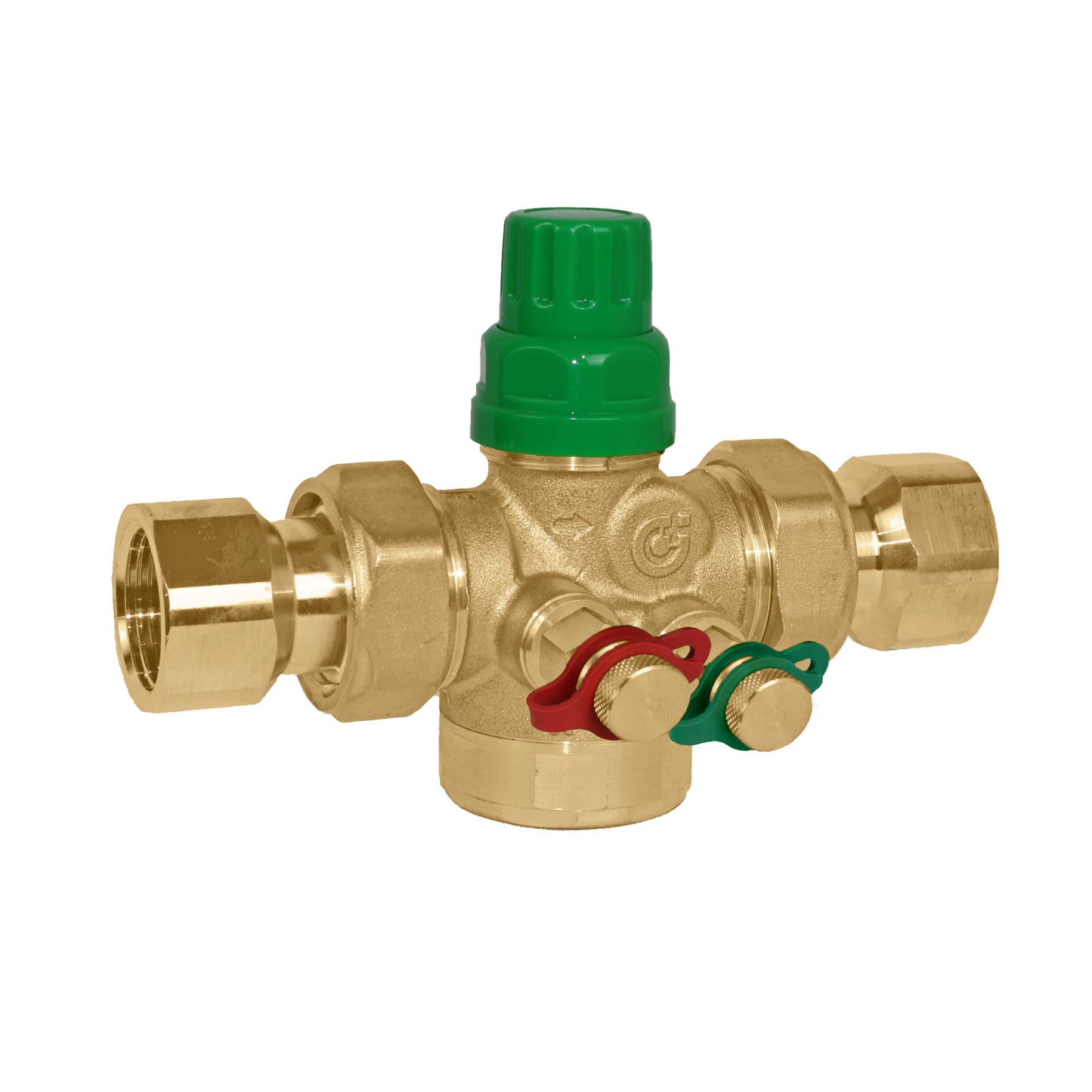

Caleffi 145553A 5G3 FLOWMATIC® PICV Dual Union 3/4" FNPT, 5.3 GPM

Caleffi 145553A 5G3 FLOWMATIC® PICV Dual Union 3/4" FNPT, 5.3 GPM

Dropship

Get it by Sun, Jun 08 - Fri, Jun 13

SKU kpi094-145553A 5G3

0
(0 rating)
$118.67 USD
$118.67 USD
Sale Sold out
Shipping calculated at checkout.
 More payment options
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Zone Valves, Controls and Coil Kits
manufacturer: Caleffi
mpn: 145553A 5G3
subcategory: Pressure Independent Control Valves (PICV)
type: FLOWMATIC®
weight: 0.3 LB

Product Description

Caleffi - 145553A 5G3 Pressure independent control valve (NPT) Flow rate is adjusted in two different ways - Manually, on the automatic flow rate regulator (to restrict the maximum value);- Automatically, by the control valve in combination with a proportional (0–10 V) or ON/OFF actuator, in accordance with the thermal load requirements of the circuit being controlled.

Additional Information

Connection 3/4" Fnpt, Union
Maximum Working Pressure 360 Psi
Medium Temperature Range 4-248 °F
Maximum Percentage Of Glycol 50 %
Medium Technical Water, Glycol Solutions
Flow Rate Working Range 008–040 M³/H
Material Dezincification Resistant Brass
