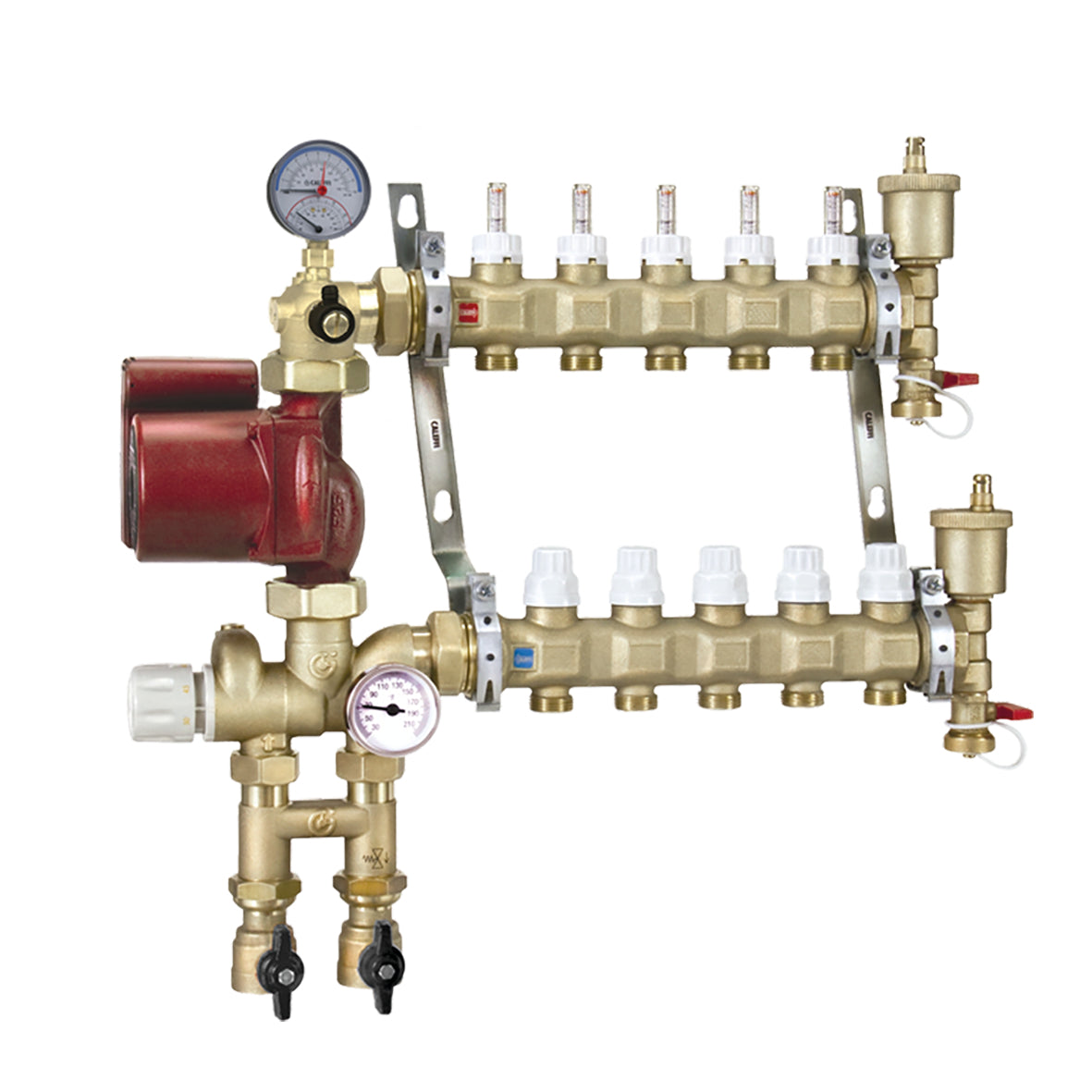

Caleffi - 1725C1A Low temperature manifold mixing station (with 3-speed pump) Complete with built-in sensor to keep flow temperature at constant set value. Pre-assembled thermostatic manifold mixing station consisting of a supply distribution manifold complete with built-in sight flow gauges and adjustable balancing valves. Return manifold with built-in shutoff valves is suitable for thermo-electric actuators. Includes Grundfos UPS 15—58 three-speed pump. 3/4" F NPT supply/return ball valves. Models with "...IN" suffix are built inverted (tubing connections going upward).
Additional Information
Connection 3/4" Outlet
Connection 3/4" M, 3 Outlets
Maximum Working Pressure 150 Psi
Adjustment Temperature Range 80–130 °F
Maximum Inlet Temperature 195 °F
Outlet Center Distance 2 "
Type Of Pump Ups 15-58
CategoryDistribution Manifolds and Mixing Stations
Height4.5"
Length19.125"
ManufacturerCaleffi
Mpn1725C1A
SubcategoryThermostatic Manifold Mixing Stations
TypeLow Temperature
Weight4.1 LB
Width16.25"
Instruction Sheet
