category:
Air and Dirt Separators and Air Vents
height:
13.5"
instruction_sheet:
https://www.caleffi.com/sites/default/files/media/external-file/38557_NA.pdf
length:
42"
manufacturer:
Caleffi
mpn:
546060A
subcategory:
DISCALDIRT® Air and Dirt Separators
technical_brochure:
https://www.caleffi.com/sites/default/files/media/external-file/01123_NA.pdf
type:
DISCALDIRT® (ANSI Flange)
weight:
12.7 LB
width:
20.5"
Instruction Sheet Product Description

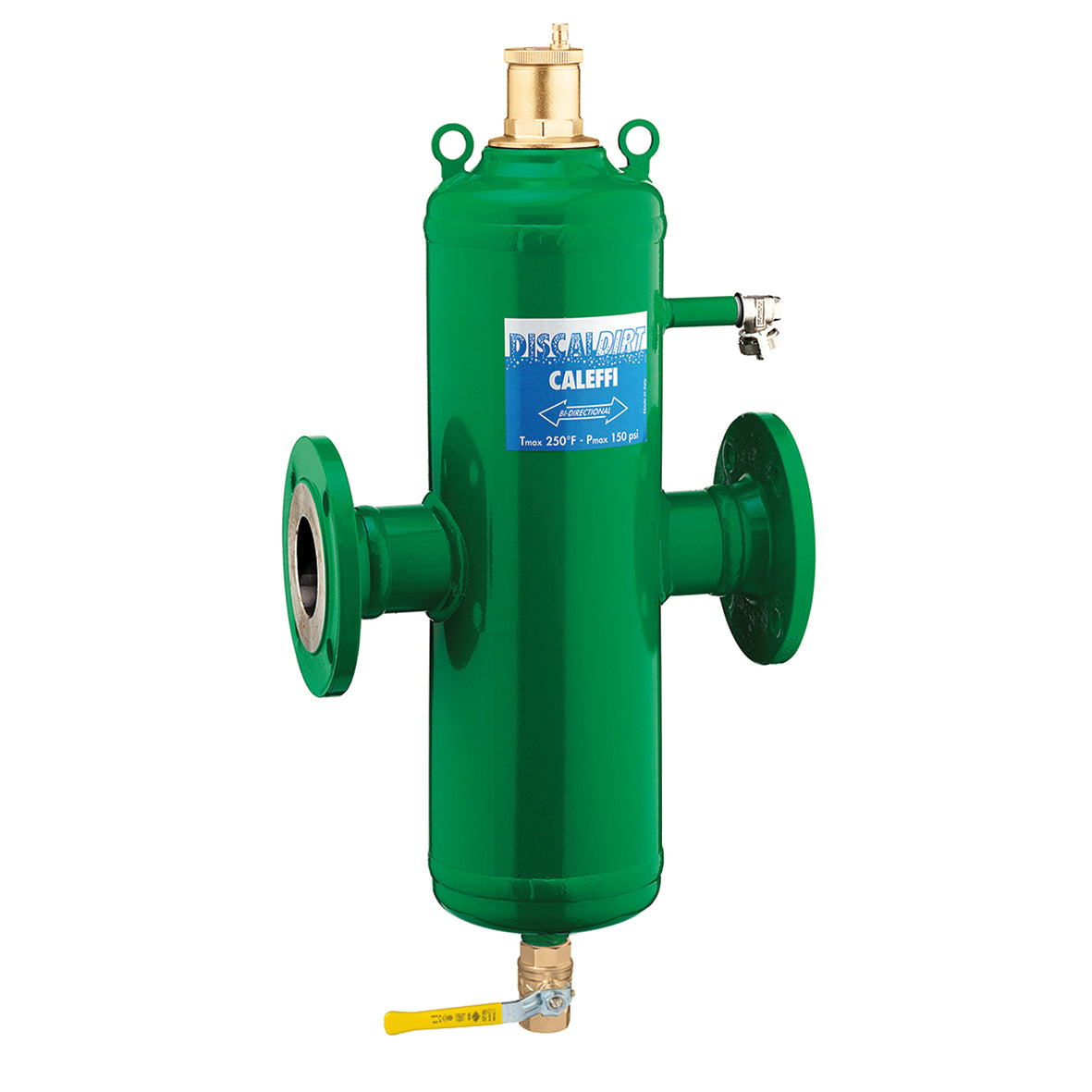

Caleffi - 546060A Air Dirt separator (ANSI flange 2" - 5") Complete with side drain valve (538402 FD), drain valve (NA39753). Stainless steel float guide pin and linkage. Stainless steel mesh internal element. 1" NPT threaded bottom drain connection.
Additional Information
Connection 2 1/2" Ansi 150 Flange
Maximum Working Pressure 150 Psi
Medium Temperature Range 32–270 °F
Material Steel
