category:
Distribution Manifolds and Mixing Stations
height:
5.25"
instruction_sheet:
https://www.caleffi.com/sites/default/files/media/external-file/68367_NA.pdf
length:
40.5"
manufacturer:
Caleffi
mpn:
6686L5S1A
subcategory:
Assemblies
technical_brochure:
https://www.caleffi.com/sites/default/files/media/external-file/01170_NA_0.pdf
type:
TwistFlow™
weight:
5.8 LB
width:
17.75"
Instruction Sheet Product Description

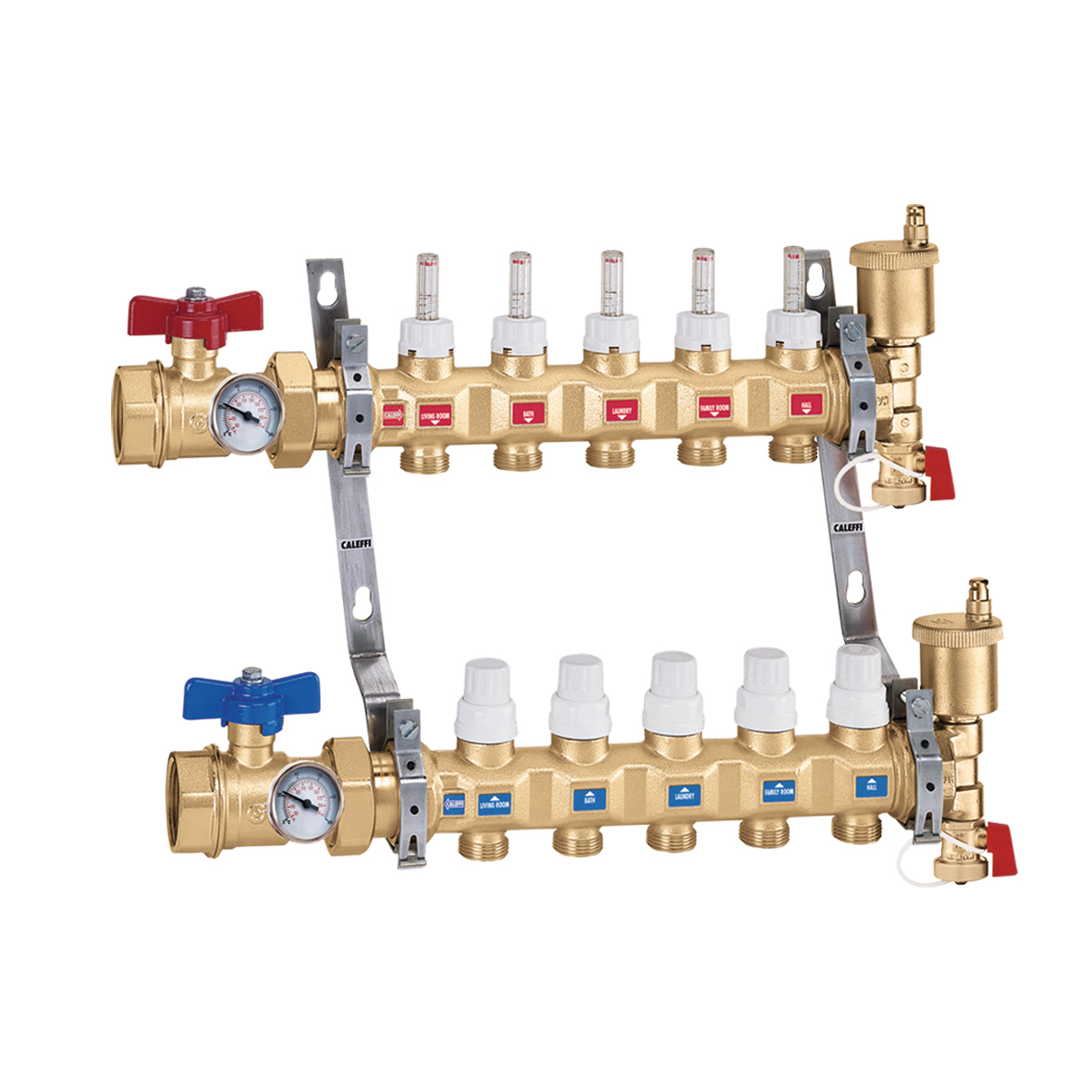

Caleffi - 6686L5S1A Assembly Complete with built-in sight flow meters and balancing valves with 2" gauges 30—210°F scale. Pre-assembled radiant manifold consisting of return distribution manifold complete with built-in shut-off valves suitable for thermo-electric actuator and supply distribution manifold. 1" or 1 1/4" NPT inlet ball valves. Temperature gauges. Loop
Additional Information
Cv 123 (Combined Supply Return Ports)
Connection 1" Outlet
Connection 3/4" M, 10 Outlets
Maximum Working Pressure 150 Psi
Medium Temperature Range 32–180 °F (Without Ice)
Outlet Center Distance 2 "
Flow Meter Scale 1/4–2 Gpm
