category:
Air and Dirt Separators and Air Vents
height:
40"
instruction_sheet:
https://www.caleffi.com/sites/default/files/media/external-file/38557_NA.pdf
length:
108"
manufacturer:
Caleffi
mpn:
NA546200AM
subcategory:
DISCALDIRTMAG® Air and Magnetic Dirt Separators
technical_brochure:
https://www.caleffi.com/sites/default/files/media/external-file/01287_NA.pdf
type:
DISCALDIRTMAG® (ANSI Flange)
weight:
74.2 LB
width:
48"
Instruction Sheet Product Overview

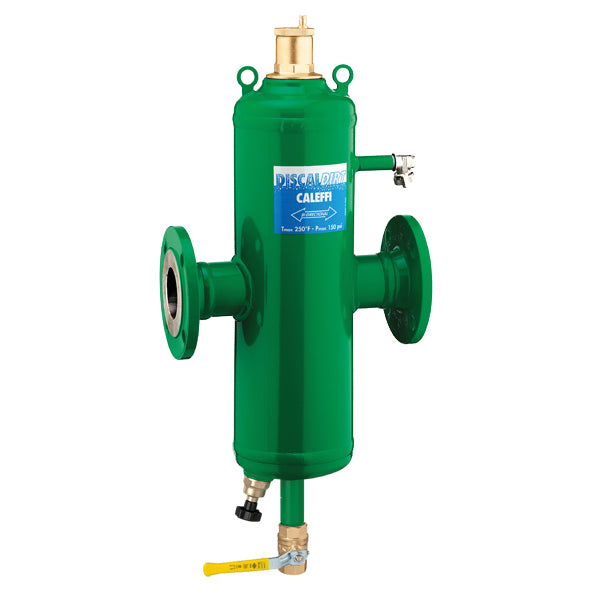

Air & Dirt separator with magnets (ASME, 2" - 14") ASME registered. CRN registered thru 12". Complete with drain valve NA39753 (2—6" sizes), NA59600 (8—14" sizes). Stainless steel float guide pin and linkage. Stainless steel mesh internal element. 1" (2—6" sizes) and 2" (8—14" sizes) threaded NPT bottom drain connection.
Additional Information
Ferrous Impurities Separation Efficiency Up To 100% Consult Factory For 14"
Connection 8'' Ansi 150 Flange, Asme & Crn
Maximum Working Pressure 150 Psi
Medium Temperature Range 32–270 °F
Material Steel
