Caleffi

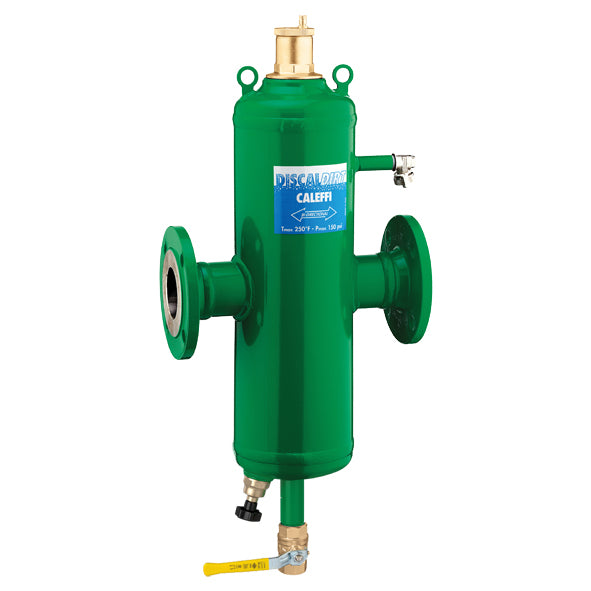

Caleffi NA546250AM DISCAL DIRTMAG™ Air & Dirt Separator w/ Magnet 10" Flange ASME

Caleffi NA546250AM DISCAL DIRTMAG™ Air & Dirt Separator w/ Magnet 10" Flange ASME

Back Order

Get it by Sun, May 25 - Fri, May 30

SKU kpi094-NA546250AM

0
(0 rating)
$26,173.33 USD
$26,173.33 USD
Sale Sold out
Shipping calculated at checkout.
 More payment options
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Air and Dirt Separators and Air Vents
height: 40"
length: 112"
manufacturer: Caleffi
mpn: NA546250AM
subcategory: DISCALDIRTMAG® Air and Magnetic Dirt Separators
type: DISCALDIRTMAG® (ANSI Flange)
weight: 116.5 LB
width: 44"

Product Description

Caleffi - NA546250AM Air Dirt separator with magnets (ASME, 2" - 14") ASME registered. CRN registered thru 12". Complete with drain valve NA39753 (2—6" sizes), NA59600 (8—14" sizes). Stainless steel float guide pin and linkage. Stainless steel mesh internal element. 1" (2—6" sizes) and 2" (8—14" sizes) threaded NPT bottom drain connection.

Additional Information

Ferrous Impurities Separation Efficiency Up To 100% Consult Factory For 14"
Connection 10'' Ansi 150 Flange, Asme Crn
Maximum Working Pressure 150 Psi
Medium Temperature Range 32–270 °F
Material Steel
