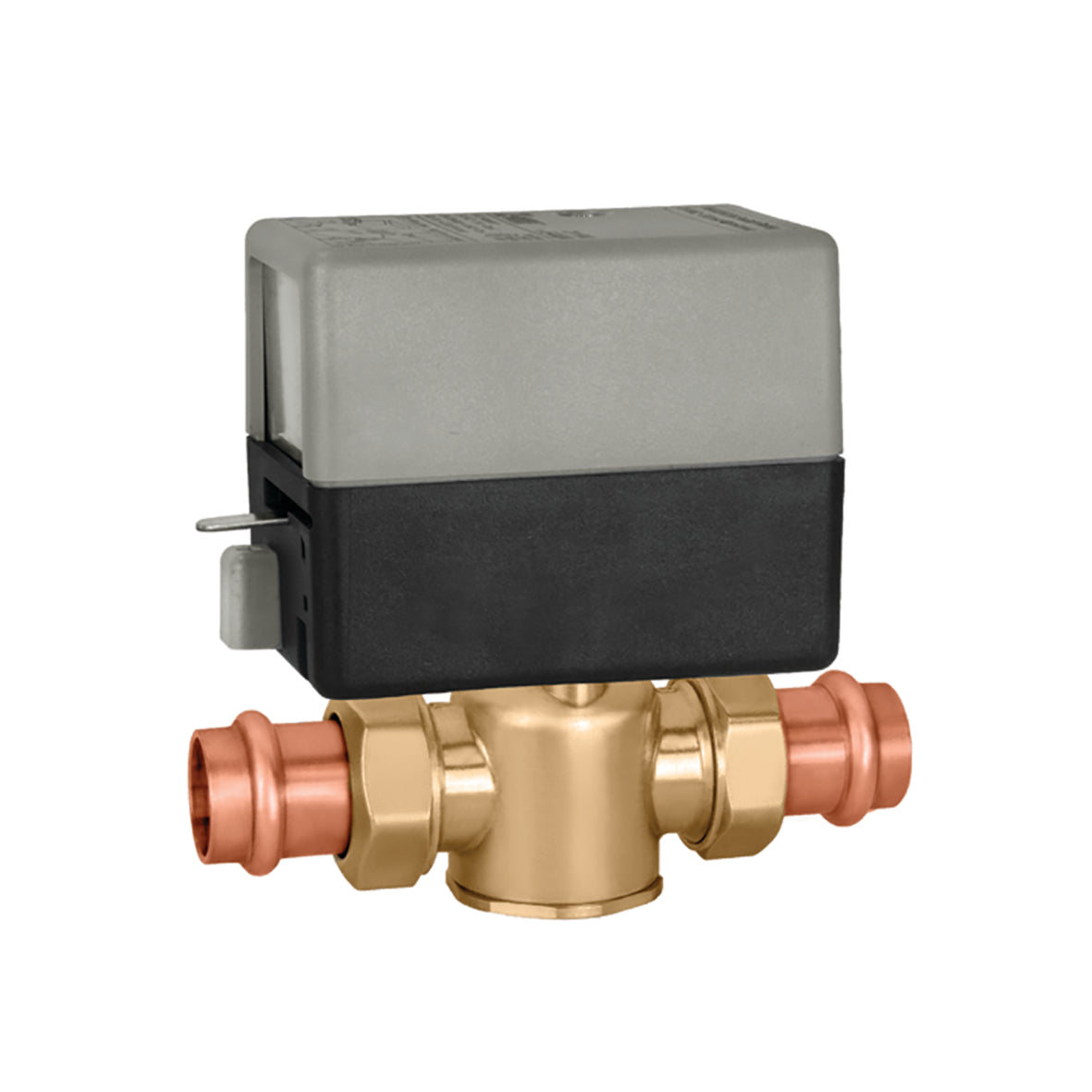

Caleffi Z46P Z-One™ 2-Way,NCw/ MS,24V,1",Union Press,7.5Cv

Caleffi Z46P Z-One™ 2-Way,NCw/ MS,24V,1",Union Press,7.5Cv

Back Order

Get it by Mon, Jun 02 - Sat, Jun 07

SKU kpi094-Z46P

0
(0 rating)
$178.00 USD
$178.00 USD
Sale Sold out
Shipping calculated at checkout.
 More payment options
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Zone Valves, Controls and Coil Kits
height: 4.5"
length: 3.5"
manufacturer: Caleffi
mpn: Z46P
subcategory: Motorized Zone Valves
type: Z-one™ 2-way
weight: 0.5 LB
width: 3.25"

Product Description

Caleffi - Z46P 2-way motorized zone valve (press) With auxiliary microswitch.UL873, cULus Listed CE. UL 1995 sec. 18 air plenums and ducts.U.S. Patent 7,048,251. Auxiliary micro-switch.

Additional Information

Overall Length 5-5/8" Spring Return
Connection 1", Press Union
Maximum Working Pressure 300 Psi
Medium Temperature Range 32–240 °F
Electric Supply 24 V (Ac)
Power Consumption 7 Va
Auxiliary Microswitch Contact Rating (24 V) 04 A
