Caleffi

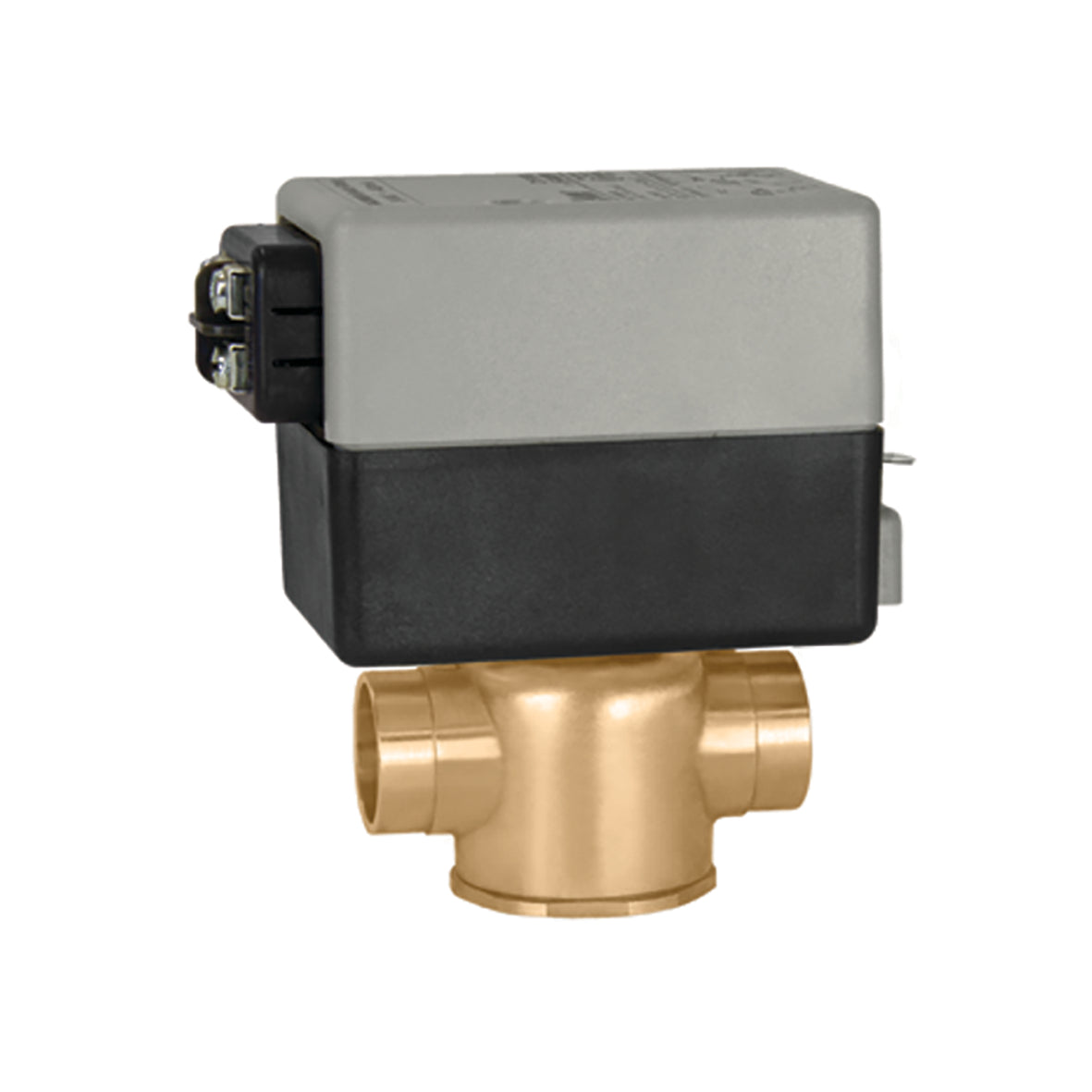

Caleffi Z50F Z-One™ 2-Way,NC TERMINAL Block, w/ MS,24V,Inverted Flare, Inverted Flare,3.5Cv w/ fittings

Caleffi Z50F Z-One™ 2-Way,NC TERMINAL Block, w/ MS,24V,Inverted Flare, Inverted Flare,3.5Cv w/ fittings

Dropship

Get it by Sat, Dec 14 - Thu, Dec 19

SKU kpi094-Z50F

$133.33 USD
$133.33 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Zone Valves, Controls and Coil Kits
height: 4.5"
instruction_sheet: https://www.caleffi.com/sites/default/files/media/external-file/NA10073.pdf
length: 3.5"
manufacturer: Caleffi
mpn: Z50F
subcategory: Motorized Zone Valves
technical_brochure: https://www.caleffi.com/sites/default/files/media/external-file/01115_NA_0.pdf
type: Z-one™ 2-way
weight: 0.5 LB
width: 3.25"

Product Description

Caleffi - Z50F 2-way motorized zone valve (with screw terminal connection) With auxiliary microswitch.UL873, cULus Listed CE. UL 1995 sec. 18 air plenums and ducts.U.S. Patent 7,048,251.

Additional Information

Normally Closed Actuator Z151000 Spring Return Auxiliary Micro-Switch
Connection 3/4"
Maximum Working Pressure 300 Psi
Medium Temperature Range 32–240 °F
Electric Supply 24 V (Ac)
Power Consumption 7 Va
Auxiliary Microswitch Contact Rating (24 V) 0
