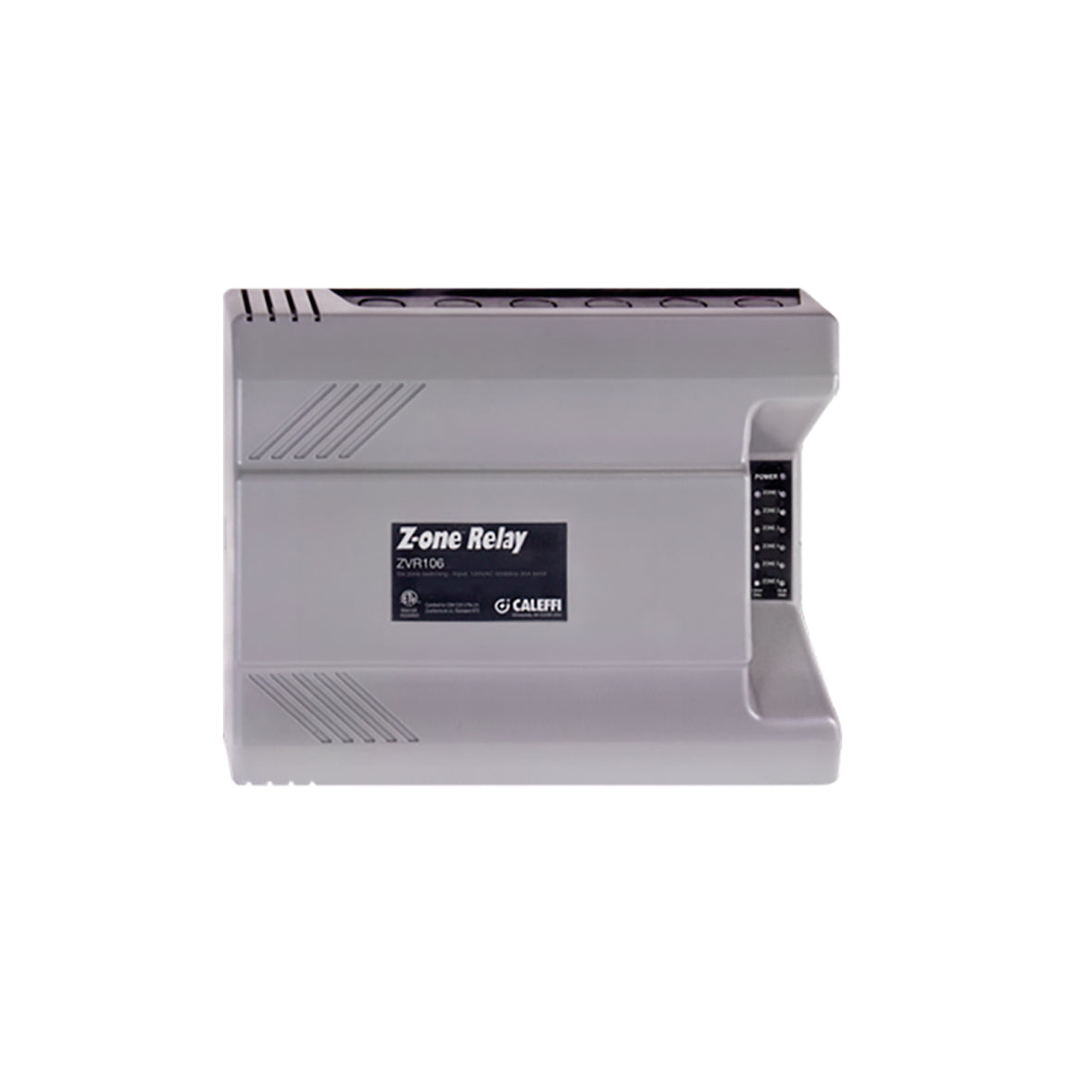

Caleffi ZVR106 Zone Valve Relay-6 Zone

Caleffi ZVR106 Zone Valve Relay-6 Zone

Back Order

Get it by Tue, May 27 - Sun, Jun 01

SKU kpi094-ZVR106

0
(0 rating)
$216.67 USD
$216.67 USD
Sale Sold out
Shipping calculated at checkout.
 More payment options
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Zone Valves, Controls and Coil Kits
height: 3.5"
length: 12.5"
manufacturer: Caleffi
mpn: ZVR106
subcategory: Z-one™ Zone Controls
type: Valve Zone Controls
weight: 1.4 LB
width: 12.25"

Product Description

Caleffi - ZVR106 Relay (multi-zone) The ZVR series is a multi-zone valve relay and boiler operating control for multiple zone hydronic heating systems. The ZVR series interfaces with low voltage thermostats or any other low voltage controllers having a switching action. The ZVR series controls up to 3, 4, 5 or 6 zones, depending on model selected. In addition, a system circulator pump and secondary pump is turned on whenever any zone calls for heat. LED indicators provide functional status and easy system troubleshooting. The ZVR series is a perfect match with Caleffi’s Z-one™ motorized zone valves.

Additional Information

Resettable Fuse Automatic
Transformer Voltage 24 Vac
Maximum Transformer Load 40 Va (Zvr103/4), 80 Va (Zvr106)
Switch Rating 20A Max
Combined Electrical Switch Rating Pumps 120 Vac, 5A Each
Dry Contact Rating Aux, Xx, Zone1
E/S120 Vac, 2
