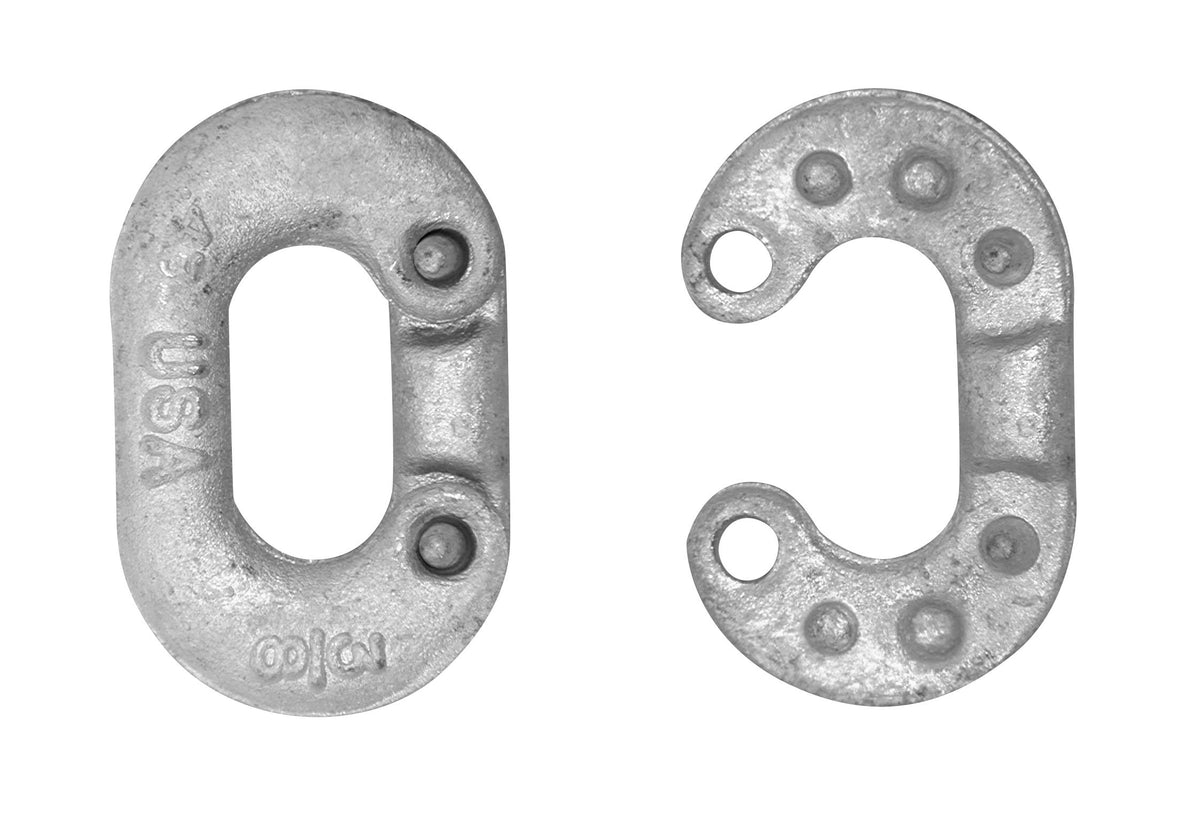

Campbell 5200834 1/2" Connecting Link, Forged Carbon Steel, Galvanized, 10 Pcs per Box

Campbell 5200834 1/2" Connecting Link, Forged Carbon Steel, Galvanized, 10 Pcs per Box

Dropship

SKU kpi263-5200834

GTIN : 020418074769

$55.24 USD
$55.24 USD
Sale Sold out
Shipping calculated at checkout.
No offers currently available
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products

Product Description

Features
  • Drop-Forged Heat-Treated Carbon or Alloy Steel
  • Standard Finish is Self-Colored or Galvanized to Meet ASTM A-153 Specifications
  • 4 to 1 Design Factor
  • For Proper Closure, Peen the Prongs to Fill the Hole of the Mating Half as Much as Possible
  • Meets Design Requirements of Federal Specification RR-C-271D, Type II
  • Make Sure the Connecting Link Used is the Same Size as the Components Being Joined. e.g., a 3/8 in. Connecting Link is Used with 3/8 in. Chain
  • Any Assembly Made Using Connecting Links Should be Rated at the Working Load Limit of the Weakest Component.
  • The Working Load Limit of Connecting Links is Based on a Straight Line Pull. Any Side or Shock Loading Will Significantly Reduce the Actual Working Load Limit.
  • NEVER Re-Use a Connecting Link
  • DO NOT EXCEED THE WORKING LOAD LIMIT
Specifications
  • UPC - 020418074769
  • Foreign Trade Code - 7315900000
  • Set - No
  • Packaging - Boxed
  • Finish - Galvanized
  • Weight Each (lb) - 0.39 lb
  • Working Load Limit - 4750 lb
  • Weight Per 100 Pieces (lb) - 39
  • A Dimension - 1-23/32
  • B Dimension - 2-11/16 in
  • C Dimension - 21/32 in
  • D Dimension - 1-7/16 in
  • Material - Carbon Steel
