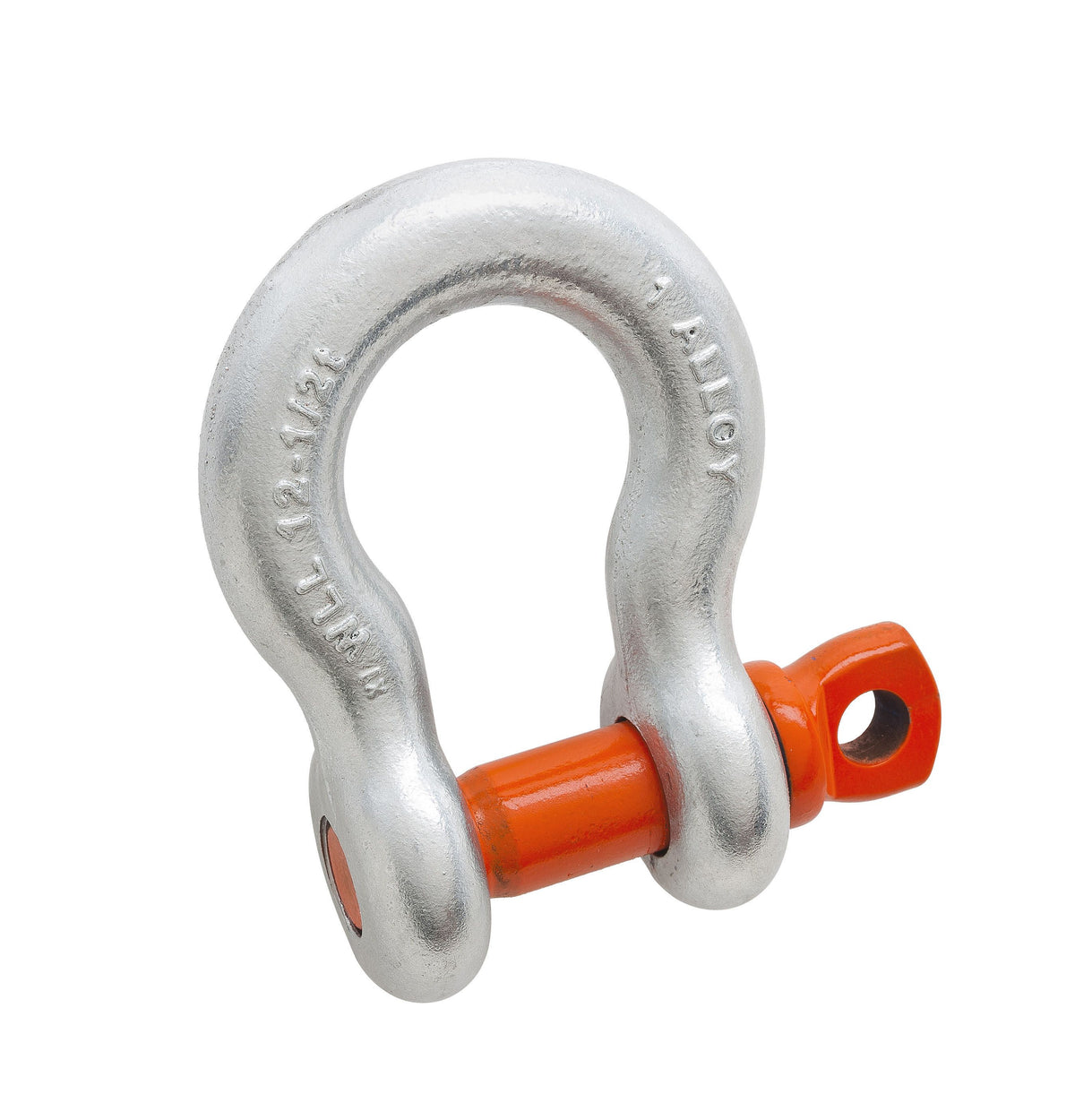

Campbell 5412295 1-3/8" Alloy Anchor Shackle, Screw Pin, Forged Alloy, Galvanized

Campbell 5412295 1-3/8" Alloy Anchor Shackle, Screw Pin, Forged Alloy, Galvanized

Dropship

SKU kpi263-5412295

GTIN : 020418267444

MPN : 5412295

$479.77 USD
$479.77 USD
Sale Sold out
Shipping calculated at checkout.
No offers currently available
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
Features
  • Shackle Bodies Are Drop-Forged Alloy Steel
  • Galvanized to Meet ASTM A-153 Specifications
  • A-419-G Shackles Meet the Design Requirements of Federal Specification RR-C-271, Type IVA, Grade B, Class 2
  • Working Load Limit, Size, Manufacture Name, Date Code, "CE" Mark, and USA Permanently Marked on Each Shackle
  • Statistically Tested for Impact Resistance, Tensile Strength, Hardness, Ductility and Fatigue
  • 419 Series Shackles Meet or Exceed All Manufacturing Requirements of the ASME B30.26 ”Rigging Hardware”. These Include the Material Ductility Requirement (Section 26-1.1.2), the Design Factor Requirement (Section 26.1.2), the Identification Requirement (Section 26-1.5.1), and the Effective Temperature Range (Section 26-1.6.1). The Shackles Can Be Proof Tested in Accordance with Section 26-1.4 Upon Request
  • Certification Available Upon Request
  • 5 to 1 Design Factor
  • Pins and Bolts Are Heat-Treated and Made of Alloy Steel and Painted Orange
  • DO NOT EXCEED THE WORKING LOAD LIMIT
Specifications
  • UPC - 020418267444
  • Foreign Trade Code - 7326908688
  • Set - No
  • Packaging - Boxed
  • Weight Each (lb) - 13.30 lb
  • Weight Per 100 Pieces (lb) - 1330
  • B Dimension - 1-1/2 in
  • C Dimension - 5-1/4 in
  • D Dimension - 2-1/4 in
  • E Dimension - 3-5/8 in
  • F Dimension - 3-5/16 in
  • Working Load Limit Metric Ton - 21 t
Age group18+
CategoryForged Fittings
Country of originUS
GenderUnisex
Height3.5"
Length9"
ManufacturerCrescent
Mpn5412295
SubcategoryShackles
Sub brandCampbell
TypeShackles
Upc020418267444
Weight13 lbs
Width7.5"
