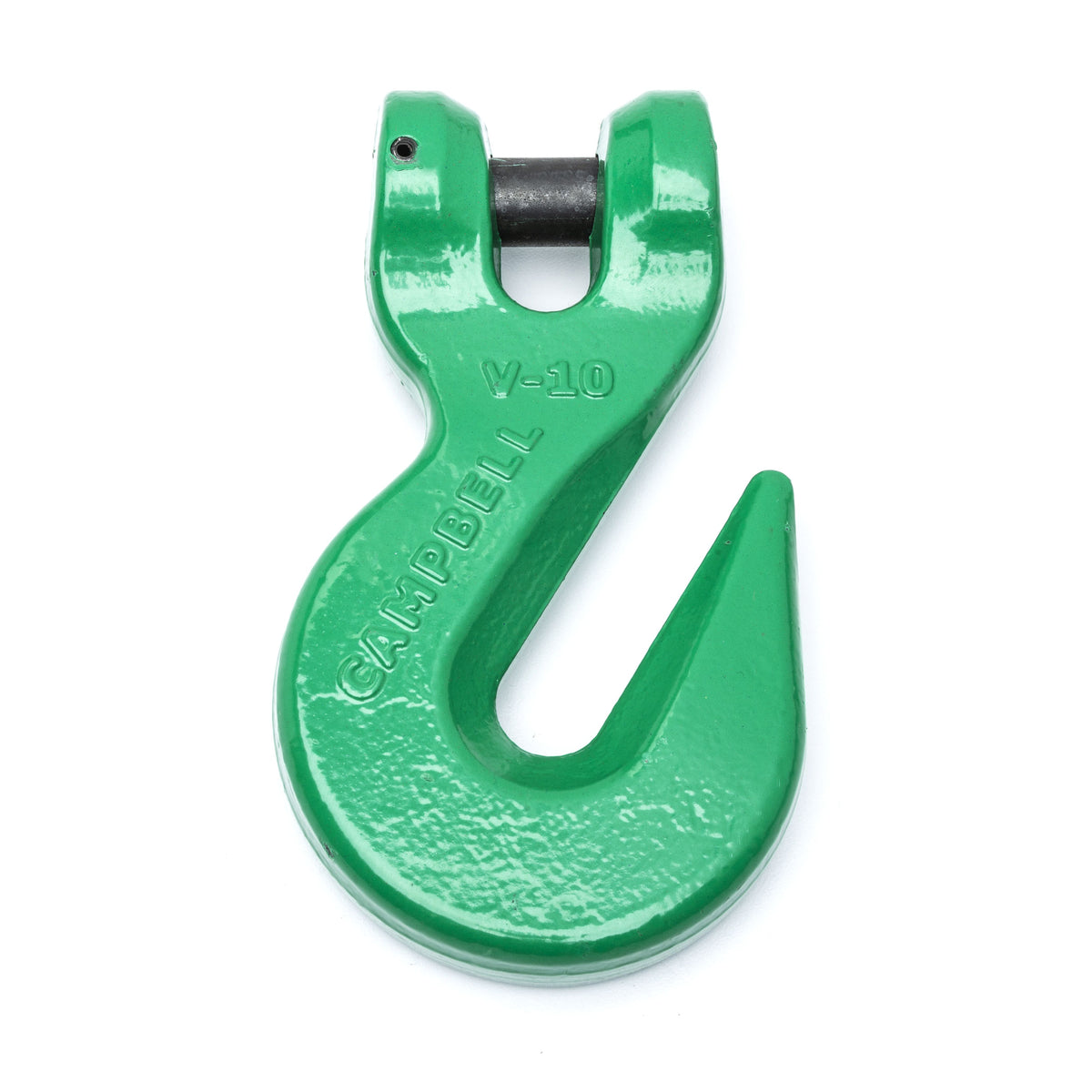

Campbell 5724815 1/2" Quik-Alloy® Grab Hook, Grade 100, Painted Green

Campbell 5724815 1/2" Quik-Alloy® Grab Hook, Grade 100, Painted Green

Dropship

SKU kpi263-5724815

GTIN : 020418182624

$171.46 USD
$171.46 USD
Sale Sold out
Shipping calculated at checkout.
No offers currently available
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products

Product Description

Features
  • For Use with Grade 80/100 Chain Slings
  • 4 to 1 Design Factor
  • Meet or Exceed All Requirements of ASME B30.9 and B30.10
  • 100% Proof Tested in Accordance with ASTM A952
  • Additionally Hallmarked with "USA" and Date Code
  • Made in the USA
  • Note: Use of Chain in a Grab Hook as a Shortening Application May Result in a 20% WLL Reduction
  • DO NOT EXCEED THE WORKING LOAD LIMIT
Specifications
  • UPC - 020418182624
  • Foreign Trade Code - 7326908688
  • Set - No
  • Packaging - Boxed
  • Weight Each (lb) - 3.50 lb
  • Working Load Limit - 15000 lb
  • A Dimension - 9/16
  • D Dimension - 1-1/2 in
  • E Dimension - 5/8 in
  • Grade - 100
  • R Dimension - 3-23/32 in
  • OAW - 3-1/2 in
  • Load Pin Diameter - 5/8 in
  • HP - 2 in
  • T Dimension - 21/32 in
  • W Dimension - 15/16 in
  • Chain Size - 1/2
