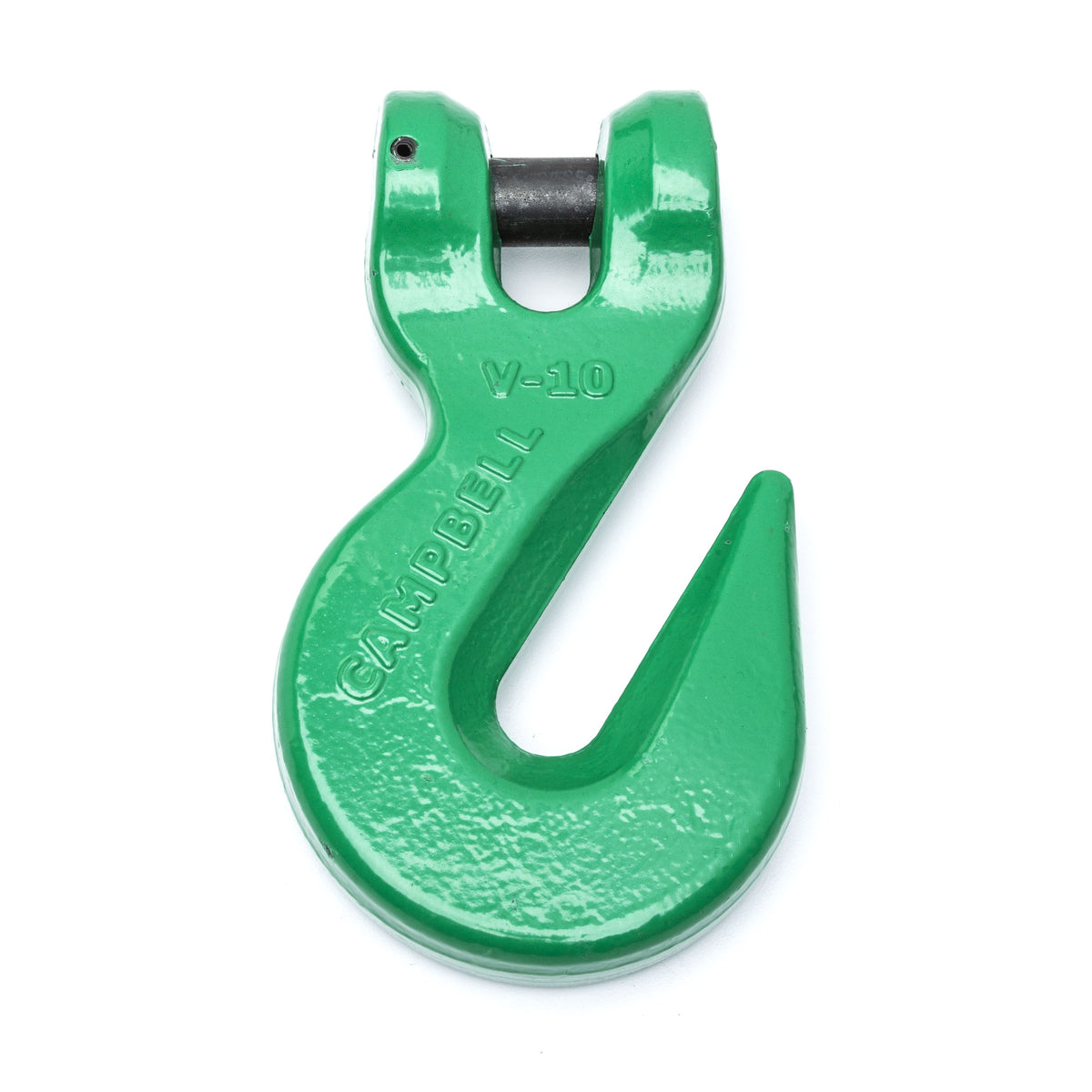

Campbell 5725015 5/8" Quik-Alloy® Grab Hook, Grade 100, Painted Green

Campbell 5725015 5/8" Quik-Alloy® Grab Hook, Grade 100, Painted Green

Dropship

SKU kpi263-5725015

GTIN : 020418182631

$229.81 USD
$229.81 USD
Sale Sold out
Shipping calculated at checkout.
No offers currently available
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products

Product Description

Features
  • For Use with Grade 80/100 Chain Slings
  • 4 to 1 Design Factor
  • Meet or Exceed All Requirements of ASME B30.9 and B30.10
  • 100% Proof Tested in Accordance with ASTM A952
  • Additionally Hallmarked with "USA" and Date Code
  • Made in the USA
  • Note: Use of Chain in a Grab Hook as a Shortening Application May Result in a 20% WLL Reduction
  • DO NOT EXCEED THE WORKING LOAD LIMIT
Specifications
  • UPC - 020418182631
  • Foreign Trade Code - 7326908688
  • Set - No
  • Packaging - Boxed
  • Weight Each (lb) - 5.40 lb
  • Working Load Limit - 22600 lb
  • A Dimension - 23/32
  • D Dimension - 1-3/4 in
  • E Dimension - 3/4 in
  • Grade - 100
  • R Dimension - 4-7/16 in
  • OAW - 4-1/8 in
  • Load Pin Diameter - 3/4 in
  • HP - 2-5/8 in
  • T Dimension - 25/32 in
  • W Dimension - 1-7/32 in
  • Chain Size - 5/8
