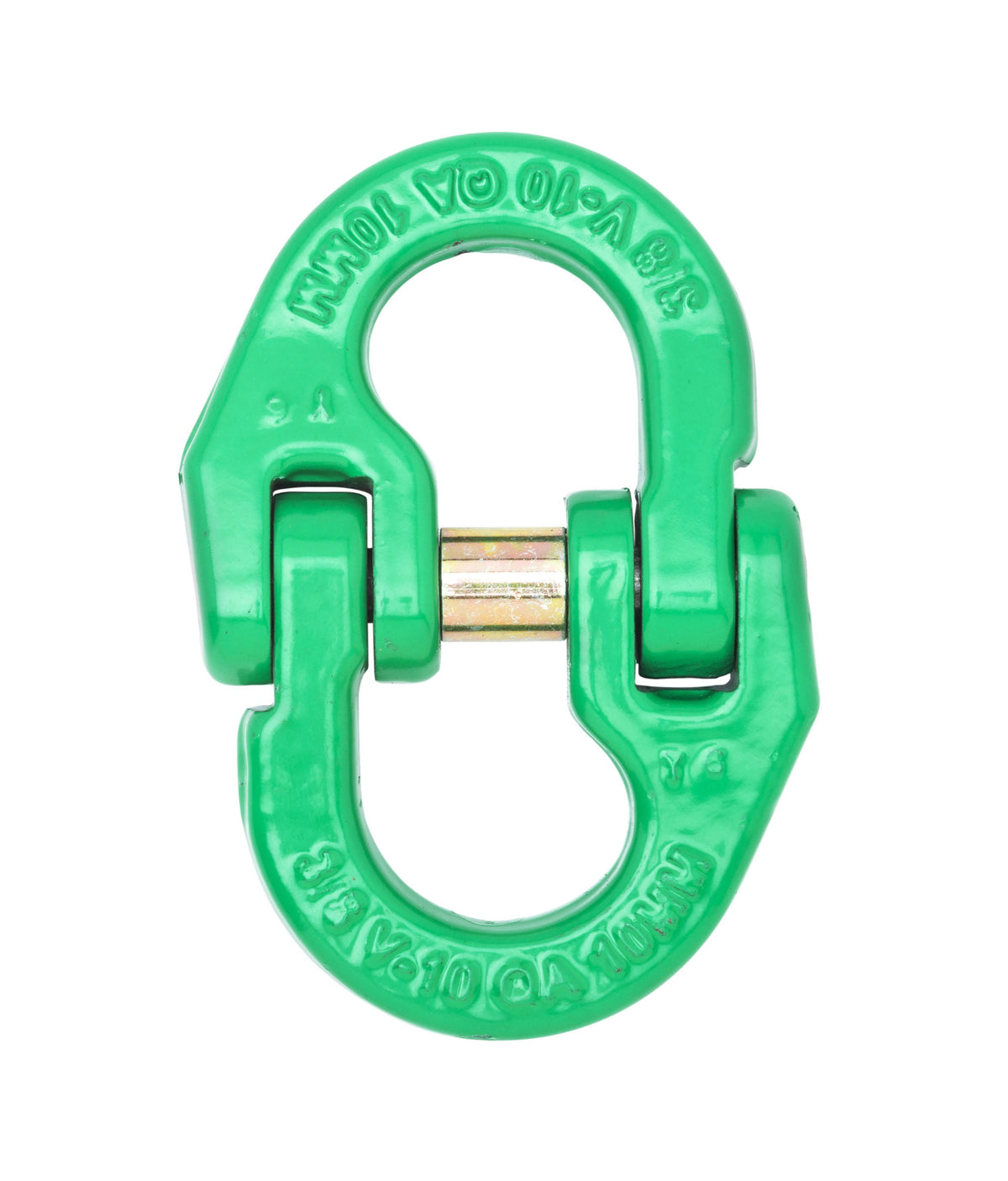

Campbell 5779165 3/4" Quik-Alloy® Coupling Link, Grade 100, Painted Green

Campbell 5779165 3/4" Quik-Alloy® Coupling Link, Grade 100, Painted Green

Dropship

SKU kpi263-5779165

GTIN : 020418182785

$254.58 USD
$254.58 USD
Sale Sold out
Shipping calculated at checkout.
No offers currently available
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products

Product Description

Features
  • For Connecting Chain to Components in the Fabrication of Chain Slings
  • For Use with Grade 80/100 Chain Slings
  • 4 to 1 Design Factor
  • Meet or Exceed All Requirements of ASME B30.9
  • 100% Proof Tested in Accordance with ASTM A952
  • 3/4" Through 1-1/4" Coupling Links Utilize A Barrel Style Oversized Retainer
  • Made in the USA
  • Per ASME B30.9, Section 9.1.3 "Mechanical Coupling Links Shall Not Be Used Within the Body of An Alloy Chain Sling to Connect Two Pieces of Chain"
  • DO NOT EXCEED THE WORKING LOAD LIMIT
Specifications
  • UPC - 020418182785
  • Foreign Trade Code - 7315900000
  • Set - No
  • Packaging - Boxed
  • Weight Each (lb) - 4.05 lb
  • Working Load Limit - 35300 lb
  • A Dimension - 15/16
  • B Dimension - 61/64 in
  • C Dimension - 4-5/8 in
  • D Dimension - 1-9/16 in
  • E Dimension - 9/16 in
  • F Dimension - 4-3/4 in
  • Grade - 100
  • Material Diameter - 1-5/8 in
  • Chain Size - 3/4
