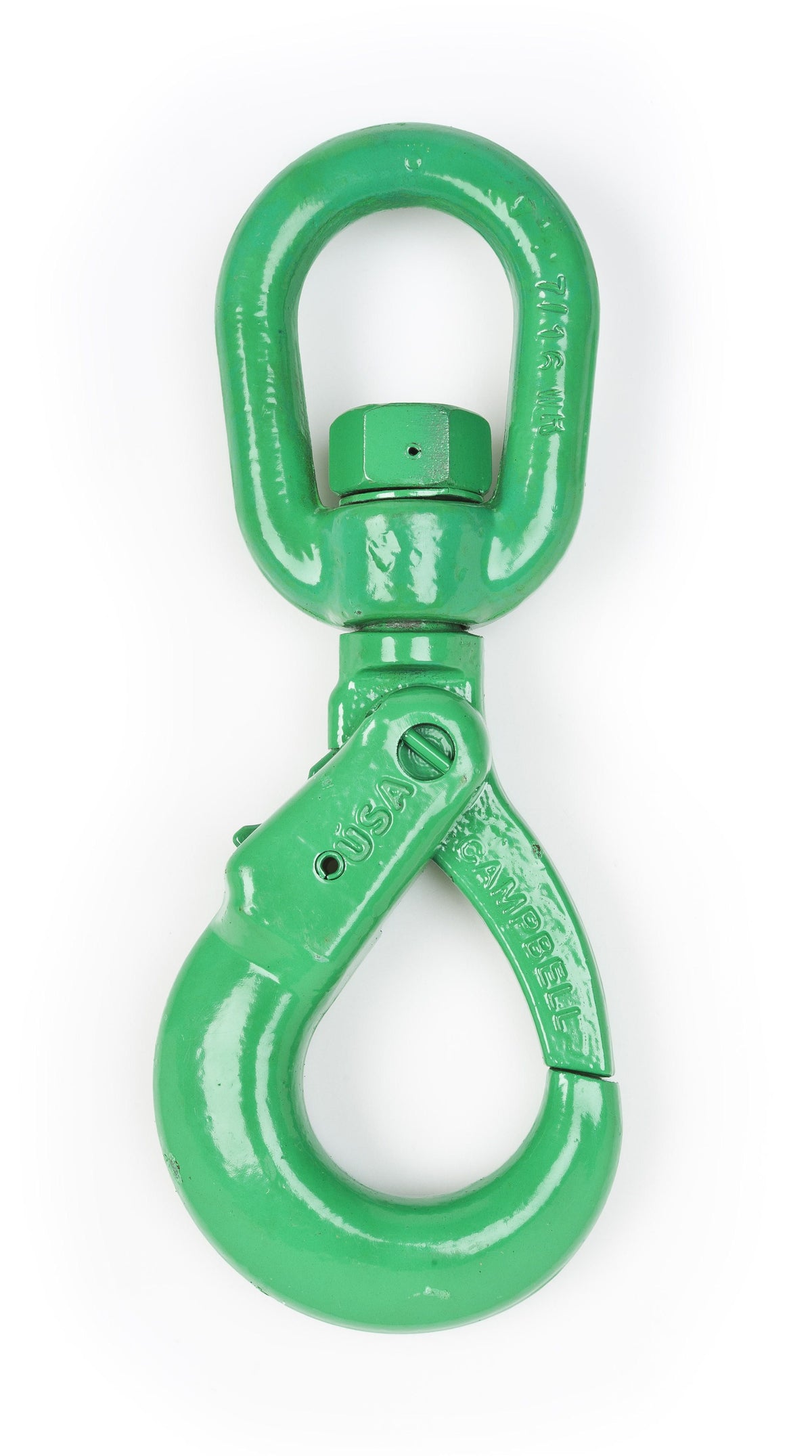

Campbell 5798895 1/2" Cam-Alloy® Swivel Self Locking Hook, Grade 100, Painted Green

Campbell 5798895 1/2" Cam-Alloy® Swivel Self Locking Hook, Grade 100, Painted Green

Dropship

SKU kpi263-5798895

GTIN : 020418226878

MPN : 5798895

$800.30 USD
$800.30 USD
Sale Sold out
Shipping calculated at checkout.
No offers currently available
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
Features
  • Meet or Exceed All Requirements of ASME B30.9 and B30.10
  • Fatigue and 100% Proof Tested in Accordance with ASTM A952
  • Additionally Hallmarked with "USA" and Date Code
  • Meets the Intent of OSHA Regulation 1926.550(g)(4)(iv)(b)
  • Latch Closes Automatically Under Load
  • Working Load Limit Rating of 5 to 1 to Meet Design Requirements of Wire Rope Slings
  • Made in the USA
  • DO NOT EXCEED THE WORKING LOAD LIMIT
  • HOOK IS NOT DESIGNED TO SWIVEL UNDER LOAD
Specifications
  • UPC - 020418226878
  • Foreign Trade Code - 7326908688
  • Set - No
  • Packaging - Boxed
  • Weight Each (lb) - 12.95 lb
  • A Dimension - 4.50
  • B Dimension - 2.50 in
  • C Dimension - 1.312 in
  • D Dimension - 1.796 in
  • E Dimension - 5.404 in
  • F Dimension - 2.25 in
  • R Dimension - 11.25 in
  • G Dimension - 1.00 in
  • H Dimension - 1.281 in
  • J Dimension - 1.75 in
  • For Wire Rope Size - 5/8 in
  • Working Load Limit 5 to 1 - 12000 lb
  • Working Load Limit 4 to 1 - 15000 lb
  • Chain Size - 1/2
Age group18+
CategoryOverhead Lifting
Country of originUS
GenderUnisex
Height2.25"
Length14"
ManufacturerCrescent
Mpn5798895
SubcategoryAlloy Self Locking Hooks
Sub brandCampbell
TypeAlloy Self Locking Hooks
Upc020418226878
Weight12.95 lbs
Width5.4"
