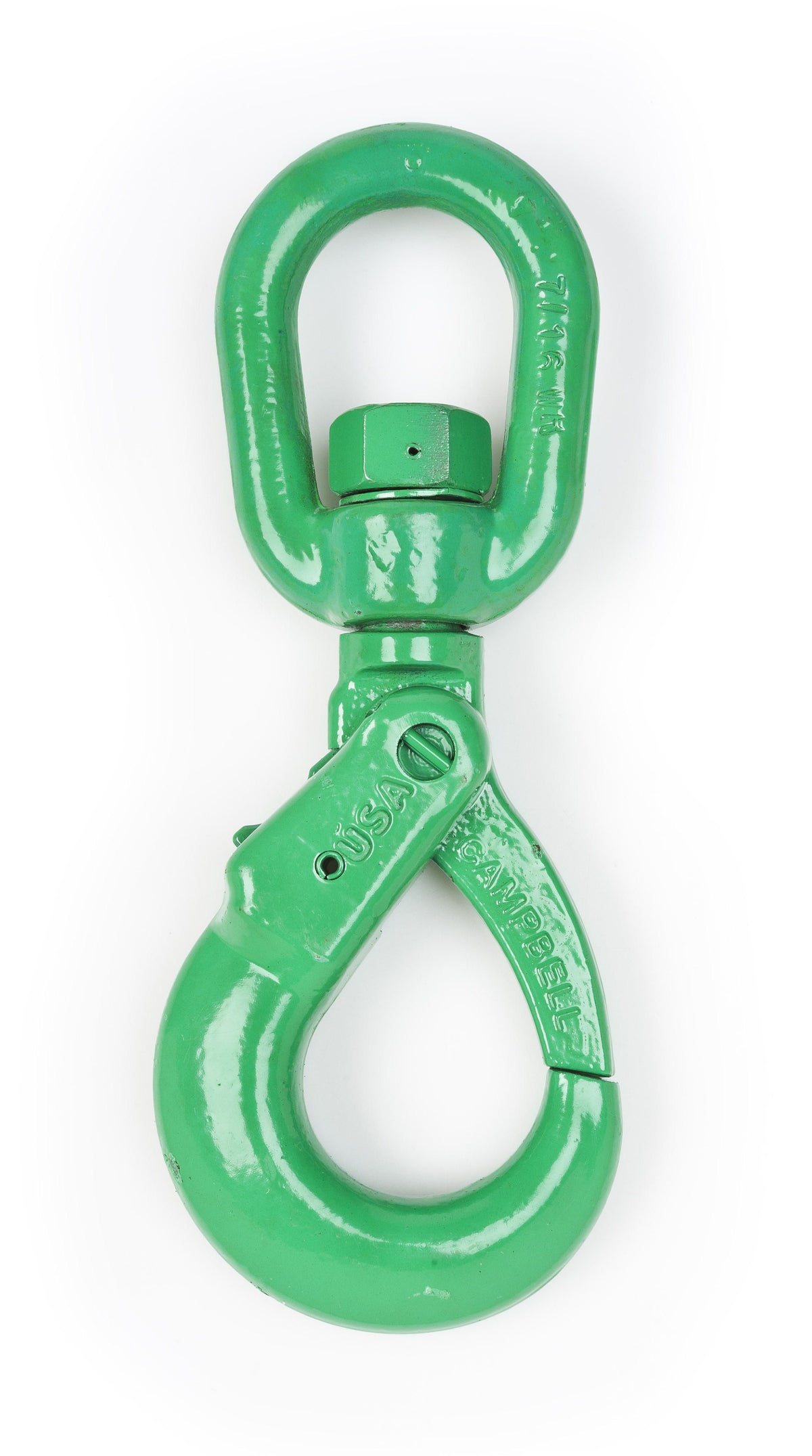

Campbell 5799095 5/8" Cam-Alloy® Swivel Self Locking Hook, Grade 100, Painted Green

Campbell 5799095 5/8" Cam-Alloy® Swivel Self Locking Hook, Grade 100, Painted Green

Dropship

SKU kpi263-5799095

GTIN : 020418226861

MPN : 5799095

$1,069.13 USD
$1,069.13 USD
Sale Sold out
Shipping calculated at checkout.
No offers currently available
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
age_group: 18+
category: Overhead Lifting
country_of_origin: US
gender: Unisex
height: 2.812"
length: 16.875"
manufacturer: Crescent
mpn: 5799095
subcategory: Alloy Self Locking Hooks
sub_brand: Campbell
type: Alloy Self Locking Hooks
upc: 020418226861
weight: 21 lbs
width: 6.5"

Product Description

Features
  • Meet or Exceed All Requirements of ASME B30.9 and B30.10
  • Fatigue and 100% Proof Tested in Accordance with ASTM A952
  • Additionally Hallmarked with "USA" and Date Code
  • Meets the Intent of OSHA Regulation 1926.550(g)(4)(iv)(b)
  • Latch Closes Automatically Under Load
  • Working Load Limit Rating of 5 to 1 to Meet Design Requirements of Wire Rope Slings
  • Made in the USA
  • DO NOT EXCEED THE WORKING LOAD LIMIT
  • HOOK IS NOT DESIGNED TO SWIVEL UNDER LOAD
Specifications
  • UPC - 020418226861
  • Foreign Trade Code - 7326908688
  • Set - No
  • Packaging - Boxed
  • Weight Each (lb) - 21.00 lb
  • A Dimension - 5.625
  • B Dimension - 3.50 in
  • C Dimension - 1.50 in
  • D Dimension - 2.169 in
  • E Dimension - 6.50 in
  • F Dimension - 2.375 in
  • R Dimension - 13.438 in
  • G Dimension - 1.25 in
  • H Dimension - 1.50 in
  • J Dimension - 2.00 in
  • For Wire Rope Size - 7/8 in
  • Working Load Limit 5 to 1 - 18000 lb
  • Working Load Limit 4 to 1 - 22600 lb
  • Chain Size - 5/8
